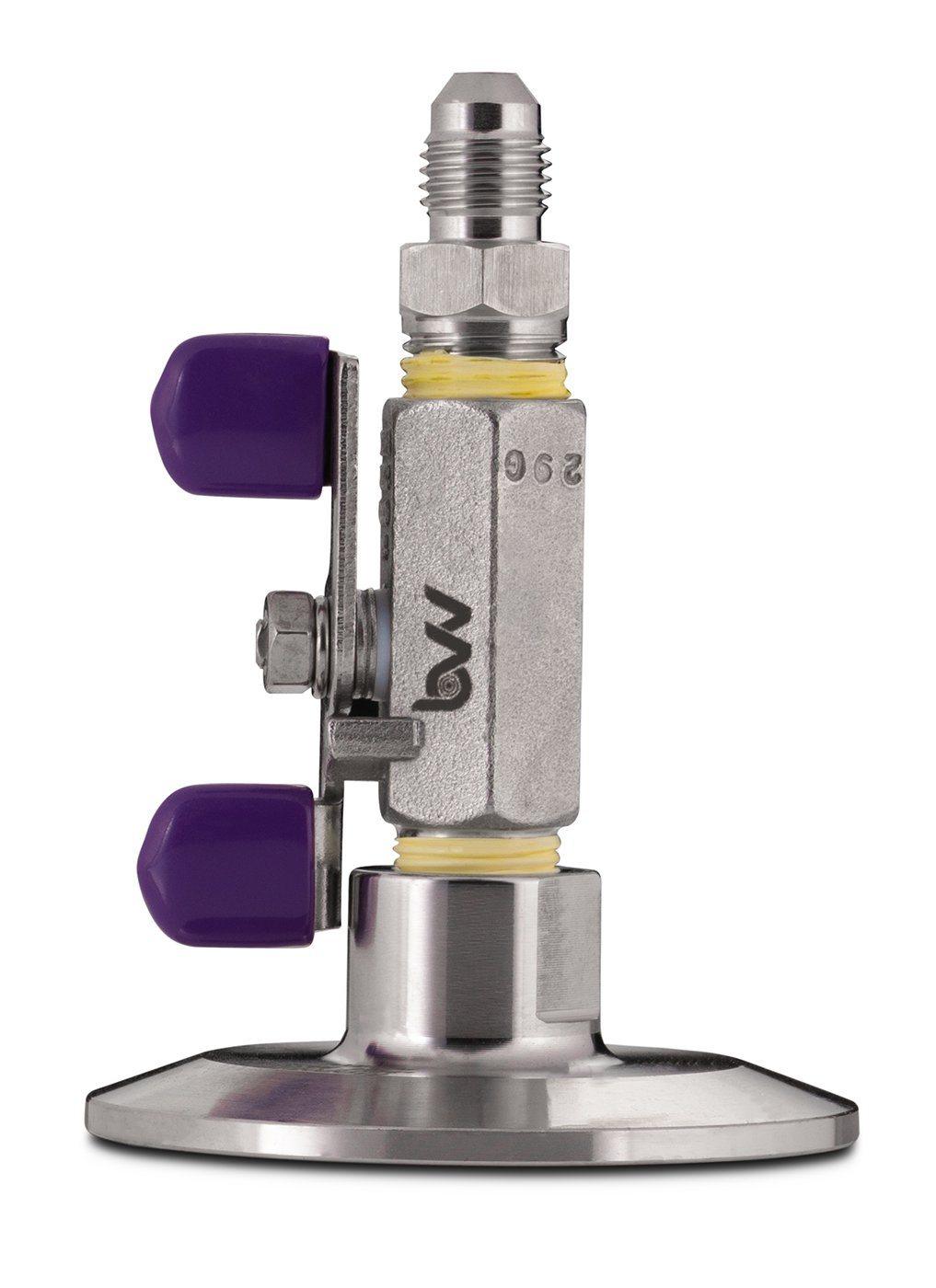

Tri-Clamp Topcap with Valve and 1/4" 37 Degree JIC Flare -40 to 230°c

Tri-Clamp / Tri Clover Top cap with Valve and 1/4" 37 Degree JIC Flare

Pre-installed 1/4" 37 Degree JIC Flare and 304 stainless steel ball valve on a Tri-Clamp endcap. These endcaps and valves and nitrogen tested for leaks to ensure safe usage of any extraction system. Flare endcaps are useful when connecting PTFE lined stainless steel braided hoses to a system because the flared connection type requires NO PTFE tape to create a seal, unlike many threaded connections.

Specifications:

• 304 Stainless Steel Tri-Clamp Endcap
• 304 Stainless Steel Heavy Duty Ball Valve -40 to 230C (1/4" MNPT/FNPT Connections)
• 304 Stainless Steel 1/4" 37 Degree JIC Flare
• Pre-Assembled and Nitrogen Tested for Leaks at Best Value Vacs

Tri-Clamp Sizes Available:

• 1.5"
• 2"
• 3"
• 4"
• 6"
