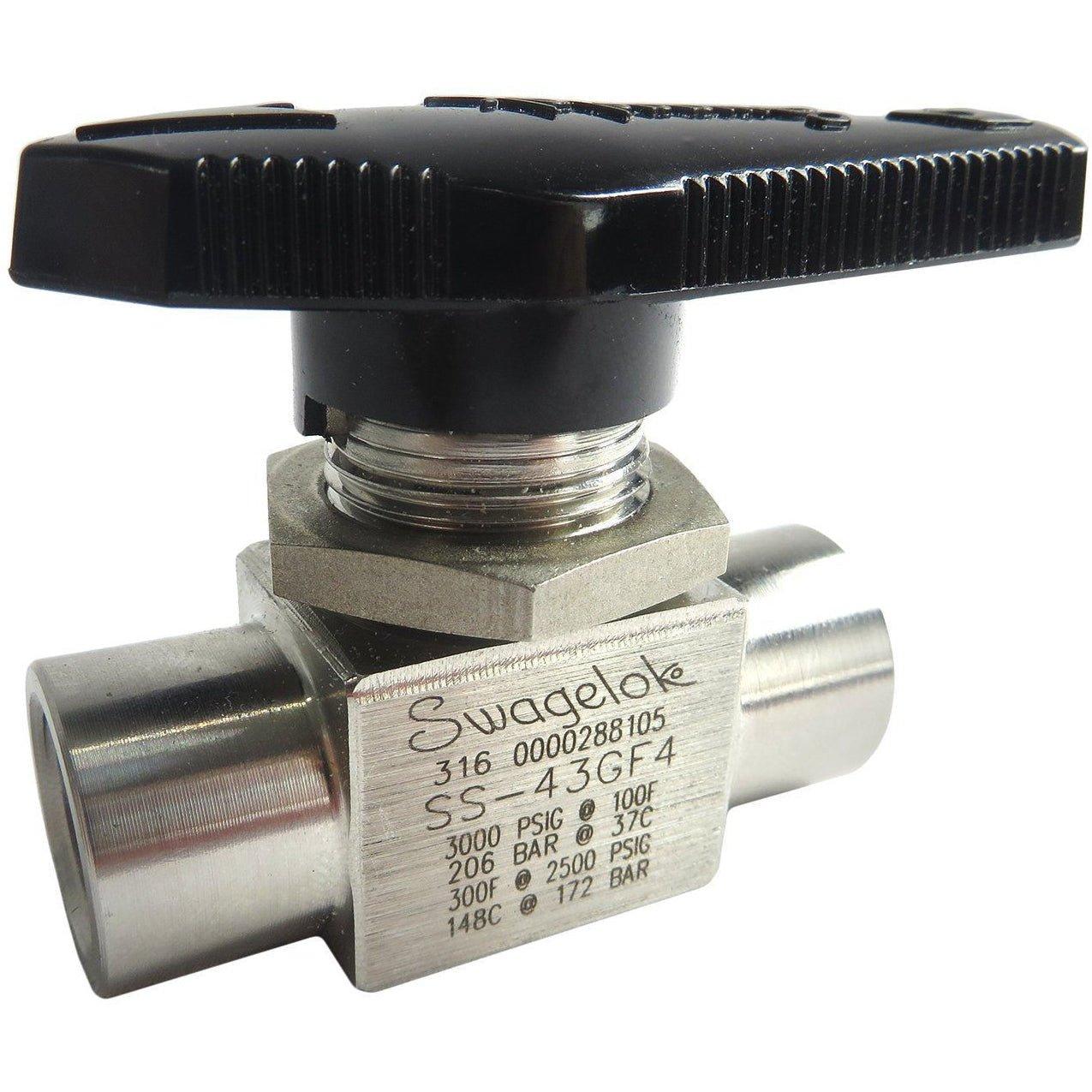

Swagelok 1/4" FNPT 316SS Ball Valve
This 316SS ball valve can be used in a wide range of applications and contains a leak-tight shutoff that significantly reduces potential leaks. Ball valves are designed to control fugitive emissions and leakage and have an overall low cost of ownership.
Key Features:
- User-friendly operating temperature rating
- Leak resistant with increased thermal performance
- Can be configured or manufactured to a wide range of applications
| Specifications | |
|---|---|
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4" |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/4" |
| Connection 2 Type | Female NPT |
| Flow Path | Standard (2-way) |
| Handle Type | Nylon-Stainless Steel Insert |
| Flow Pattern | 2-way, shutoff, straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | Dow M11 |
| Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR |
| Orifice | 0.187 in /4.7 mm |
| Packing | Modified PTFE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 3000 PSIG @ 100°F /206 BAR @ 37°C |
