Summit Research Tech

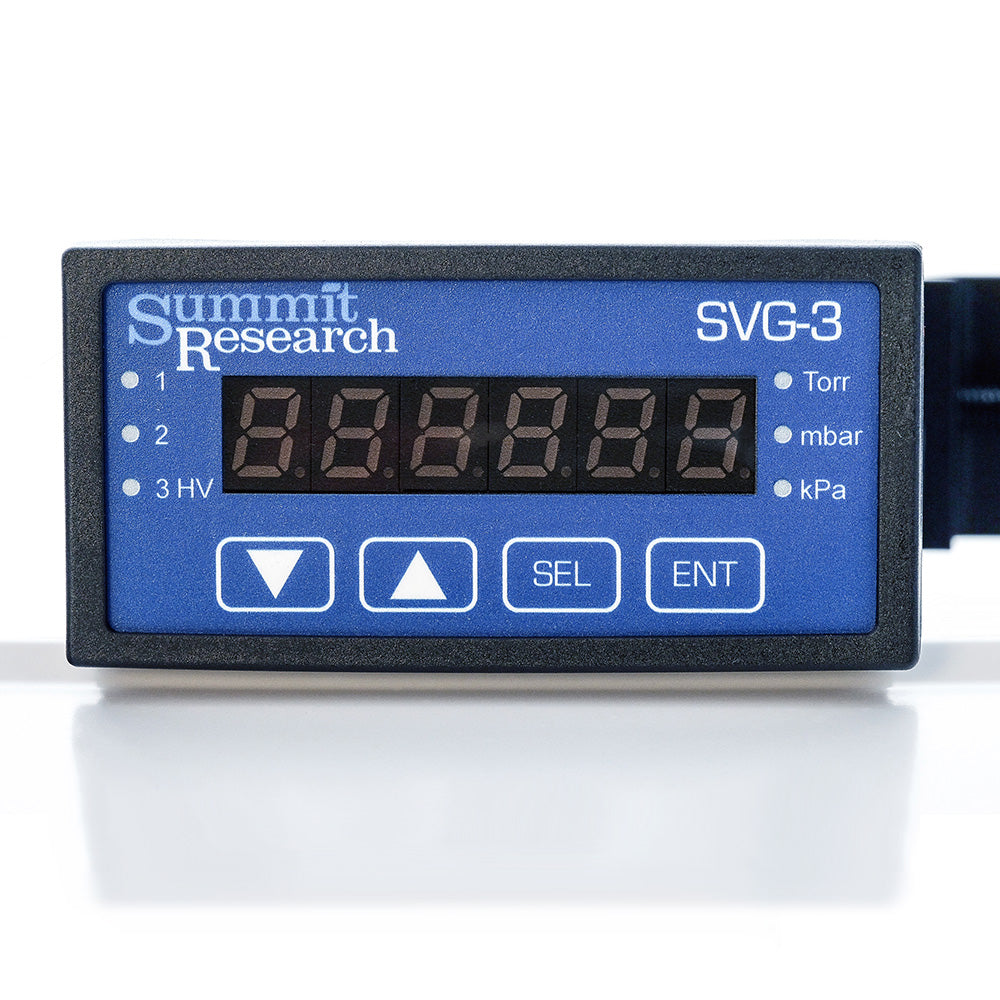

SVG-3 Summit Vacuum Gauge

Regular price $2,100.00 USD
Regular price Sale price $2,100.00 USD
Sale Sold out
Shipping calculated at checkout.

The SVG-3 is a 3-zone digital identifier with all boards built in, for the first time user it comes STANDARD with 2-zone that reads two locations that are within (A)x10-4, to deliver accurate readings up to the range of 3-4 scale vacuum. The STANDARD SVG-3 is supplied with two extremely accurate and robust KF25 sensors that can either read at the distribution adapter/distillation and/or read the vacuum rate the pump is pulling. The SVG-3 comes with three pre-installed circuits built in, two of which are calibrated and installed for the 2 zone reading feature in the standard SVG-3 package. The third circuit installed and calibrated is READY and COMPLETELY setup for the addition of aUHVP sensor.

So exactly what is this setup?

Easy, this is a encompassing 3 zone controller, designed at its full potential to read accurate readings from the:

  1. Distillation area of interest either at the cold trap, or at the reaction area.
  2. Initial vacuum pump readings that will allow the user to see the ultimate vacuum at the pump vs the vacuum at the first location.
  3. UHVP kits can now be added on with the third sensor that reads vacuum at the ultra high vacuum side.

Spec Sheet ButtonPDF Manual

Contents include:

1x interface

3x circuits loaded, reinstalled, and calibrated

2x standard 4 scale vacuum sensor with kf25

The upgrade to theUHVPsection requires only one part and is supplied only if pre-ordered with the setup, or purchased later.

Want a touch screen vacuum gauge? Try ourApollo Vacuum Controller
