SSP Corporation

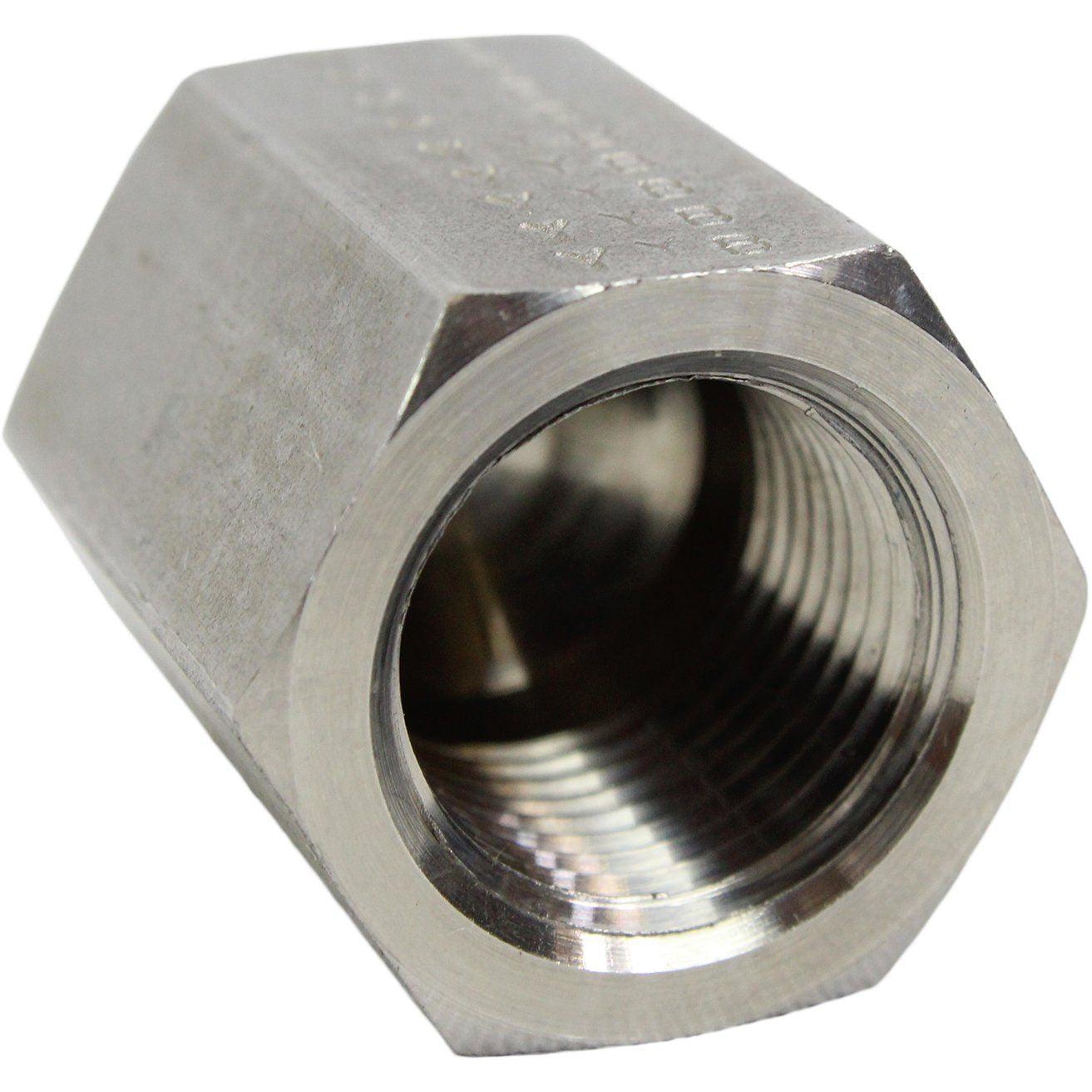

Pipe Cap

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

SSP - Pipe Cap


SSP Instrumentation TruFit™ is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit™ provides optimal performance when installed in accordance with SSP's recommendations and the design parameters appropriate for each type of connection ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂Æ tapered thread, straight thread, and weld & braze. TruFit™ components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.



***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape


Specifications
Connection Type 1 Female NPT
Connection Size 1 Specified by User
Material 316 Stainless Steel
ASTM A-276 and A-479 bar stock, A-182 forgings.
Working Pressure (PSIG) 1/4" - 7750
3/8" - 6800
NPT Pressure Rating >10,000PSI
ASME B31.3

SSP proudly makes Duolok™, TruFit™, FloLok™ and hundreds of other products 100% in the USA!
