Polyscience

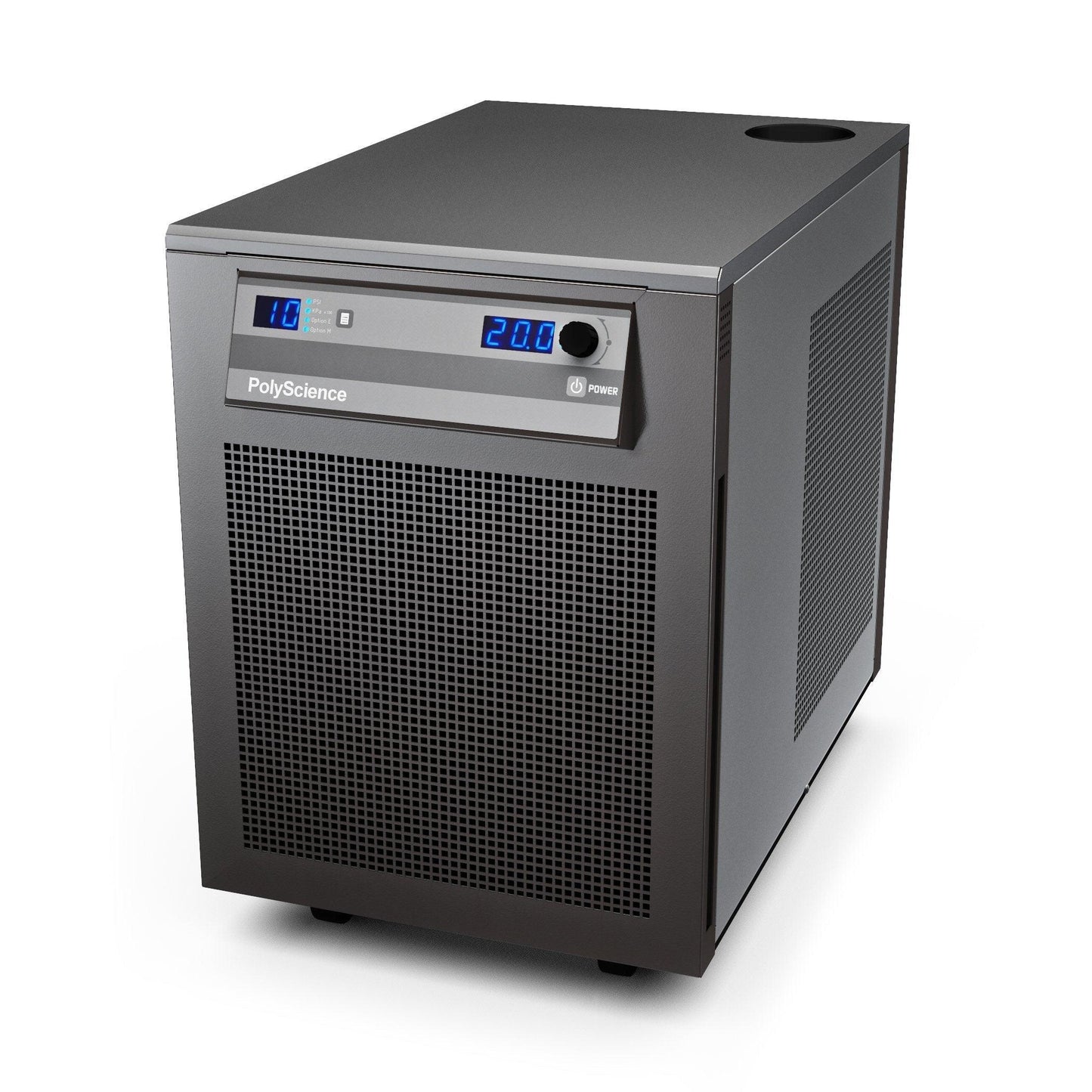

Polyscience DuraChill 1.5HP Chiller, Turbine Pump

$9,223.08 USD
$9,223.08 USD
Sale Sold out
Shipping calculated at checkout.

Polyscience DuraChill 1.5HP Chiller, Turbine Pump

Note: This item has a lead time of 2-3 weeks depending on stock availability

Specification
Description 1.5 HP Chiller, Turbine Pump; Air-Cooled
Display LED
Connectivity Optional: RS232, RS485
Working Temperature Range °C 5° to 35°
Temperature Stability °C ±0.5°
Temperature Calibration Capability 1-point
Pump Type Turbine
Working Temperature Range °F 41° to 95°
Working Temperature Range °C 5° to 35°
Reservoir Capacity (gallons) 3.5
Reservoir Capacity (liters) 13.25
Reservoir/Tank Material Polyethylene
Reservoir Cover Screw-on Cap
Cleanable Air Filter Yes
Cleanable Fluid Filter Yes
Temperature Stability °F ±0.9°
Temperature Stability °C ±0.5°
Display LED
Display Resolution (Read) 0.01
Pump Type Turbine
Process Connections 1/2" (F) NPT
Over-Temperature Protection / Failsafe Heater Control Yes
Reservoir Liquid Level Indicator Yes
Reservoir Drain Yes
Maximum Ambient Temperature °F 95°
Maximum Ambient Temperature °C 35°
Overall Dimensions (L x W x H) (inches) 30.5 x 19 x 26 in
Overall Dimensions (L x W x H) (cm) 78 x 48 x 66 cm
Compressor Size (HP) 1.5
Refrigerant R134a
Shipping Weight (pounds) 340.0
Shipping Weight (kilograms) 154.0
Catalog Page Number 104
60 Hz Only
Part Number 6860T56A270D
Maximum Pressure (psi) 100.0
Maximum Pressure (bar) 6.90
Maximum Pressure Flow Rate (gpm) 11.00
Maximum Pressure Flow Rate (l/min) 41.6
Cooling Capacity @ +10°C (W) 4420
Cooling Capacity @ 0°C (W) 120
Cooling Capacity @ +20°C (W) 5200
Cooling Capacity @ +30°C (W) 5980
Heater Wattage 1000
Electrical Requirements (VAC/Hz/Ph/A) 230/60/1/23.1
Regulatory Approvals TUV

Key specifications:

  • High capacity cooling for lasers, electron microscopes, and other laboratory applications
  • Small footprint conserves floor space
  • Displays temperature and pressure or flow rate simultaneously
  • User-adjustable temperature, pressure, and flow rate alarms
  • Simple operation and maintenance
  • Air- or water-cooled
  • Positive displacement (PD) or turbine (T) pump; other pump options also available
