Polyscience

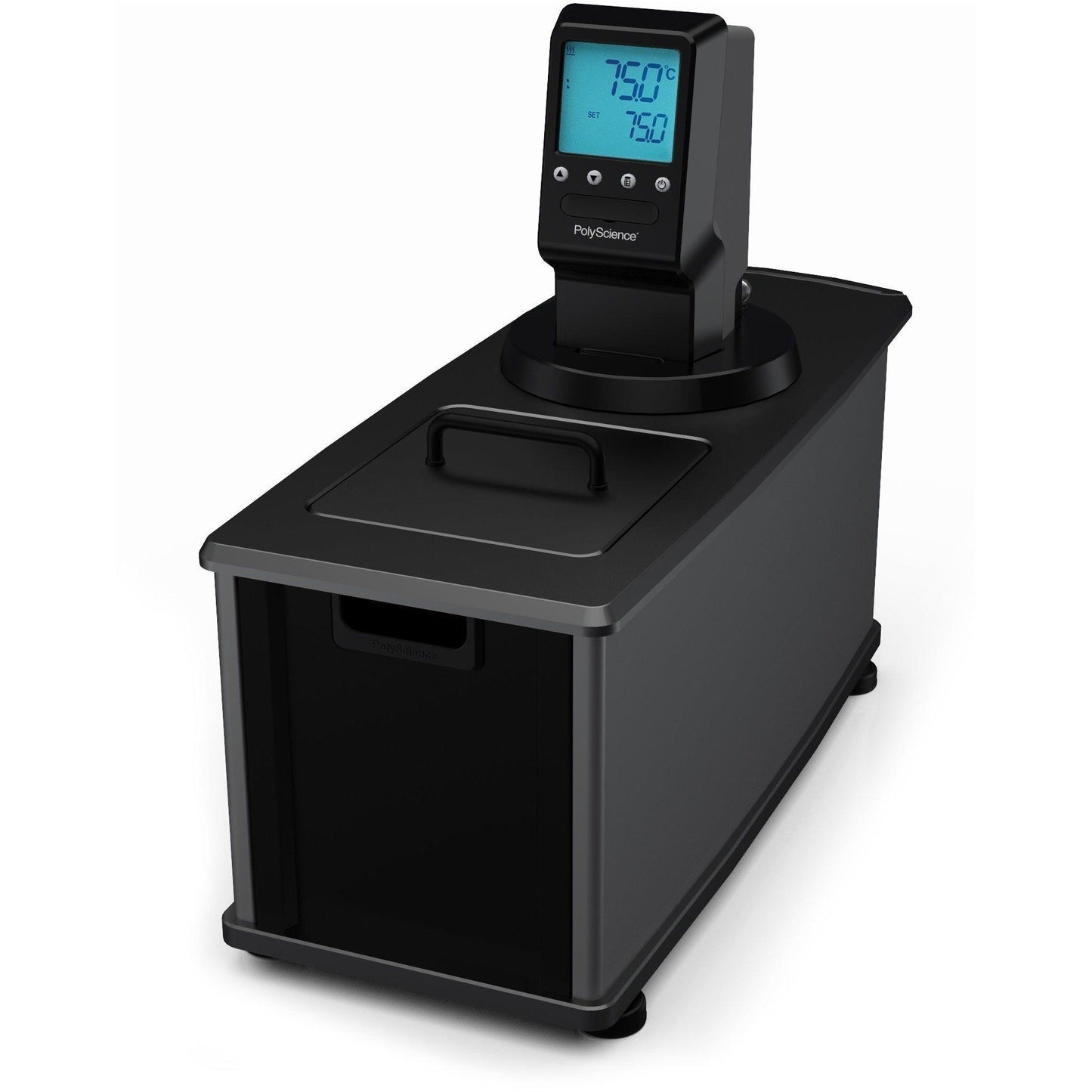

Polyscience 7 Liter MX Heated Circulator

$1,952.00 USD
$1,952.00 USD
Sale Sold out
Shipping calculated at checkout.

Polyscience 7 Liter MX Heated Circulator

Key Specifications
Description 135, 7 L Htg. Circulator
Controller Type MX
Display 3.25" LCD
Languages Supported English
Temperature Stability °C Ambient +10° to 135°
Temperature Stability °C ±0.07°
Temperature Calibration Capability 1-point
Working Access (L x W x D) (cm) 15.7 x 14.2 x 12.7 cm
Pump Type Pressure
Flammability Class (DIN 12876-1) I (NFL)
Working Temperature Range °F Ambient + 20° to 275°
Working Temperature Range °C Ambient +10° to 135°
Reservoir Capacity (gallons) 1.85
Reservoir Capacity (liters) 7
Reservoir/Tank Material Stainless Steel
Reservoir Cover Included
DuraTop Yes
LidDock Yes
Working Access (L x W x D) (inches) 6.18 x 5.59 x 5 in
Working Access (L x W x D) (cm) 15.7 x 14.2 x 12.7 cm
Temperature Stability °F ±0.13°
Temperature Stability °C ±0.07°
Display 3.25" LCD
Display Resolution (Set) 0.1
Display Resolution (Read) 0.1
Pump Type Pressure
Pump Speed One
Process Connections 1/2" O.D. Barbed Tubes
Flammability Class (DIN 12876-1) I (NFL)
Over-Temperature Protection / Failsafe Heater Control Yes
Low Liquid Level Protection Yes
Reservoir Drain Yes
Cooling Coil Yes
Maximum Ambient Temperature °F 95°
Maximum Ambient Temperature °C 35°
Overall Dimensions (L x W x H) (inches) 19.6 x 8.7 x 17.2 in
Overall Dimensions (L x W x H) (cm) 49.9 x 22.1 x 43.7 cm
Environmental Compliance RoHS, WEEE
Shipping Weight (pounds) 36.0
Shipping Weight (kilograms) 16.3
Catalog Page Number 60-61
60 Hz Only
Part Number MX07h235-A11B
Maximum Pressure (psi) 2.3
Maximum Pressure (bar) 0.16
Maximum Pressure Flow Rate (gpm) 3.60
Maximum Pressure Flow Rate (l/min) 13.5
Included Hardware Fitting Kit for External Applications
Heater Wattage 1100
Electrical Requirements (VAC/Hz/Ph/A) 120/60/1/10
Regulatory Approvals ETL

Key features:

  • Large, universal icon and English display
  • On-screen prompts
  • Single-point calibration capability

Certifications

  • Regulator Approvals: ETL
