BVV

Pneumatic Diaphragm Pump for Ethanol

Regular price $2,500.00 USD
Regular price Sale price $2,500.00 USD
Sale Sold out
Shipping calculated at checkout.

**This item has a 1-2 day lead time.**

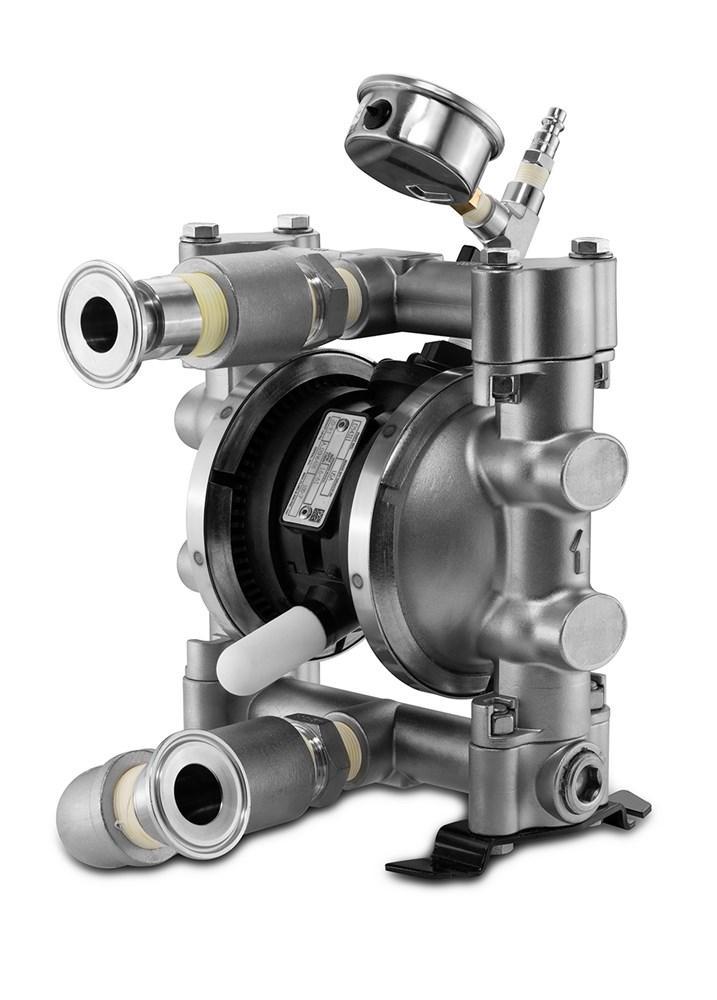

This air drivendiaphragm pumpis designed to be used with ethanol filtration, pumping processes, andBVVCentrifuges. It's unique rugged design can withstand temperatures from -40C to -80C. The inner diaphragms are made out of PTFE and the main body of the pump is made out of 316 Stainless Steel.

The pre-built version comes with a 0-160 psi pressure gauge, mini ball valve, and 1.5" Tri-Clamp connections for the inlet and outlet ports.

Specifications -40C -80C
Power Source Air Operated
Certification Required No Certifications ATEX
Fluid Section Material Stainless Steel
Pump Inlet/Outlet 716-3/4 Inc, 16gpm (19mm, 61lpm)
Center Section Polypropylene Standard Air Vale (NPT)
Porting SST Standard Porting (NPT)
Seats 316 SST
Balls PTFE
Diaphragms PTFE PTFE Overmolded
Manifold O-rings PTFE
