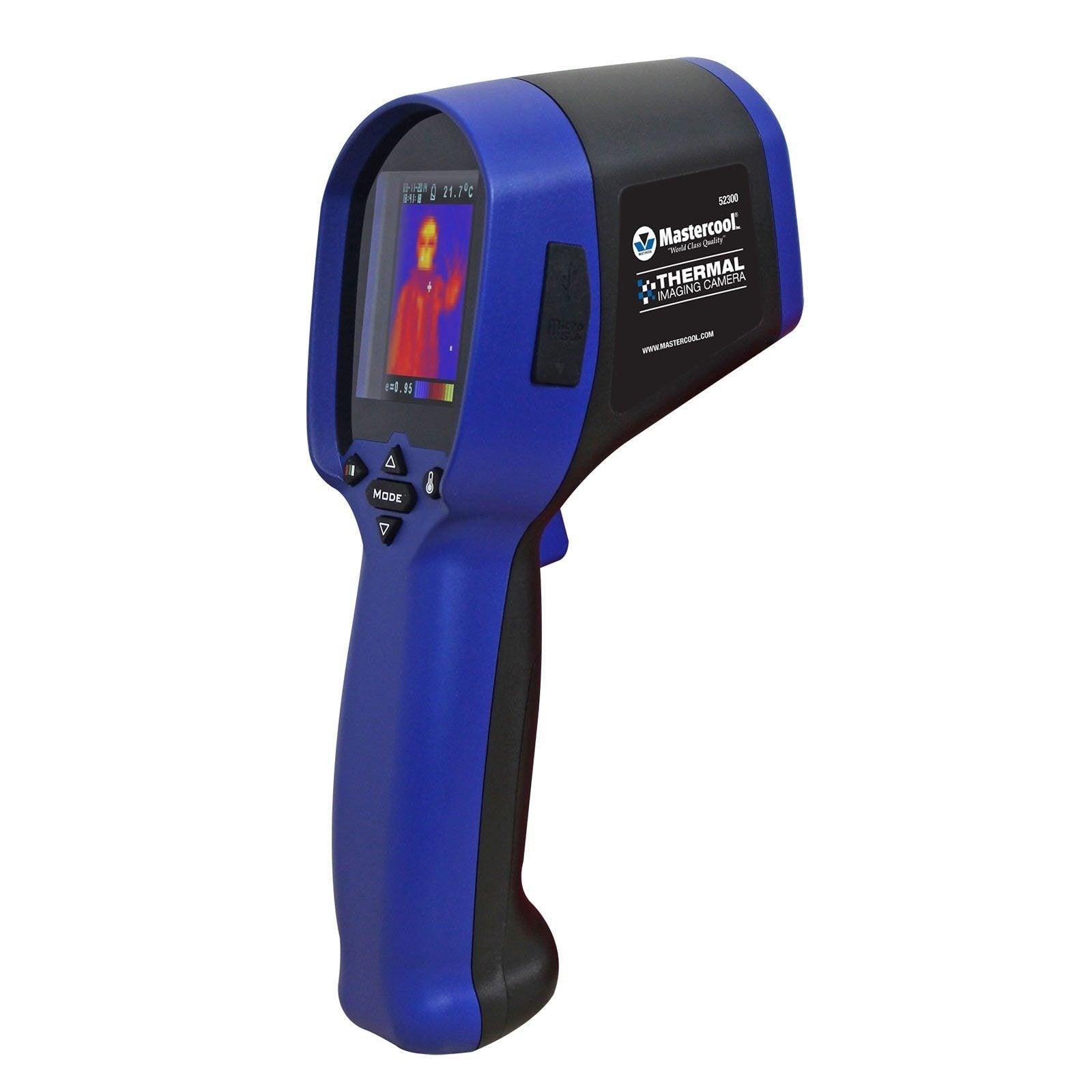

Mastercool 52300 Thermal Imaging Camera

Mastercool Thermal Imaging Camera

Take temperature measuring to another level–

Mastercool's thermal imaging camera can measure from -20 to 250ÀöC (-4 to 482ÀöF) and display thermal images and temperature. Thermal images can be saved to a micro SD card and transferred to the software included for image reporting.

Key Features:

• Fully Automaticvendor-unknown

• Focus Free

• Superior Measurement/Accuracy

• Micro SD Card Storage

• Reporting Software Included

Automotive Applications:

• Tire contact and wear diagnostics

• Brake and engine system evaluation for performance and cooling

• Rotor temperatures and wear patterns

• Faulty fuel injection nozzles

• Faulty wheel bearings

• Passenger compartment AC comfort analysis

• Proper fluid temperatures, static and full load

• Rear differential temps

• AC liquid and gas lines and hose analysis

• Turbo chargers and catalytic converters

• Evaporators, condensers and radiators for proper heat exchange

SPECIFICATIONS:

• Thermal Image Resolution: 32 x 31 pixels

• Measurement Range:-20 to 350ÀöC (-4 to 662ÀöF)

• Accuracy (Tamb=20 to 26®√ë°°√áC): ±2% of reading, or 2®√ë°°√áC (4®√ë°°√áF) whichever is greater

• Thermal Sensitivity: 0.1ÀöC

• Frame Rate: 9 Hz

• Field of View: 33 x 33 deg

• Emissivity Range: 0.95 default °'àö√ë'àö'àÇ®√´°Æ adjustable 0.1 to 1 step 0.1

• Focus: Focus free

• LCD Size: 2.8" (71 mm)

• LCD: Color

• Image Storage: Stores up to 25,000 images per gb, bmp file format

• Memory Type: Support 8G micro SD card

• Sensor Filter: 8 to 14 um

• Interface: USB

• Battery Type: (4) AA

• Battery Life (hr) (backlit): 6 hours

• Dimensions: 3.7" (l) x 2.9" (w) x 9.2" (h) (94 x 74 x 234 mm)

• Weight: 14 oz (0.4 kg)

52300: Thermal Imaging Camera with carry case, 8 gb micro SD card, CD, USB cord, batteries and instructions
