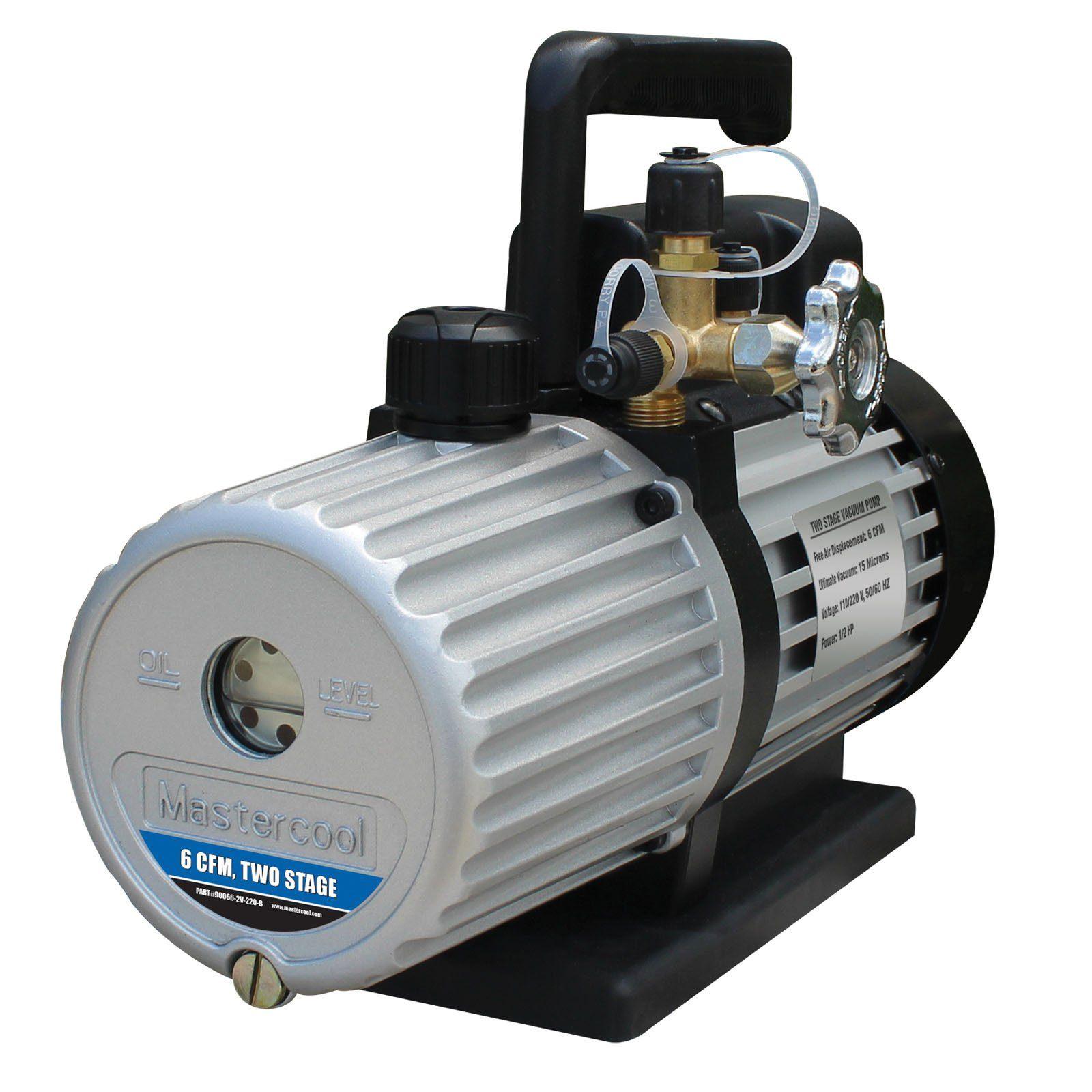

• Mastercool 90066-2V-110-B 6 CFM Vacuum Pump (TWO STAGE) - Mastercool Inc. High Desert Scientific
1 2

Mastercool Inc.

Refurbished - BVV Pro Series 5.6 CFM Two Stage Vacuum Pump UL Certified

$372.00 USD
$372.00 USD
Sale Sold out
Shipping calculated at checkout.

90066-2V-110-B
6 CFM VACUUM PUMP (TWO STAGE)

Product Description

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

  • New U.S. Design
  • Stronger Motor
  • Gas Ballast Valve Helps Prevent Oil Contamination Caused by High Moisture
  • Easily Removable Vapor Discharge/Oil Fill Port. Contains Internal Check Valve to Prevent Escape of Liquid Oil
  • Large Oil Level Sight Glass with Max/Min Oil Level Indicator
  • Easily Accessible Oil Drain Valve
  • Large, Light Weight Reinforced Base for Stable Positioning
  • Field Replaceable Cartridge
  • Cooling Fins to Keep Temperature Cooler During Extended Motor Operation
  • High Volume Fan Provides Cool Air to Motor and Pump
  • Manifold Valve Isolates Pump from the System when Testing for Leaks. Includes 3 Inlet Ports, 1/4", 3/8" SAE and 1/2" ACME
  • Dual Voltage Capability
  • Thermally Protected Motor with On/Off Rocker Switch

Specifications
No. of Stages: 2
Free Air Displacement: 6 CFM
Ultimate Vacuum: 15 Microns
Pump Motor: 1/2 HP
Pump Speed: 1720 RPM
Electrical Specs: 110 V/220 V, 50/60 Hz
Power Cord: 110 V Cable (US Standard)
Shipping Weight: 24.25 lbs (11 kg)
Dimensions in cm: 37.9 x 16.7 x 27.5

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.


Also Available:
90066-2V-220-B

  • No. of Stages: 2
  • Free Air Displacement: 170 lit/min / 142 lit/min
  • Ultimate Vacuum: 15 Microns
  • Pump Motor: 1/2 HP
  • Pump Speed: 1440 RPM
  • Electrical Specs: 220 V / 50/60 Hz
  • Power Cord: 220 V Cable (Shuko)
  • Shipping Weight: 24.25 lbs (11 kg)
  • Dimensions in cm: 37.9 x 16.7 x 27.5

SERVICE INFORMATION:

Oil Capacity: 15 oz / 440 ml

Replacement Cartridge: 90166-B
