Infinity

Infinity 1-3 Funnel Stainless Steel Winterization Filter Table

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Please contact us for a quote

Filters more than the competition!Introducing an industry first. A scalable cannabis oil winterization filter table. Capable of filtering up to hundreds of gallons per hour or as little as 5 gallons per filter per 5 minutes or less.

The Infinity filter table comes complete with an air purge system to evacuate your filtered product right in to your next process. Whether that is a Roto Vap, or even daisy chain them together for continued filtering. Each filter is valved independent of each other and can run all at the same time or independent of one another.

Our proprietary filter pads remove the need for a cake layer. They are imbedded with a D.E. blend and range from 5 to 25 microns. We also offer a color removal CARBON blend that has tremendous color removal properties. Cannabis distillate filtering Winterization Filtering.

Diatomaceous earth, also known asD.E., diatomite, is a naturally occurring, soft, siliceous sedimentary rock that is easily crumbled into a fine white to off-white powder. It has a particle size ranging from less than 3 m to more than 1 mm, but typically 10 to 200 m. Depending on the granularity, this powder can have an abrasive feel, similar to pumice powder, and has a low density as a result of its high porosity. The typical chemical composition of oven-dried diatomaceous earth is 8090% silica, with 24% alumina (attributed mostly to clay minerals) and 0.52% iron oxide.

Diatomaceous earth consists of fossilized remains of diatoms, a type of hard-shelled protist. It is used as a filtration aid, mild abrasive in products including metal polishes and toothpaste, mechanical insecticide, absorbent for liquids, matting agent for coatings, reinforcing filler in plastics and rubber, anti-block in plastic films, porous support for chemical catalysts, cat litter, activator in blood clotting studies, a stabilizing component of dynamite, a thermal insulator, and a soil for potted plants and trees like bonsai.

Vacuum pump and connection kits are optional.

Optional ULVAC DA-241 diaphragm pump connection kit

  • 3/4" to 5/8" hose barb adapter x 1(P/N: 34-58-reducer)
  • 5/8" silicone tubing x 6 ft(P/N: VH.58.XF)
  • 3/4" silicone tubing x 6 ft(P/N: VH.34.XF)

Optional Welch 2085 Explosion-proof diaphragm pump connection kit

  • KF25 to 3/4" barb adapter x 1(P/N: KF-34-1)
  • KF25 clamp and oring set x 1(P/N: KF25-FC-CR)
  • 5/8" silicone tubing x 6 ft(P/N: VH.58.XF)

Infinity Closed Loop Filter Table

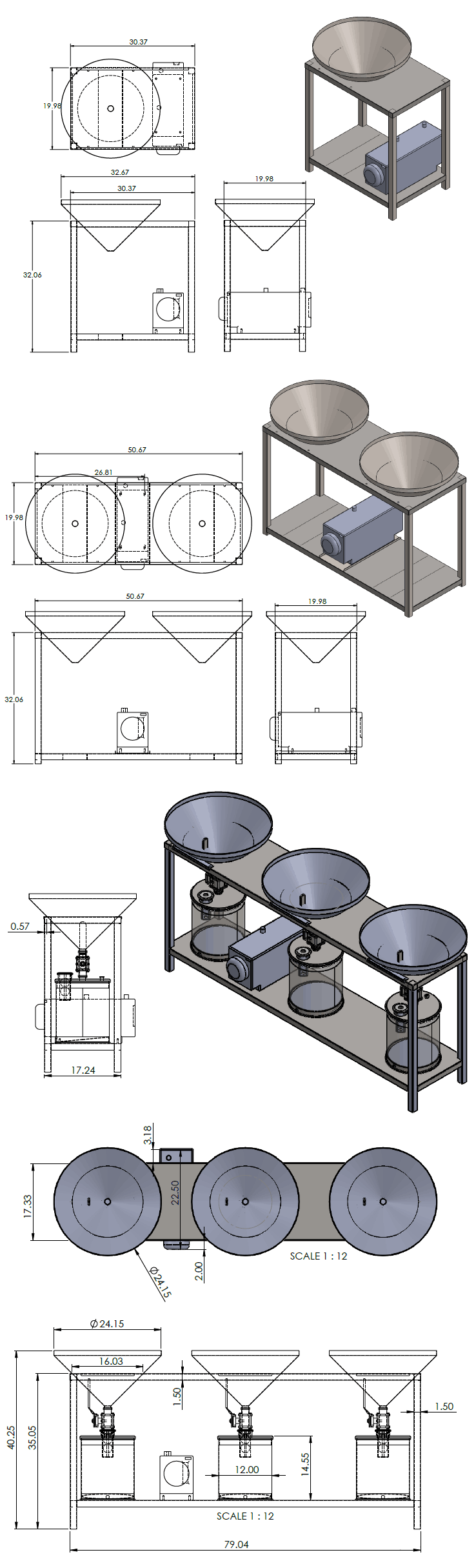

Table & crate weights and dimensions

3FT with jacketed tanks
445 lbs
3FT without jacketed tanks
409 lbs
3FT crate
272 lbs
96 x 36 x 58"
2FT with jacketed tanks
312 lbs
2FT without jacketed tanks 288 lbs
2FT crate 200 lbs 64 x 36 x 58"
1FT with jacketed tanks 188 lbs
1FT without jacketed tanks 176 lbs
1FT crate
150 lbs 43 x 36 x 58"
1 carbon filter pad box 40 lbs 25 x 25 x 8"
1 10 or 20 UM filter pad box 40 lbs
1 white paper filter box 8 lbs Usually is added into filter pad box
Top cover 23 lbs For each additional
