• HUBER New CoolSmart CS -20°C Chillers - Huber High Desert Scientific
1 2

Huber

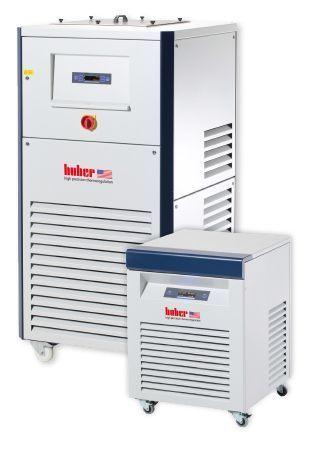

HUBER New CoolSmart CS -20°C Chillers

$14,100.00 USD
$14,100.00 USD
Sale Sold out
Shipping calculated at checkout.

The new HuberCS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. The new chillers further reduce water consumption and lower the operating costs for many applications. The investment pays itself off after a short time because of the water savings and the low purchase price.

With a cooling power up to 30 kW, the devices are particularly suited for constant temperature control for laboratory applications, e.g. for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS-devices, ICP-devices, extraction, distillation and many more.

Huber CoolSmart features

  • Working temperature from -20 °C to +15 °C
  • Quiet operation less than 78 db
  • Cooling power up to 30 kW
  • Economic and ecological solution to eliminate costly water waste
  • Pump performance up to 125 l/min
  • Easy to use and maintenance free
  • Power supply option: CS50, CS75 and CS100 can be configured for voltage 208V 3~ 60Hz
  • All models are air-cooled
  • ETL certified

Click here to visit Huber website for details

Technical Data

Model Temp.
range		 Tank
size		 Pump capacity max. /
pump connection		 Cooling power
(kW) at (C)		 Noise
level		 Dimensions Voltage Cat. No.
(C) (L) (L/min) (bar) 15 10 0 -10 -20 (dB) W x D x H (inch)
CS25 -20...15 25 50 4.5 1/2" 3.5 2.5 1.6 0.98 0.7 60 22.8 x 26.0 x 32.3 208V 2~ 60Hz 1100664
CS35 -20...15 15 30 4.0 1/2" 4.0 3.5 2.1 2.0 0.8 62 22.8 x 26.0 x 32.5 208V 2~ 60Hz 1101336
CS50 -20...15 100 83 4.0 3/4" 8 5 4.2 3.5 2 63 26.8 x 28.7 x 59.8 460V 3~ 60Hz * 1100689
CS75 -20...15 200 83 4.0 3/4" 9 7.5 5.5 3 2.4 66 31.5 x 33.5 x 65.6 460V 3~ 60Hz * 1100657
CS100 -20...15 200 83 4.0 3/4" 18 10 9.5 7.5 4.5 70 31.5 x 33.5 x 65.6 460V 3~ 60Hz * 1100690
CS200 -20...15 300 125 4.2 1" 28 20 18 15 9.5 78 55.1 x 39.4 x 70.9 460V 3~ 60Hz 1100688

* Power supply option: CS50, CS75 and CS100 can be configured for voltage 208V 3~ 60Hz.All models are air-cooled.
