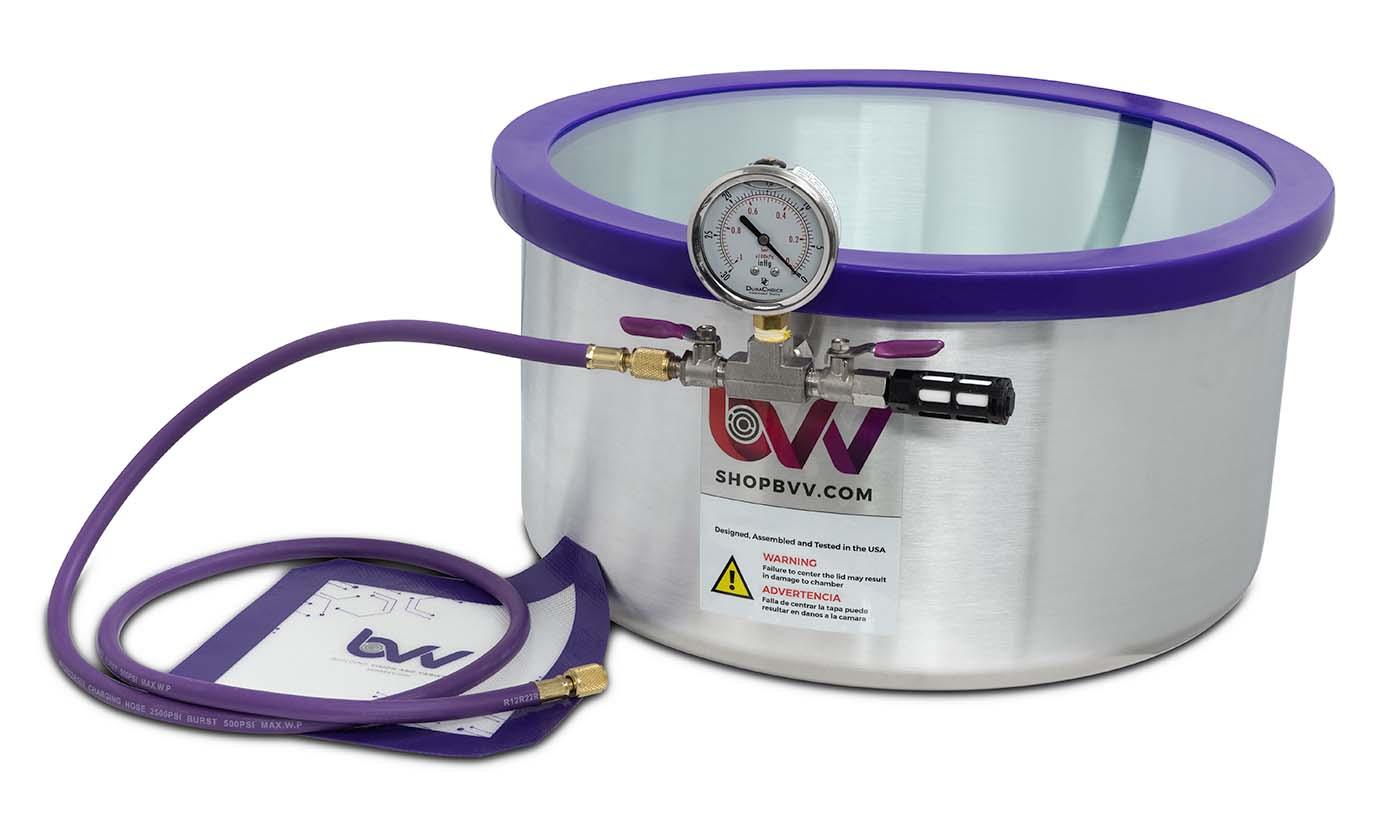

Glass Vac 7 Gallon Aluminum Vacuum Chamber

$318.00 USD
$318.00 USD
Sale Sold out
Shipping calculated at checkout.

Glass Vac 7 Gallon Aluminum Vacuum & Degassing Chamber


(Comes with 2 Year Limited Warranty)


This is a complete BestValueVac™ vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Utility Patent #9475627) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs. Glass Vac Vacuum Chambers are ideal for wood workers using the wood stabilization process because the glass lid will not deteriorate like acrylic or polycarbonate lids.

-Please Refer to these charts for vacuum specifications at altitude and conversions:



    Key Features:

    • Aluminum Vessel
    • Chemically Inert Glass Lid
    • Highly Durable and Reversible Silicone Gasket
    • Glycerin filled vacuum gauge
    • User friendly vacuum connections that fit most vacuum pumps on the market
    • 50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
    • Silicone vacuum pad
    • 5' of vacuum rated HVAC hose to pull a vacuum
    • 3003 Grade Aluminum Body, lightweight and durable
    • Precision lip edge at the top for the protection of silicone gasket


      Specification
      Chamber Material 3004 Aluminum
      Gasket Material Silicone
      Lid Material Glass
      Internal Dimensions (ID) 8" Tall x 16" Diameter
      Vacuum Gauge (Glycerin Filled) InHG (0)-(-30)
      Manifold Connections 1/4" SAE and 1/4" FNPT
      Temperature Rating 150°F (65°C)
      Additional Included Items 5' Orange Vacuum Rated HVAC Hose
      Platinum Cured Silicone Pad
      Black 50 Micro Air Filter


      Compatibility Explanation:

      • BestValueVac™ Chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
      • ShatterVac™ chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
      • GlassVac™ chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac™ chambers for resin infusion and wood stabilization.The lid may be cleaned with any solvent or cleaning agent.


      See FAQ at the top for product safety warnings.
