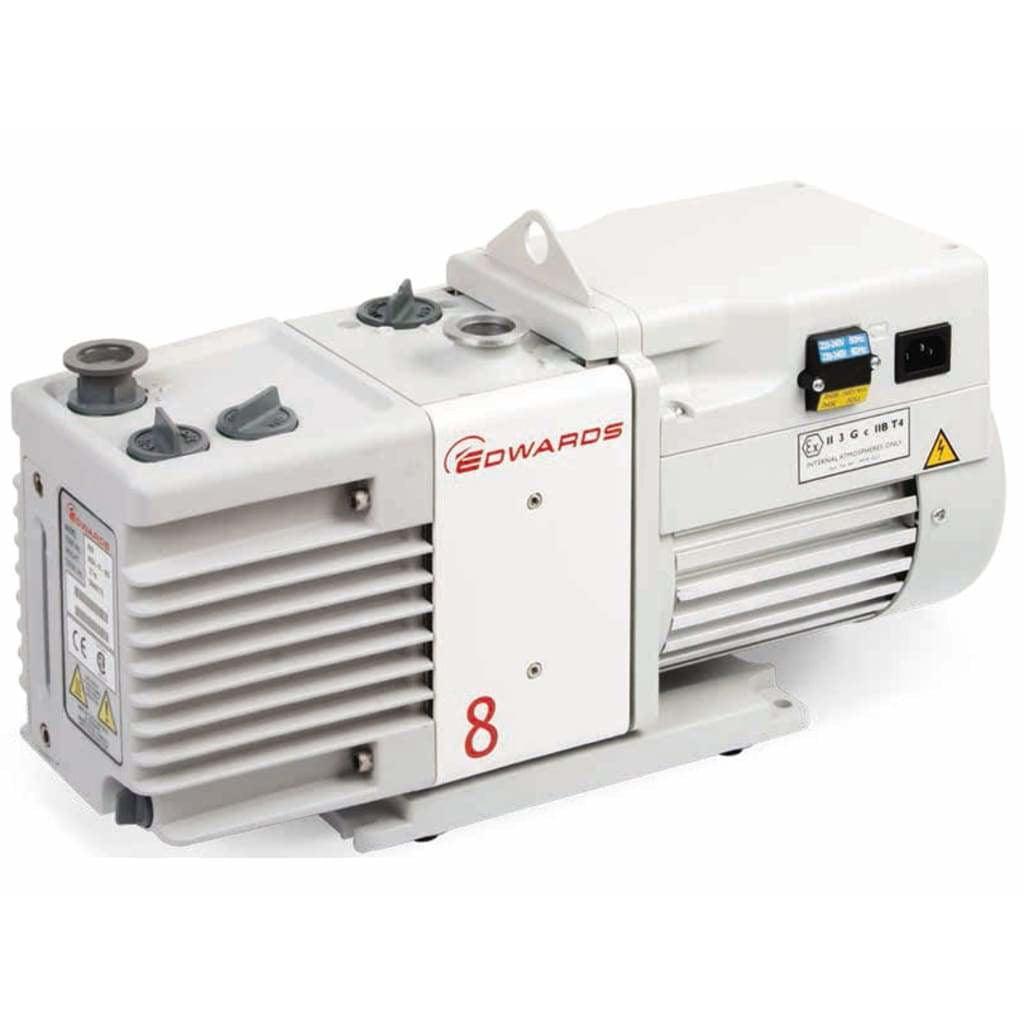

Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump

***Note: This item will ship by freight ONLY and has a 3-4 week lead time***

Edwards RV8 6.9 CFM Dual-Stage Vacuum Pump. Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.

All pumps are approved to UL and CSA standards by an external test house. Edwards has a global network, providing world-wide support for product applications and service.


Features:

  • 48 dB(A) and intrusive frequencies minimised.
  • Dual mode. Suitable for high throughput and high vacuum applications.
  • Easy-to-use gas ballast.
  • Fast acting inlet valve for system protection.
  • High torque, dual voltage/dual frequency motor, electronic start relay.
  • Efficient high pressure lubrication.
  • Oil-tight with printed gaskets, effective shaft seals.
  • Clamped-in sight glass.
  • Oil box well contains filling spills.
  • Hi-tech polymer blades, large diameter, easy-clean oil passages.
  • Consistent, built-in quality, cast bar construction.

Specifications
Displacement 50Hz 9.7 m3h-1 / 5.7 ft3min-1
60Hz 11.7 m3h-1 / 6.9ft3min-1
Speed (Pneurop 6602) 50Hz 8.5 m3h-1 / 5 ft3min-1
60Hz 10 m3h-1 / 5.9 ft3min-1
Ultimate pressure 2 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I 3 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II 6 x 10-2 mbar / 4.6 x 10-2 Torr
Ultimate pressure with Fomblin™ 2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour 38 mbar / 28.5 Torr
Max water vapour pumping rate ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂Æ GB I 60 gh-1
Max water vapour pumping rate ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂Æ GB II 220 gh-1
Max allowed outlet pressure 0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig
Motor power 50/60Hz 450 / 550W
Power connector 1-ph IEC EN60320 C13
Nominal rotation speed 50/60Hz 1500 / 1800rpm
Weight (without oil) 28 kg / 61.6 lb
Oil capacity min/max 0.45 / 0.75 litres
Recommended oil Ultragrade 19
Inlet flange NW25
Exhaust flange NW25
Noise level 48 dB(A) @ 50 Hz
Operating temperature range 12 ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂Æ 40 ®Æ‚Äö√Ñ√∂‚àö‚Ć‚àö™C

Pump Warranty Information

  • Customers using solvents such as stabilization resins (MinWax‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö¥®¢, Gator Venom‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö¥®¢ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö¥®¢)
  • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
  • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
  • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö¥®¢ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
  • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
