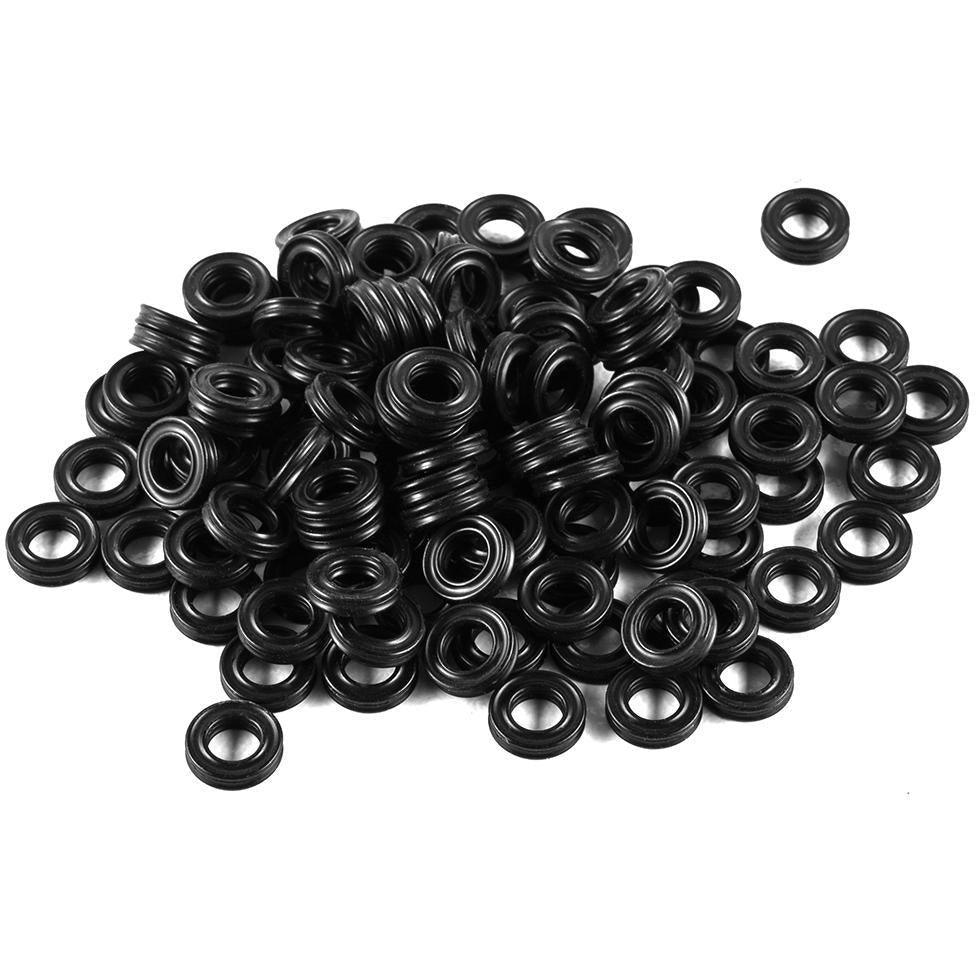

Double Seal X-Profile Oil-Resistant Buna-N O-Ring

Double Seal X-Profile Oil-Resistant Buna-N O-Ring

For use with our vacuum Chambers and the fittings/valves that are used for vacuum chamber components.

Specifications:

• Material - Buna-N Rubber
• Cross Section Shape - X
• Dash Number - 108
• Width - 3/32"
• ID - 1/4"
• OD - 7/16"
• Hardness - Durometer 70A (Medium)

For use with:

• Acetic Acid
• Ammonia
• Animal Oils
• Boric Acid
• Butyl Alcohol
• Calcium Hydroxide
• Citric Acid
• Diluted Salted Solutions
• Ethylene Glycol
• Glycerin
• Grease
• Isopropyl Alcohol
• Mineral Spirits
• Motor Oil
• Petroleum Fluids
• Phosphoric Acid
• Potassium Hydroxide
• Sodium bicarbonate
• Vegetable Oils

• Specifications Met - ASTM D2000, SAE AS568, SAE J200
• Temperature Range - (-30) to 225 F
