CPS Products

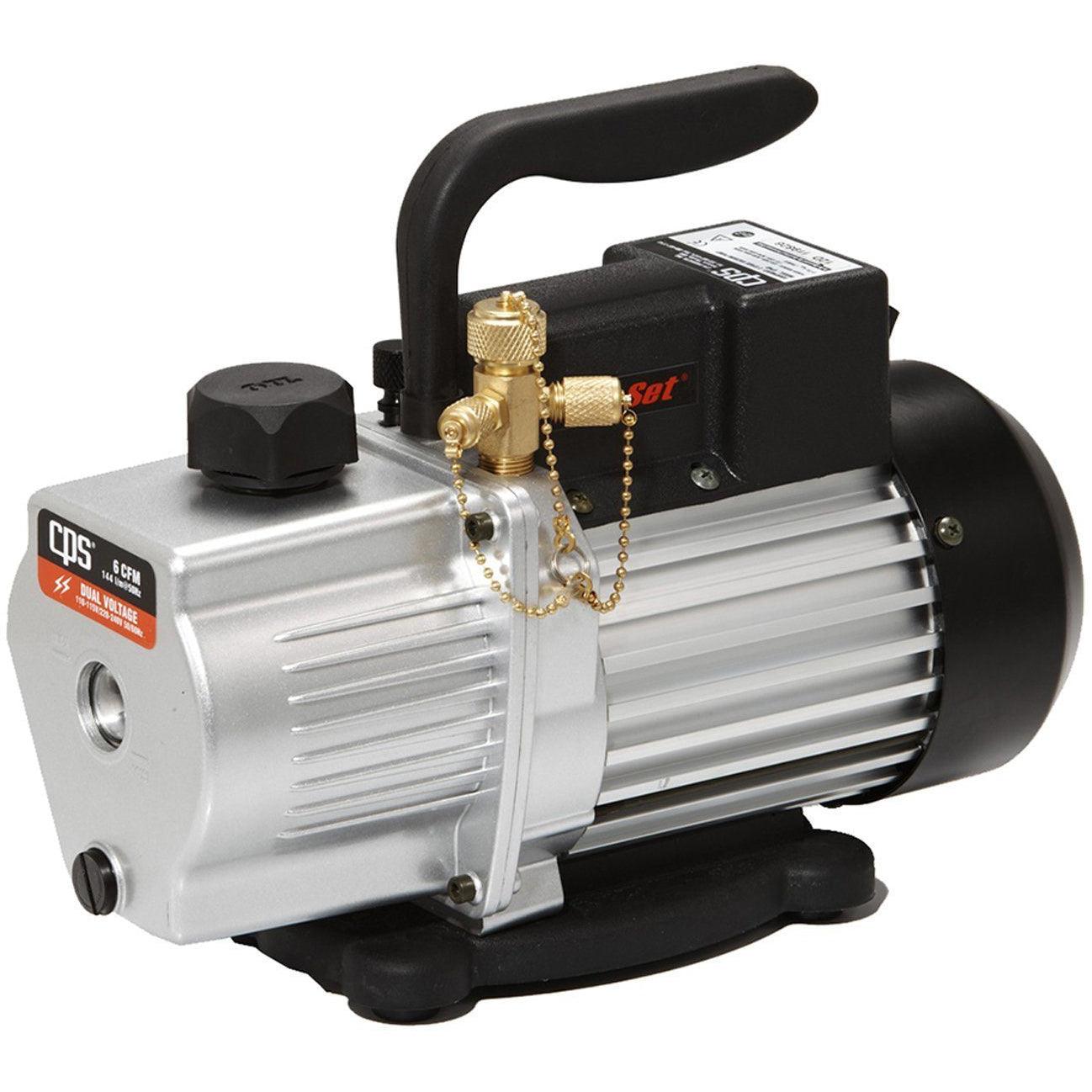

CPS 6 CFM Two Stage Vacuum Pump

Regular price $336.00 USD
Regular price Sale price $336.00 USD
Sale Sold out
Shipping calculated at checkout.

Do you need a reliable, cost-effective pump to pull a deep vacuum? Of course, you do.

And you’re probably tired of machines that work only for the first few days and then frustrate you. Luckily, you don’t have to be anxious anymore. You’ll avoid those disappointments and get more with the CPS vacuum pump.

The appliance will give you excellent performance. This effect is because of the gas ballast valve that produces a quick vacuum with a rating of as low as 10 microns. Moreover, this machine is lightweight and easy to handle and operate to get your required vacuum conditions.

So, you’ll save time and money and boost productivity.

You’ll have a comfortable time cleaning and storing the machine. This benefit is because of the C13 removable power cord and the proprietary oil mist-free exhaust port cap. And because of those features, you’ll also foster a safer work environment.

But you might wonder, what about noise?

The CPS vacuum pump’s quality gives you smooth, fast, and quiet operations. This way, you can add the apparatus to your air conditioning, and it won’t disturb your peace. The hard rubber base provides that benefit by absorbing vibrations from the machine.

Grab your CPS vacuum pump now!

The VP6D Pro-Set™ Premium Series vacuum pump is a 6 CFM, 2 stage unit with a versatile dual voltage 1 / 2 HP motor. The unit boasts the same high quality , high value features engineered into all of our Pro-Set™ vacuum pumps providing performance excellence and years of reliable service.

Item Features:

  • Dual voltage operation 110-120V / 220V 50 / 60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for 1 / 4‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢, 3 / 8‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ and 1 / 2‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
  • Solid rubber base provides extreme shock resistance
  • Sure-grip handle ergonomically designed for superior comfort and portability.



    Specifications
    No. of Stages: 2
    Power: 110V-120V / 220V 50 / 60 Hz USA plug
    Motor Size (HP) RPM @ 50 / 60 Hz: 1 / 2 (HP) 2880 / 3440 RPM
    Dimensions: 13.1‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ x 5.5‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ x 10‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢
    Weight 22.5 lb / 10.2 kg
    Operating Temperature Range 0 °C (32 °F) to 52 °C (125 °F)
    Ultimate Vacuum: as low as 10 microns
    Oil Capacity: 14 oz / 400 ml
    Overload Protection: Motor thermally protected, dual voltage units have extra IEC fuse
    Control System: on-off power switch
    Free Air Displacement: 6 CFM @ 60 Hz, 144 l / m @ 50 Hz
    Intake Fittings 1 / 4‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ SAE, 3 / 8‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ SAE and 1 / 2‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√Ñ√∂‚àö¢‚Äö√Ñ¢ ACME
