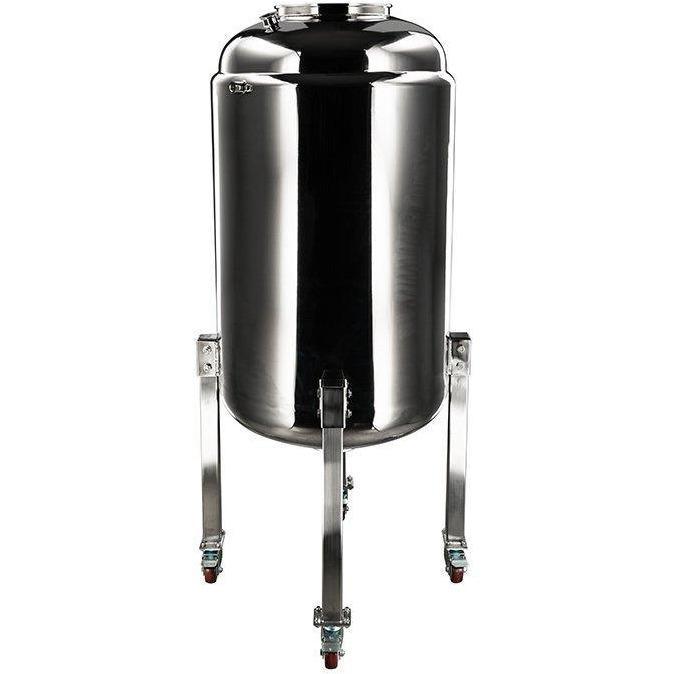

300L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp Port and Locking Casters

Regular price $5,250.00 USD
Regular price Sale price $5,250.00 USD
Sale Sold out
Shipping calculated at checkout.

300L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp/ Tri Clover Port and Locking Casters

This massive 304 Stainless Steel Jacketed vessel can hold up to 300L of water (~80 gallons) and has a 12" Tri-Clamp port, (2) 1.5" Tri-Clamp ports, and (1) 1/2" FNPT port on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 43L or 11.5 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)

Material 304 Stainless Steel
Overall Dimensions 65" Tall x 30" Wide
Pressure Rating 100 PSI MAX
Connection Type(s): (1) 12" Tri-Clamp Top Port
(2) 1.5" Tri-Clamp Top Ports
(1) 6" Tri-Clamp Bottom Port
(2) 1/2" FNPTOuter Jacket Ports

***Note: This item will ship via freight ONLY.
