Complete Closed Column Extractor Kit
The Closed Column Extractor Kit is designed to pair well with the other products included in the extraction kit. The items in the kit cover every process from start to finish on your essential oil extraction (excluding butane) and is easy for beginner operators to use.
The first step of the oil extraction process is to use the closed column extractor to extract the essential oils from the plant material into a pyrex dish. The user then transfers the oil with residual solvent into the two-gallon vacuum chamber; the digital heating pad is attached to the bottom of the chamber after setting the temperature. The V4D 4CFM 2 Stage vacuum pump exerts a high vacuum to purge and degass residual solvent or gases trapped inside the oil. (Note: This process may take up to 5 days.) Once the purging process is complete, the oil extraction can be used immediately or transformed into a variety of applications.
Professional Kit Adds the following:
- Compound Gauge
- Sight Glass
- Shower Head
Best Value Vacs 2 Gallon Vacuum Chamber
90 Day Registered Warranty
Best Value's unique, patent-pending gasket design (Utility Patent #14/533,548) and formidable chamber are designed to last 10,000 uses with proper care and maintenance. The gasket is made reversible for easy peel-off and peel-on functionality, effectively doubling the life of our system. The chamber is equipped with user-friendly vacuum connections that fit most vacuum pumps on the market. Every chamber is tested before shipping to lose no more than 2.5Hg/24hrs.
Product Features:
-
Aluminum Vessel
-
Highly durable and reversible silicone gasket
-
Glycerin-filled vacuum gauge
-
50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
-
Silicone vacuum pad
-
5' of vacuum-rated HVAC hose to pull a vacuum.
90 Day Registered Warranty
This 9" reprogrammable Digital Heat Pad comes with full, detailed instructions.
Product Features | |
---|---|
UL Listed Fahrenheit Digital Controller | |
Min Temp: | Ambient + 5Max Temp: 160F |
Voltage: | 110VAC Only |
Power Consumption: | 218-watt |
Digital Control: | Increments of 1 Degree |
Accuracy: | +/- 0.2 Degrees |
Relay Lifespan: | Approx. 10 million cycles |

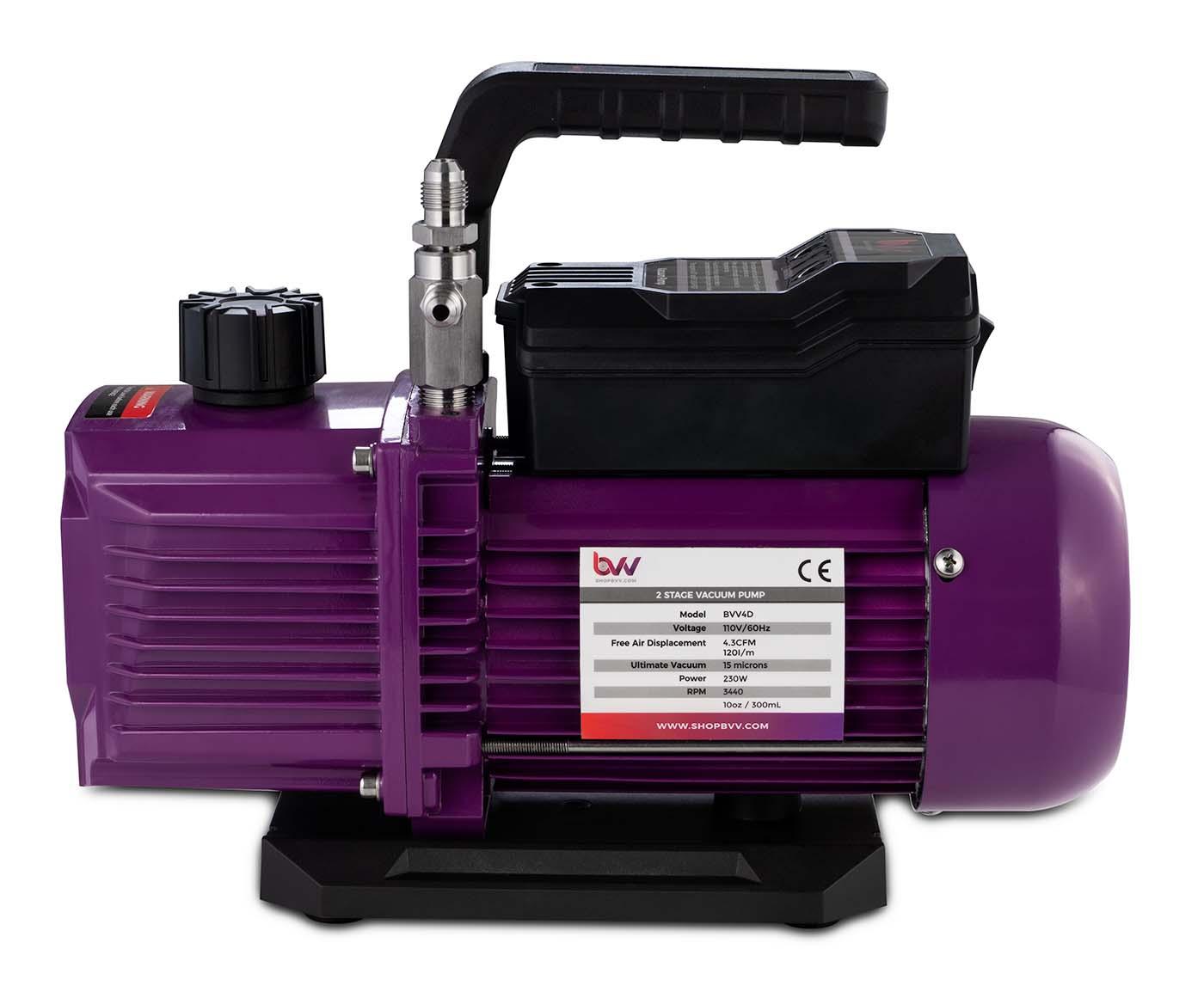

BVV™ V4D 4CFM Two Stage Vacuum Pump
This is the BVV™ V4D 4CFM Two Stage Vacuum Pump used in botanical extraction.
Please refer to these charts for vacuum specifications at altitude and conversions:
Key Feature
- Internal Check Valve
- Oil Mist Filter Cap
- Larger Oil Reservoir for longer oil life
- Lightweight
- Rubber Feet for noise dampening
- Reliable, economical, and efficient
Models | BVV4D | BVV7S | BVV9D |
---|---|---|---|
Stage | 2 | 1 | 2 |
Ultimate Vacuum (Microns) | 15 | 75 | 15 |
Refrigerant Classes | A1 Non-Toxic, Non Flammable | ||
Dimensions (in) | 12.4 x 4.8 x 10.16 | 12.4 x 4.8 x 10.16 | 15 x 6.3 x 11.22 |
Weight (lbs) | 19.4 | 16.5 | 32 |
Free Air Displacement | 4.3 CFM | 6.4 CFM | 8.5 CFM |
Motor Size (HP) RPM | 1 HP 3440 RPM | ||
Oil Capacity | 10oz / 300ml | 14.5oz / 410ml | 24oz / 680ml |
Voltage | 110V 60 Hz | ||
Power Cord | Hard Wired 3m / 9.8' Power Cord | ||
Power Switch | Standard On / Off | ||
Operating Temperature Range | 32F to 125 F (0C to 52C) | ||
Gas Ballast Valve | Yes | No | Yes |
Intake Fittings | Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports |
*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.
