BVV 4 Cylinder Active Closed Loop Recovery Kit ITS/ETL to ANSI/ISA Certified

This is an Upgrade Kit which can be added to any one of our passive systems making it into an "Active" Closed Loop System.

The Active Recovery Upgrade Kit will increase recovery times by condensing the vapor a lot faster than just a hot/cold differential. This will increase efficiency and productivity, many professionals use this method, as this drives profits.

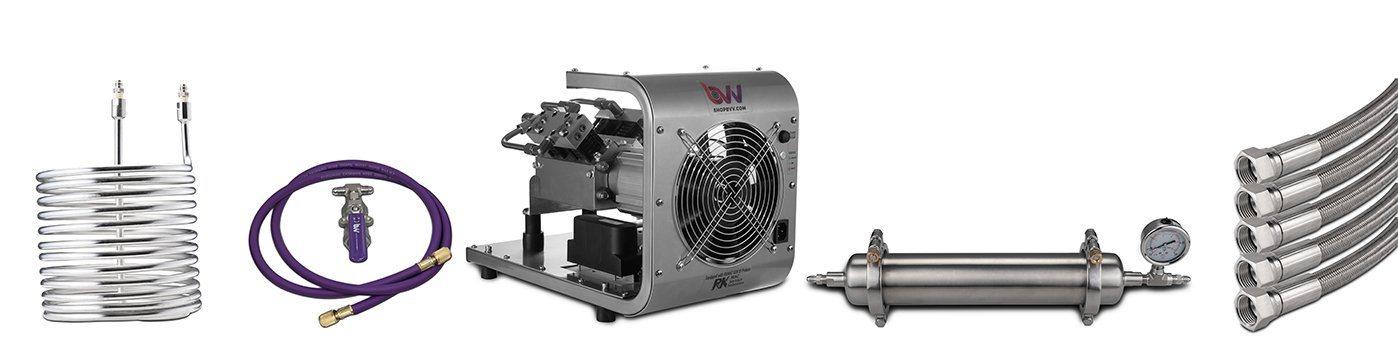

This Kit Includes the Following:

• BVV 4 Cylinder Butane Recovery Pump ITS/ETL to ANSI/ISA Certified

• BVV Large Condensing Coil

• 1/2" x 24" SS JIC Braided Hose

• (2) 1/2" x 48" SS JIC Braided Hose

• (2) 1/2" x 60" SS JIC Braided Hose

• Molecular Sieve Filter Drier

• BVV 5' HVAC Hose

• BVV Vacuum Tee

RECOVER MORE WITH LESS

BVV is proud to introduce our new and powerful line-up of Butane & Propane Recovery Pumps. Blending compact design with improved Gen III Pistons from RKMAC, this collection of pumps can help you recover 1lb. Butane / 0:51 Seconds! This pump Assembled in the USA and all the critical parts are domestically made. Finding parts wont be an issue with this pump.

The piston seals are rated to 450F and the average operating temperature of the pump is 175F leading to a long service life. Certified by ITS/ETL to ANSI/ISA 12.12.01 for Use in Hazardous locations Class I & II, Division 2 and Class III, Divisions 1 & 2 environments. The computer controlled brushless DC motor operates at 3000 RMP nearly twice as fast as any other pump in its class.

BVV Butane/Propane Recovery Pumps are:

• Process up to 10,000 lbs. of vapor recovery before rebuild
• Equipped with oil-less reciprocating compressors for a clean product
• Designed and Assembled in the U.S.A. with domestic and global parts
• Affordable and highly cost efficient
• Available in 2-Cylinder, 4-Cylinder, CMEP Retrofit
• Comes with a 2-year Manufacturer's Warranty covering Hemp usage
• Rated universal voltage 100-240V AC 50/60 Hz 1Ph
• Built with high efficiency Brushless DC Motor used for variable speed control
• Equipped with Viton O-Ring Seals for Butane/Propane gas and oil compatibility
• Certified by ITS/ETL to ANSI/ISA 12.12.01
• Noise level: 93.0 dB @ 1m

*Butane recovery results were achieved on a collection base pressure greater than 30psi and using a recovery cylinder with a pressure <10psi. A dry ice coil was used in between the output port of the pump and the recovery cylinder to condense vapor.
