BVV™ 316SS FNPT Full Bore Ball Valve -40F to 450F

$58.00 USD
$58.00 USD
Sale Sold out
Shipping calculated at checkout.

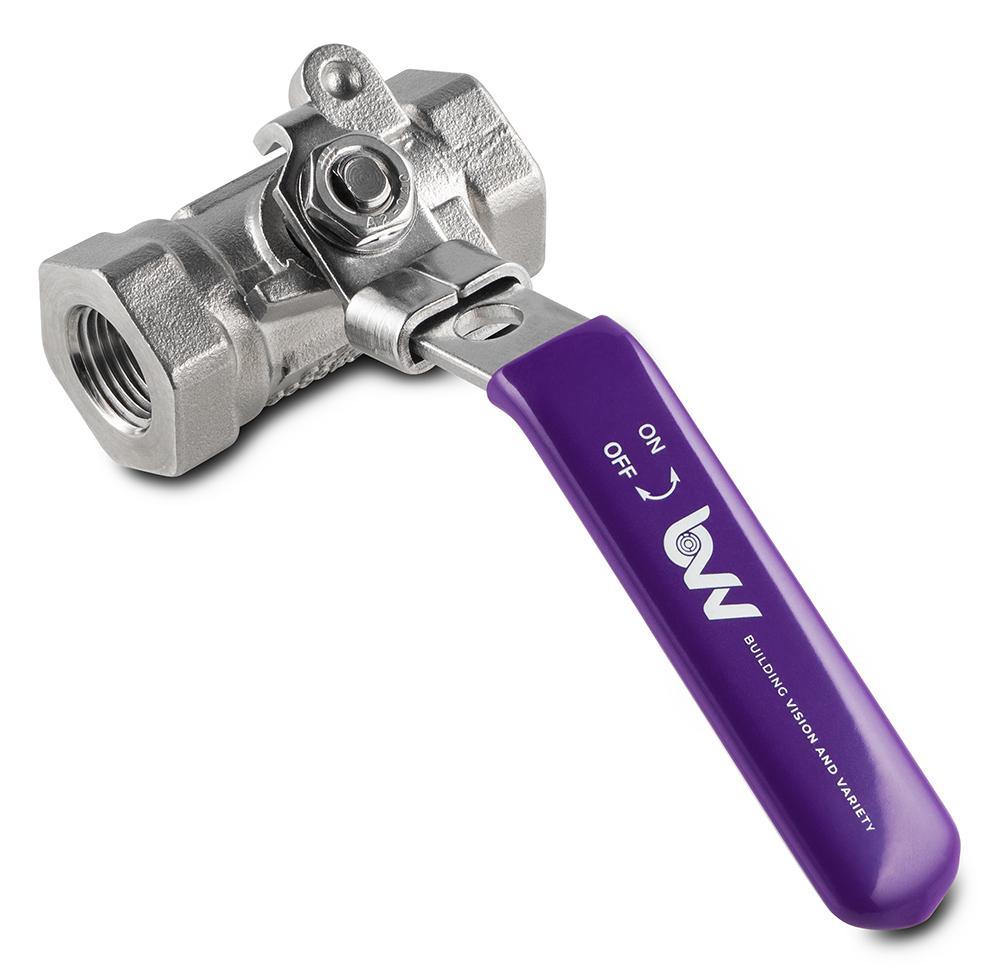

BVV™ 316SS FNPT Full Bore Ball Valve


(Compare to Milwaukee 10 Series Ball Valves)


This BVV™ 316 stainless steel full bore ball valve is a fire safe ball valve and is 1 piece ball valve construction. It also features a straight body style with Female NPT x Female NPT threaded connections with one side being pinned into place for zero movement during installation. The fire safe ball valve features a maximum pressure rating of 2000 PSI CWP and has a blowout proof stem made of 316SS and the temperature range of this ball valve is -40F° to 450F°.

Standard: ASTM A351

Pressure Tested in compliance with API 598 Ninth Edition 2009: Sec.5 and Sec.6

Technical Data Sheet


Valve Specifications
Sizes Available:
  • 1/4" FNPT
  • 3/8" FNPT
  • 1/2" FNPT
Pressure Rating 2000 WOG
Temperature Range -40 to 450F°
Sizes Available: 1" (Fits 1.5" Tri-Clamp)
Torque Specifications Do not Exceed 14.46ft-lbs when tightening.

(Note: Overtightening the valve can cause damage to the pin. Doing this will void the valve warranty.)
Valve Materials:
Body 316SS / CF8M
Ball 316 Stainless Steel
Stem 316 Stainless Steel
Stem Nut 304 Stainless Steel
Insert 316 Stainless Steel
Seat PTFE / Dyneon TFM1600
Thrust Washer PTFE / Dyneon TFM1600
Stem Packing PTFE / Dyneon TFM1600
Handle 304 Stainless Steel
Handle Cov VINYL GRIP
Handle Washer (1/2") 304 Stainless Steel
Handle Nut 304 Stainless Steel
Belleville Washer 304 Stainless Steel
PIN 304 Stainless Steel
