BVV

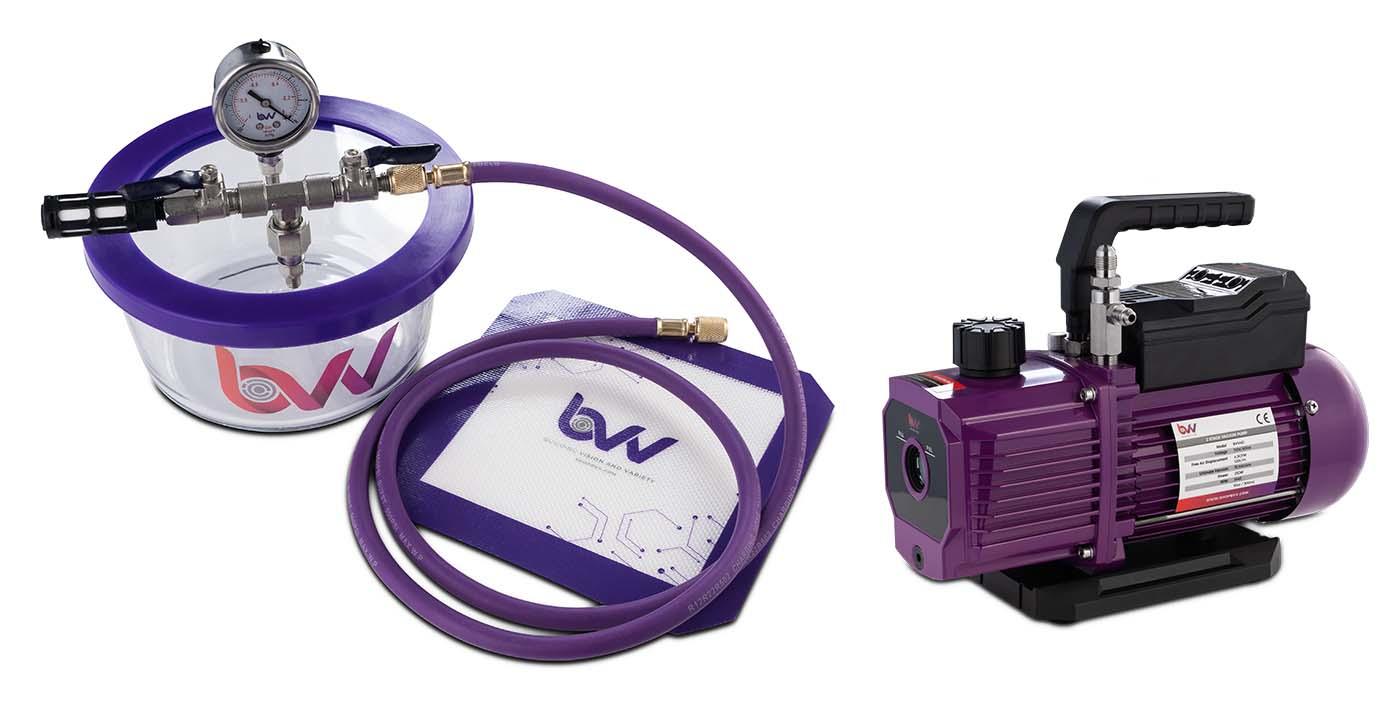

BVV 1.75 Pyrex Vacuum Chamber and V4D 4 CFM Two Stage Vacuum Pump Kit

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Sold out
Shipping calculated at checkout.

BVV 1.75 Pyrex Vacuum Chamber and V4D 4CFM Two Stage Vacuum Pump Kit

This is a complete BestValueVac™ vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Utility Patent #14/533,548) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

-Please Refer to these charts for vacuum specifications at altitude and conversions:

This Kit Includes:


    Key Features:

    • Pyrex Glass Vessel
    • Highly Durable and Reversible Silicone Gasket
    • Glycerin filled vacuum gauge
    • User-friendly vacuum connections that fit most vacuum pumps on the market
    • 50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
    • Silicone vacuum pad
    • 5' of vacuum rated HVAC hose to pull a vacuum.

    Specifications
    Chamber Material Pyrex Glass
    Gasket Material Silicone
    Lid Material Polycarbonate
    Internal Dimensions (ID) 3" Tall x 6.75" Diameter Drafting Downwards to 6"
    Vacuum Gauge (Glycerin Filled) InHG (0)-(-30)
    Manifold Connections 1/4" SAE and 1/4" FNPT
    Temperature Rating 150°F (65°C)
    Additional Included Items
    • 5' Orange Vacuum Rated HVAC Hose
    • Platinum Cured Silicone Pad
    • Black 50 Micron Air Filter

    Models BVV4D BVV7S BVV9D
    Stage 2 1 2
    Ultimate Vacuum (Microns) 15 75 15
    Refrigerant Classes A1 Non-Toxic, Non Flammable
    Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22
    Weight (lbs) 19.4 16.5 32
    Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM
    Motor Size (HP) RPM 1 HP 3440 RPM
    Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml
    Voltage 110V 60 Hz
    Power Cord Hard Wired 3m / 9.8' Power Cord
    Power Switch Standard On / Off
    Operating Temperature Range 32F to 125 F (0C to 52C)
    Gas Ballast Valve Yes No Yes
    Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports

    *2 year limited warranty on vacuum chamber

    *1 year limited warranty on vacuum pump



    Compatibility Explanation:

    • BestValueVac™ Chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
    • ShatterVac™ chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
    • GlassVac™ chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac™ chambers for resin infusion and wood stabilization.The lid may be cleaned with any solvent or cleaning agent.

    See FAQ at the top for product safety warnings.




    Pump Warranty Information:

    Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)

    • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
    • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
    • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result from the first use.)
    • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.




    For shipping info including Import/Export details visit our Shipping link at the bottom of the page.
