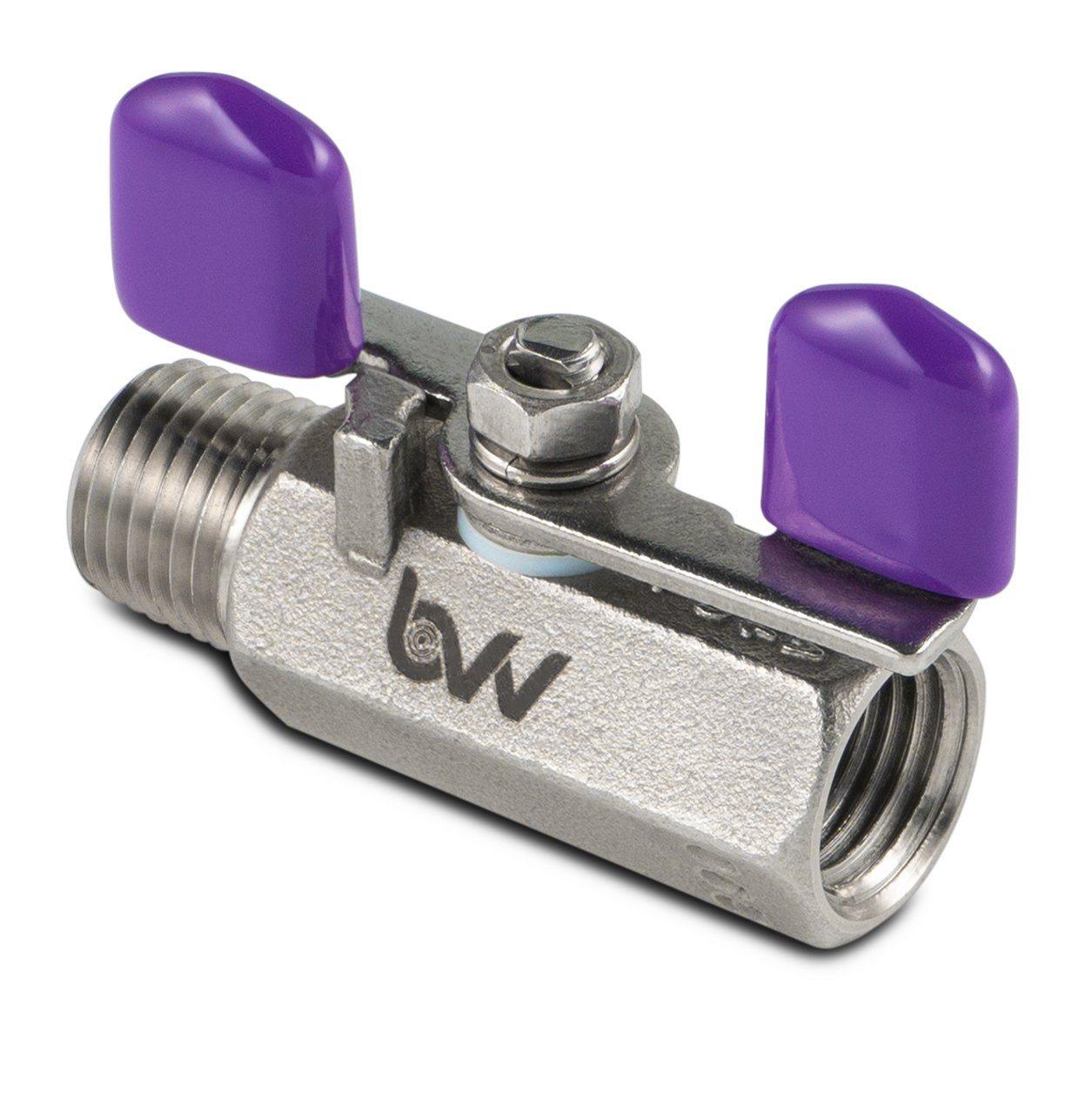

BVV™ 1/4" MNPT x 1/4" FNPT Stainless Steel Miniature Butterfly Handle Ball Valve -20 to 230°c

$31.00 USD
$31.00 USD
Sale Sold out
Shipping calculated at checkout.

BVV™ 1/4" MNPT x 1/4" FNPT Stainless Steel Miniature Butterfly Handle Ball Valve

This 316 Stainless Steel Miniature Ball Valve features a stainless steel ball and Modified PTFE (Dyneon™ TFM1600) seats and packing on the inside. It has an overall length of 2-3/4" and has a 1/4 turn butterfly style valve.


Technical Data Sheet

Pressure Tested in compliance with API 598 Ninth Edition 2009: Sec.5 and Sec.6

Specification
Standard: ASTM A351
Stem: 316 Stainless Steel
Seat: PTFE
Temperature Rating: -20°C - 230C
Pressure Rating: 1000 PSI (W.O.G. Water, Oil, Gas)
Body: Cast 316 / CF8M Stainless Steel
Cap: Cast 316 / CF8M Stainless Steel
Ball Cast 316 / CF8M Stainless Steel
Heat Treatment: Solutiom Annealed 1050-1100°C
Stem Packing: PTFE
Thrust Washer: PTFE
