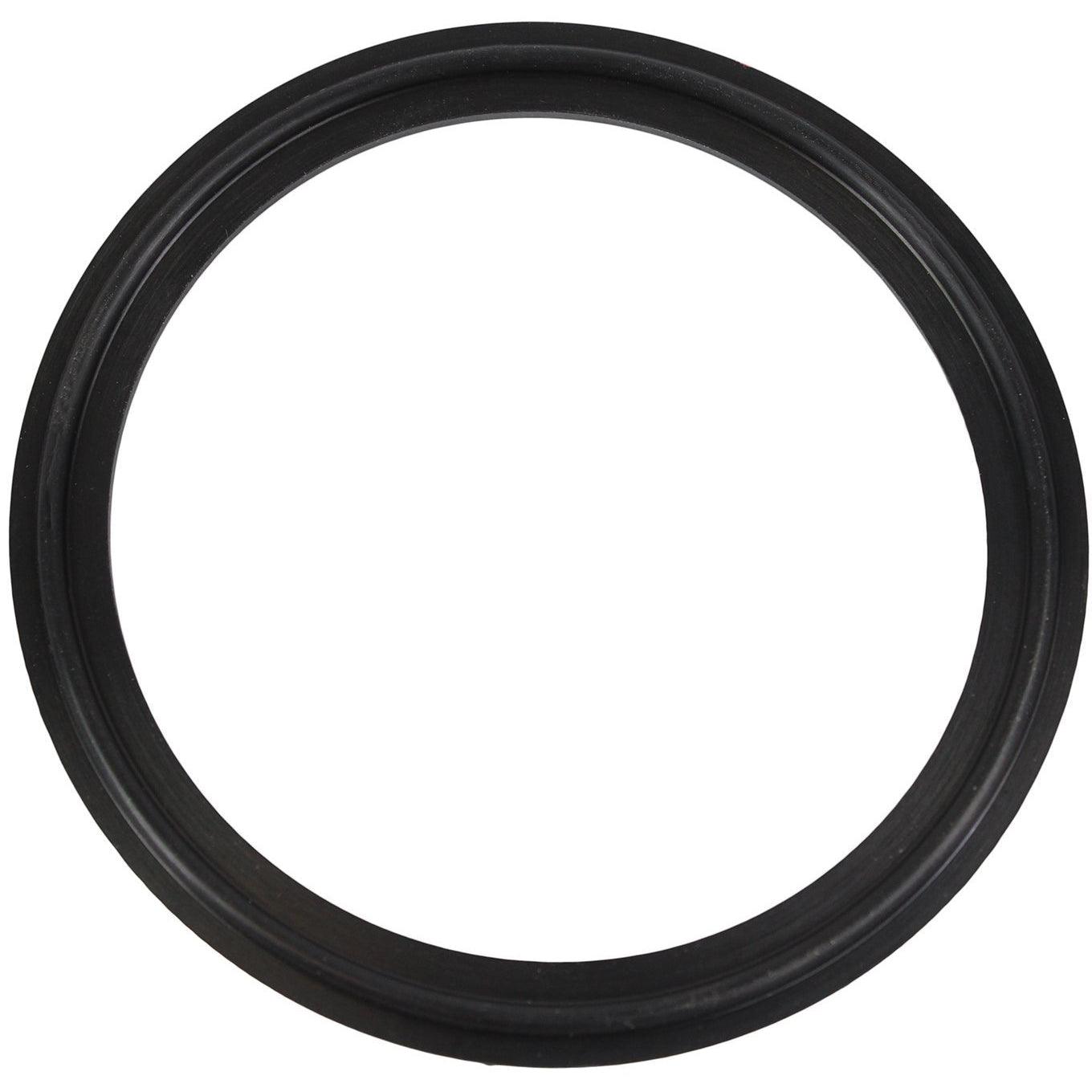

BUNA-N Tri-Clamp Gaskets

$1.00 USD
$1.00 USD
Sale Sold out
Shipping calculated at checkout.

BUNA-N Tri-Clamp Tri Clover Gaskets


Buna-N Tri-Clamp gaskets are the preferred choice of material when using a closed loop, closed column, or open blast extraction when butane or propane are used as the extraction solvent. Buna-N Gaskets offer a lower temperature rating and have better physical properties than Viton gaskets and the best part is that they are also cheaper than Viton and provide the same chemical resistance to butane and propane.


***Note: Buna-N is not recommended for use with certain alcohols.

Key Features:

  • Lower Temperature Range
  • Lower Costs
  • Better Compressibility and Springiness
  • Excellent Resistance to Butane and Propane
  • Better Tear Resistance
  • Better Abrasion Resistance



    Sizes Available:

    • 1.5"
    • 2"
    • 3"
    • 4"
    • 6"
    • 8" - Easy On Flanged
    • 10" - Easy On Flanged
    • 12" - Easy On Flanged


      Technical Specifications:
      Material BUNA-N (Nitrile)
      Color Black
      Connection Type Tri-Clamp
      Conformance FDA Compliant / Meets 3A Standards
      Thermal Properties: -Low Temperature Range -70°F
      -Minimum for Continous Use (Static) -40°F
      -Brittle Point -70°F
      -High Temperature Range +210°F to +250°F
      -Maximum for Continous Use (Static) +250°F
      Gas Permeability Excellent
      Durometer or Hardness Range 65 Shore A
      Tensile Strength Range 200-3500PSI
      Elongation Range (%) 350-650%
      Abrasion Resistance Excellent
      Tear Resistance Excellent
      Resilience / Rebound Good
      Thread Style Female




      Chemical Compatibility:
      Butane A - Excellent
      Propane (liquified) A - Excellent
      Alcohols: -Amyl B - Good
      Conformance -Benzyl D - Severe Effect
      Thermal Properties: -Butyl C - Fair
      -Diacetone D - Severe Effect
      -Ethyl C - Fair
      -Hexyl A - Excellent
      -Isobutyl B - Good
      -Isopropyl B - Good
      -Isopropyl B - Good
      -Methyl A - Excellent
      -Octyl B - Good
      -Propyl A - Excellent



      ***Disclaimer: BVV Recommends no more than a -40F Operating Temperature and is not responsible for the user running their system with incompatible chemicals.
