BUNA-N 100 Mesh (150 Micron)

Regular price $17.00 USD
Regular price Sale price $17.00 USD
Sale Sold out
Shipping calculated at checkout.

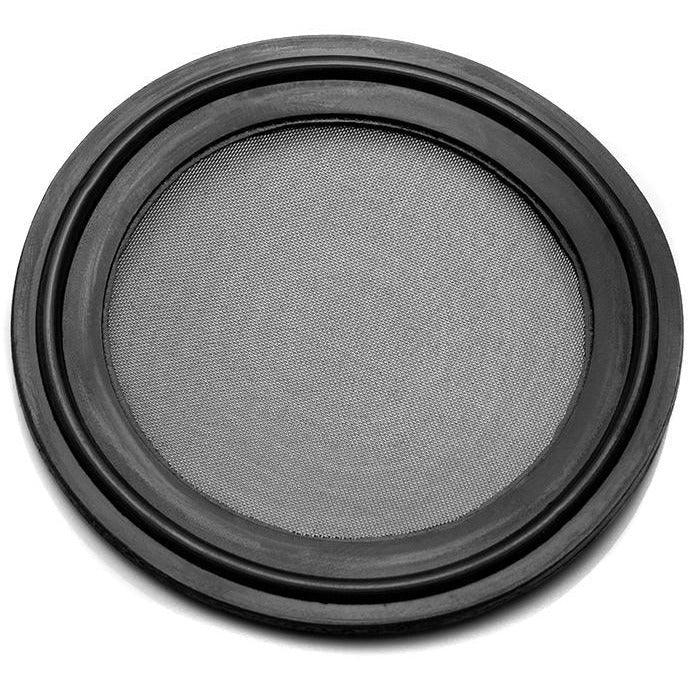

BUNA-N 100 Mesh (150 Micron) Tri-Clamp Gasket


  • MADE IN THE U.S.A
  • Mesh / Micron Filter Chart
  • Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated
  • Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals

Why BUNA-N over Viton?

  • Lower Temperature Range
  • Lower Costs
  • Better Compressibility and Springiness
  • Excellent Resistance to Major/Popular Solvents(Butane/Propane)
  • Better Tear Resistance
  • Better Abrasion Resistance
Specifications
Materials: BUNA-N (Nitrile)
316 Stainless Steel Mesh Overmold
Conformance FDA Compliant / Meets 3A Standards
Thermal Properties: Low-Temperature Range: -70°F
Minimum for Continuous Use(Static): -40°F
Brittle Point: -70°F
High-Temperature Range: +210°F to +250°F
Maximum for Continous Use (Static): +250°F
Gas Permeability: Excellent
Durometer or Hardness Range: 20-95 Shore A
Tensile Strength Range: 200-3,500 PSI
Elongation Range(%): 350%-650%
Abrasion Resistance: Excellent
Resilience / Rebound: Good

Chemical Compatibility
Butane A - Excellent
Propane A - Excellent
Alcohols:
Amyl B - Good
Benzyl D-Severe Effect
Butyl C-Fair
Diacetone D-Severe Effect
Ethyl C-Fair
Hexyl A - Excellent
Isobutyl B - Good
Isopropyl B - Good
Methyl A - Excellent
Octyl B - Good
Propyl A - Excellent
