• Best Value Vacs 7 Gallon Aluminum Vacuum Chamber and V9D 9CFM Two Stage Vacuum Pump Kit - BVV High Desert Scientific
1 2

BVV

Best Value Vacs 7 Gallon Aluminum Vacuum Chamber and V9D 9 CFM Two Stage Vacuum Pump Kit

$705.00 USD
$705.00 USD
Sale Sold out
Shipping calculated at checkout.

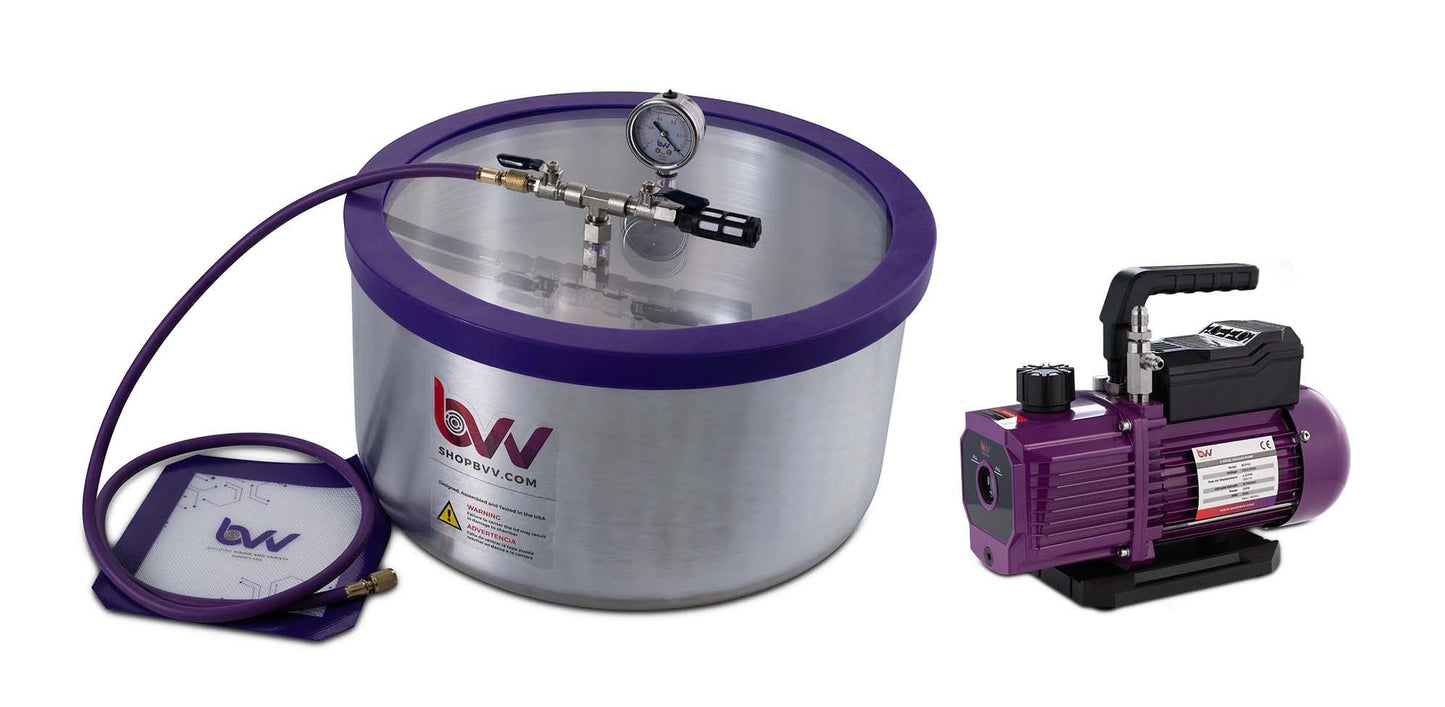

Best Value Vacs 7 Gallon Aluminum Vacuum Chamber and V9D 9CFM Two Stage Vacuum Pump Kit

(Comes with 2 Year Limited warranty)


This is a complete BestValueVac™ vacuum chamber setup designed built and 100% tested in Naperville, Illinois. With our unique patent pending gasket design (Utility Patent #14/533,548) this chamber is sure to last 10,000 uses with proper care and maintenance. The gasket itself is reversible (doubling the life of our system) allowing customers to instantly take it off and flip it over. Every chamber is tested prior to shipping to lose no more than 2.5Hg/24hrs.

-Please Refer to these charts for vacuum specifications at altitude and conversions:


Key Features:

  • Aluminum Vessel
  • Highly Durable and Reversible Silicone Gasket
  • Glycerin filled vacuum gauge
  • User friendly vacuum connections that fit most vacuum pumps on the market
  • 50 Micron Air filter for reducing airborne contaminants when releasing the vacuum
  • Silicone vacuum pad
  • 5' of vacuum rated HVAC hose to pull a vacuum.

Specifications
Chamber Material 3004 Aluminum
Gasket Material Silicone
Lid Material Acrylic
Internal Dimensions (ID) 8" Tall x 16" Diameter
Vacuum Gauge (Glycerin Filled) InHG (0)-(-30)
Manifold Connections 1/4" SAE and 1/4" FNPT
Temperature Rating 150°F (65°C)
Additional Included Items
  • 5' Orange Vacuum Rated HVAC Hose
  • Platinum Cured Silicone Pad
  • Black 50 Micron Air Filter

Models BVV4D BVV7S BVV9D
Stage 2 1 2
Ultimate Vacuum (Microns) 15 75 15
Refrigerant Classes A1 Non-Toxic, Non Flammable
Dimensions (in) 12.4 x 4.8 x 10.16 12.4 x 4.8 x 10.16 15 x 6.3 x 11.22
Weight (lbs) 19.4 16.5 32
Free Air Displacement 4.3 CFM 6.4 CFM 8.5 CFM
Motor Size (HP) RPM 1 HP 3440 RPM
Oil Capacity 10oz / 300ml 14.5oz / 410ml 24oz / 680ml
Voltage 110V 60 Hz
Power Cord Hard Wired 3m / 9.8' Power Cord
Power Switch Standard On / Off
Operating Temperature Range 32F to 125 F (0C to 52C)
Gas Ballast Valve Yes No Yes
Intake Fittings Stainless Steel Inlet Fitting with 1/4" SAE & 3/8" JIC Male Ports


*2 year limited warranty on vacuum chamber

*1 year limited warranty on vacuum pump


Compatibility Explanation:

  • BestValueVac™ Chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone, and acrylic-based monomers or polymers. The lid may only be cleaned with soapy water.
  • ShatterVac™ chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™, etc.), acetone, acrylic-based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.
  • GlassVac™ chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac™ chambers for resin infusion and wood stabilization. The lid may be cleaned with any solvent or cleaning agent.

See FAQ at the top for product safety warnings.
