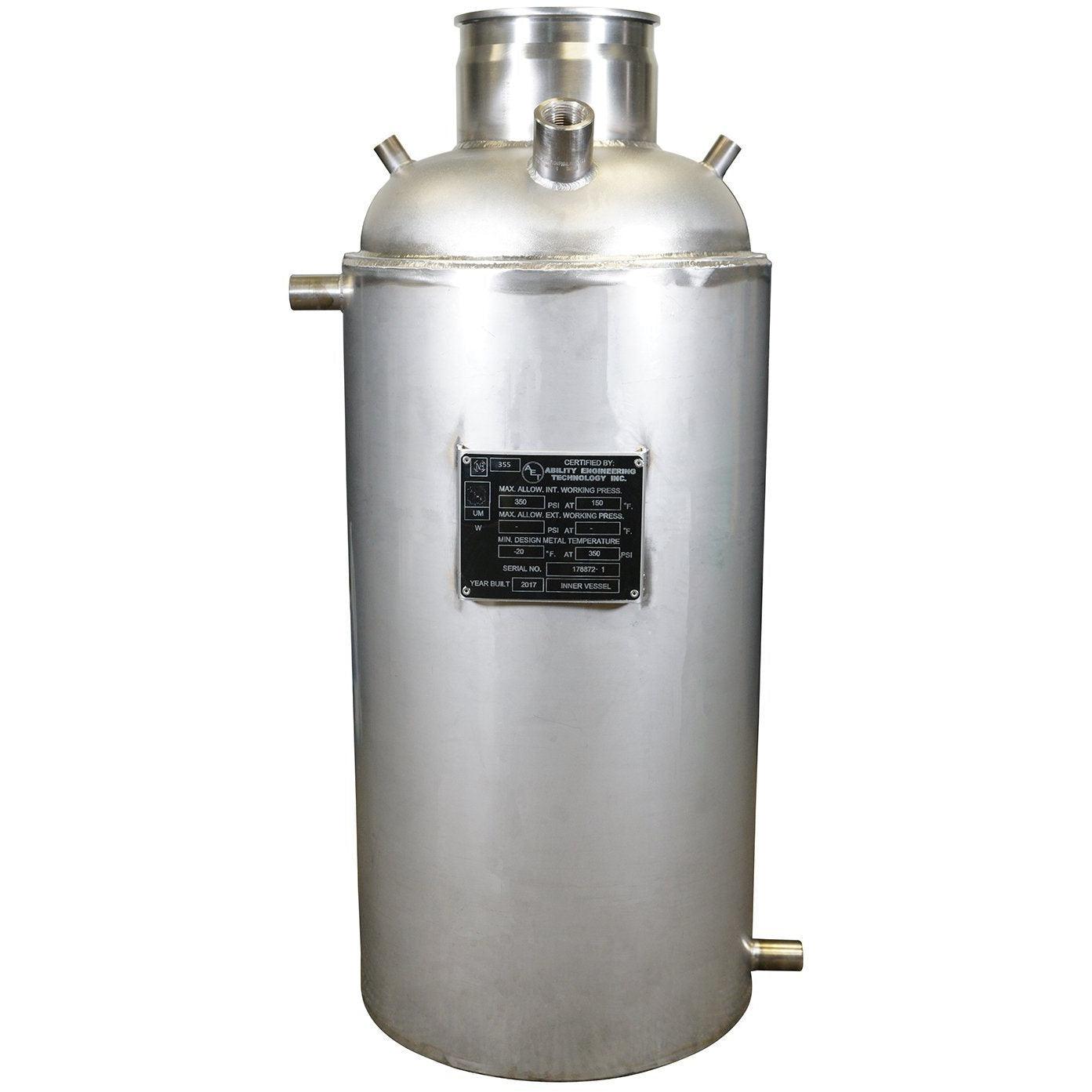

ASME Certified 50L Jacketed Solvent Tank 304L - Bare

$5,750.00 USD
$5,750.00 USD
Sale Sold out
Shipping calculated at checkout.

ASME Certified 50L Jacketed Solvent Tank 304L - Bare


This is a custom manufactured USA made ASME Certified 50LB Jacketed Collection base with UM Stamp and made out of 304L Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold around 50LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system.


**This Item will ship Via FREIGHT ONLY.








































































Specifications
Material 304L Stainless Steel
Certification: ABILITY ENGINEERING TECHNOLOGY INC.
ASME / UM / NB
MAWIWP 350 PSI at 150°F
MAWEWP N/A
MIN TEMP -20°F at 350PSI
Butane Capacity ~50LBS
Connection Sizes: 6" Tri-Clamp
(2) 1" NPT
(2) 1/2" NPT - Outer Jacket Ports
(2) 3/8" NPT
Weight 146LBS
Outer Dimensions: 32-7/8" Tall
14" Diameter
Inner Dimensions: 24" Tall
12" Diameter
