Across International

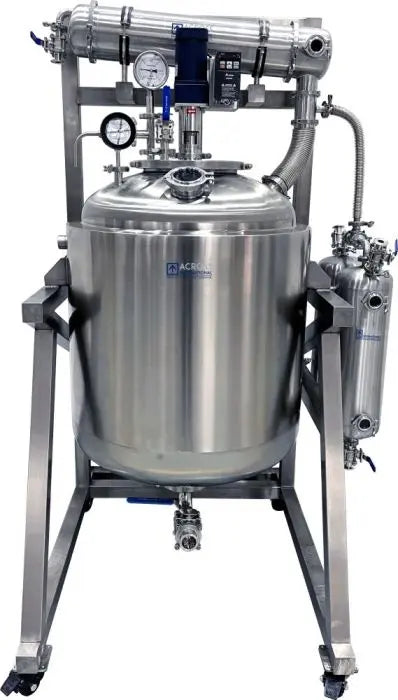

Ai Dual-Jacketed 300L 316L-Grade Stainless Steel Reactor

$29,990.00 USD
$29,990.00 USD
Sale Sold out
Shipping calculated at checkout.

Ai 316L Grade Stainless Steel Reactor Features

  • Side-way condenser for low center of gravity
  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger for the best condensing results
  • ElectroPolished internal chamber
    • Greatly reduces surface roughness by leveling micro-peaks and valleys
    • Improved vacuum pressures, out-gassing rates, and pumping speed
    • Prolong equipment lifespan by reducing friction and wear
    • Much better sterilized and semiconductor grade surface
    • Essential for the food and pharmaceutical industries
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12" bottom 6") allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Positive/negative pressure gauge
  • Matte finish stainless steel
  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage

CAUTION!

  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits

SPECIFICATIONS

Model
 SR300
Electric stirring motor



 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP
Rotation: 450 rpm max. (±8%)
Starting torque: 3.0 N.m
Rated torque: 1.54 N.m
Built-in gearbox ratio: 3:1 to 180:1
Controller: Delta, UL listed
Pneumatic stirring motor - Power: 1/4 HP
- Rotation: 450 rpm max. (±8%)
- Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)
- Working temperature: -10C to +70C
- For constant use: set rpm to 80% of maximum rpm
- Motor lubricant
  • DaphneEponexEP-No. 1
  • Check/replenish/replace every 500 hours
- Air lubricant
  • Type: JIS K2213-1 (ISOVG32)
  • Recommended products: ShellVitreaOil 32, JOMO Turbine 32, COSMO Turbine 32
  • Speed: 2-3 drops per minute
- For safety purpose, detach compressed air supply when not in use, left un-attended or at night
- Do not run motor un-loaded
- Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM
- Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.
- Make sure exhaust port/hole is clear from any debris or blockage
- Check every 2-3 days: Air Lubricant, Air Filter water drain
Port configuration
 Lid: 6" triclamp
Center motor port: 3" triclamp
Drain port: 6" triclamp
Drain port on/off valve: 2" triclamp
Vacuum port: 1.5" triclamp
Condenser recirculating fluid port: 1/2" female NPT
Vessel jacket recirculating fluid port: 1" female NPT
50L/100L collection tank lid: 6" triclamp x 1, 1.5" triclamp x 4
Main vessel
 Volume: 300L
Material: 316L grade stainless steel
Interior finish: ElectroPolished
Agitator Structure: propeller, 3-blade, dual-layer
Material: 316L grade stainless steel
Center fluid jacket Volume: 60L
Material: 304 grade stainless steel
Outer insulation jacket Sealed
Material: 304 grade stainless steel
Collection tank Option 1: 20L x 2, 316L stainless steel, with manifold
Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly)
Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly)
Material
 All wetted parts 316L grade stainless steel on main reactor body
Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis.
Main Condenser

 Style: shell and tube heat exchanger
Number of tubes: 110
Condensing area: one sq meter
Pressure

Ultimate vacuum level: 1 Torr

Temperature range

 -55‚àûC to +250‚àûC (-67‚àûF to +482‚àûF)

Temperature sensor/display

 Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp

Sealing gasket

 Food grade Viton
Main Mounting Frame Heavy duty 2.5 x 2.5" 304 grade stainless steel, mounted on four casters
Drain port ground clearance Drain port: 19.5 inches
Drain valve: 14 inches
Shipping Weight (Unit)
 770 Lbs / 990 Lbs
Shipping Dimensions 48 x 38 x 88" (WxDxH)

SR300 Stainless Steel Reactor with Reflux Condenser

Shell and Tube Heat Exchanger
