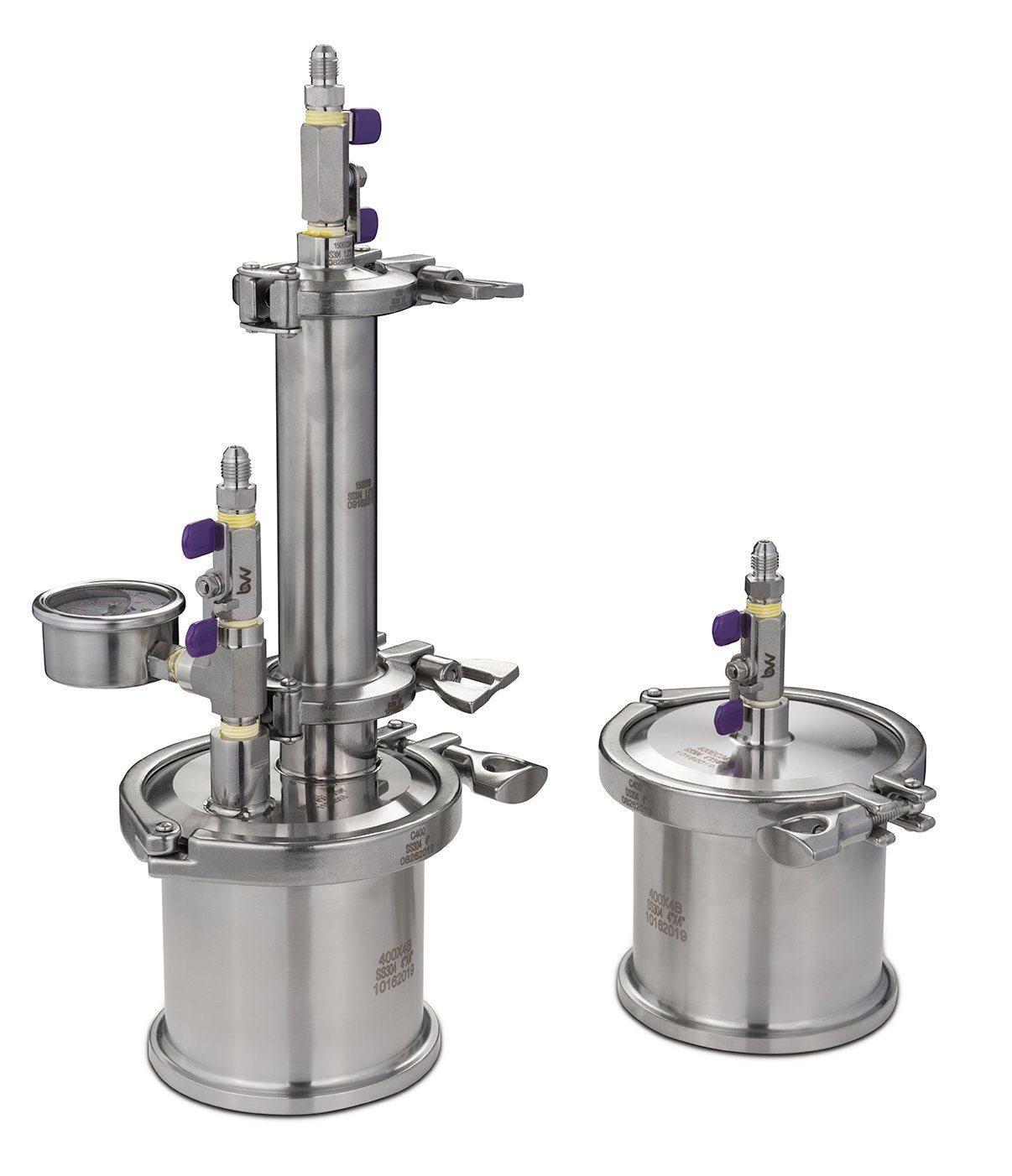

45G Mini Top Fill Closed Loop Extractor

***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.

***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty)

45G Mini Top Fill Closed Loop Extractor

(Comes with 1 yr Limited Warranty)

What's a 45G Mini Top Fill Closed Loop Extractor?

45G Mini Top Fill Closed Loop Extractor is an excellent extraction system for small personal test runs. Since it's a smaller version of our standard top-fill closed loop extractor, it's great for beginners while still maintaining all the bells and whistles. Our extractor is even the perfect size for a tabletop!

How Does the 45G Mini Top Fill Closed Loop Extractor Work?

The top-fill closed loop extractor is the safest way to do hydrocarbon extraction. First, solvent washes through the material column and collects oils as it passes over the material. Then, the oil-bearing solvent is collected in the collection base. Once collected, the solvent in this passive unit is distilled and recovered using temperature manipulation. This is what leaves oils behind in the collection base.

What's Included in the 45G Mini Top Fill Closed Loop Extractor?

• High-Pressure PTFE Braided Stainless Steel Hose
• Standard Pressure Tri-Clamps
• Full set of BUNA-N gaskets
• Includes 100 Mesh (150 Micron) gasket for the material tube
• Can Tap Tool
• Instruction Manual
• 1 Year Limited Warranty and Customer Service

45G Mini Top Fill Closed Loop Extractor System Specifications

• 1.5"x 6" 304 Stainless Steel Material Tube
• 304 Stainless Steel Heavy Duty Miniature Ball Valves
• System Rated to 100PSI
• Multiple port connections for any 316 Stainless SAE 37 Degree
• 304 Stainless Steel Base Container 4" diameter by 4" tall
• Tri-Clamps at all interfaces for high pressure, easy-clean unit
• High-Quality BUNA-N Gaskets designed for oil processing
• Operating Temperature Range: -40°F to 160°F
• Ultimate Vacuum: as low as 10 Microns
• Designed to run a single can of solvent and reclaim it
• Max fill is 350 ml
• Construction: All major components made of 304 Stainless Steel
• Max Vacuum -29.9inHg
• High Polish Interior

Mini CLS / Mini XL Upgrades

Explorer

Our most standard and economical setup. It's perfect for entry-level extractors on a budget. It comes with a welded bottom base and stainless reclaim container. This model has minimal features to keep costs low while providing the necessary equipment to get the job done.

Includes:

• Standard Valves
• Welded Bottom Base

Professional

This model features upgrades for easier extraction. An inline ball valve allows the solvent to be suspended in the material column and closes the collection base during recovery. The removable bottom to the collection base makes extract removal simple.

Includes:

• Standard Valves
• Ball Valve
• Splatter Platter Base

Notes and Disclaimer(s):

Please note: The solvent Butane isn't included with any of our systems unless ordered separately or by using the dropdown menu. Orders containing butane won't ship expedited.

Also, column capacity may vary. Capacity is calculated using the industry standard of 4.2g/in3 as the upper limit. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend tightly packing coarse ground material.

Shop all Closed-Loop Extractors

Disclaimers: This unit is intended for legal purposes only while following local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors.

Explorer	Professional
Standard Valves Welded Bottom Base	Standard Valves Ball Valve Splatter Platter Base

System Specifications:

• 1.5"x 6" 304 Stainless Steel Material Tube
• 304 Stainless Steel Heavy Duty Miniature Ball Valves
• System Rated to 100PSI
• Multiple port connections for _" 316 Stainless SAE 37 Degree
• 304 Stainless Steel Base Container 4" diameter by 4" tall
• Tri-Clamps at all interfaces make for a high pressure, easy-clean unit.
• High-Quality BUNA-N Gaskets are designed for Oil Processing
• Operating Temperature Range: -40F to 160F
• Ultimate Vacuum: as low as 10 Microns
• Designed to run a single can of solvent and reclaim it (350ml) Max FILL!!
• Construction: All major components made of 304 Stainless Steel.
• Max Vacuum -29.9inHg
• High Polish Interior

What's Included:

• High-Pressure PTFE Braided Stainless Steel HoseStandard Pressure Tri-Clamps
• Full set of BUNA-N gaskets including the 100 Mesh(150 Micron) gasket for the material tube is included
• Can Tap Tool
• Instruction Manual
• 1 Year Limited Warranty and Customer Service

*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.
