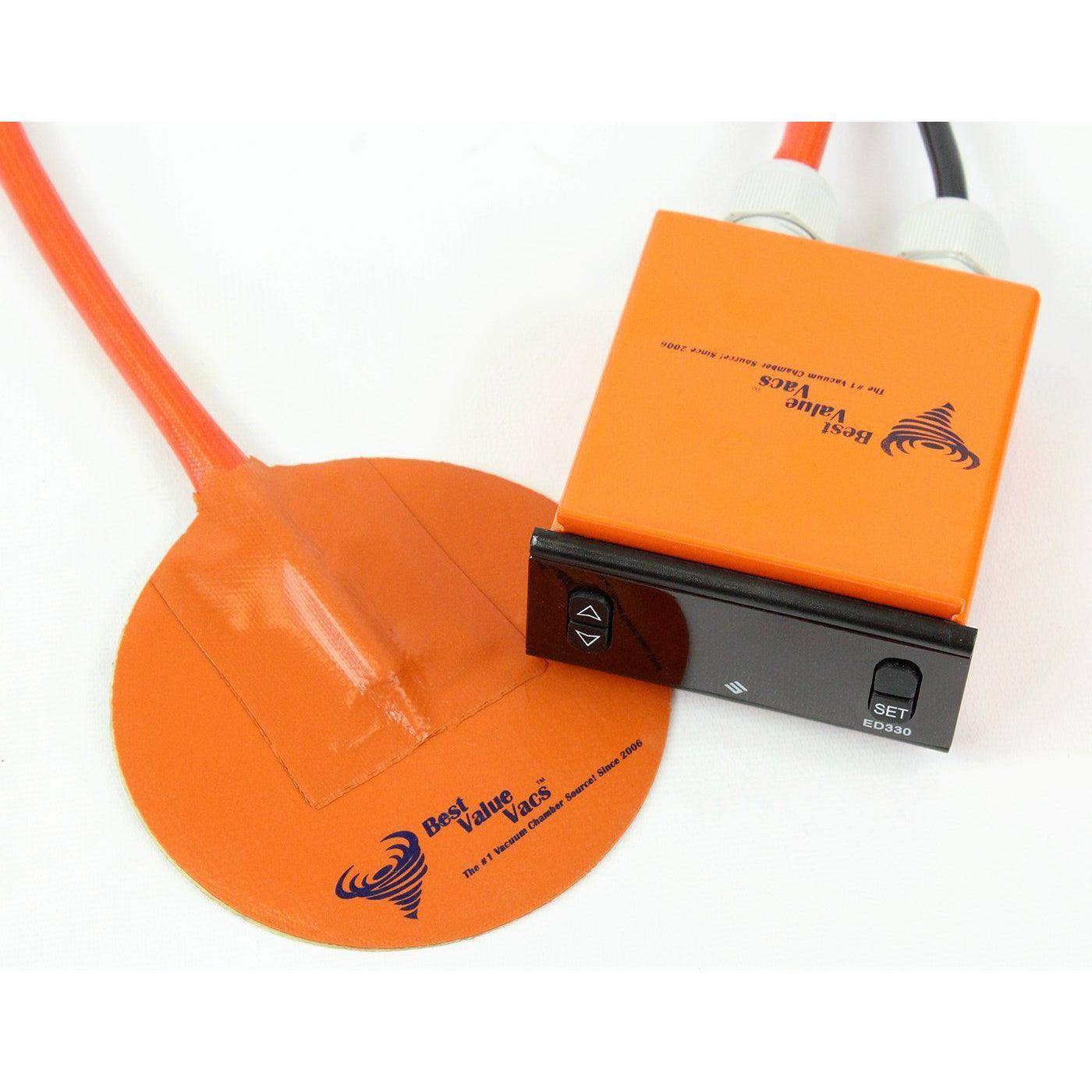

4" Vacuum Chamber Digital Heat Pad

Chamber NOT Included, Sold Separately. Heat Pad must fit correct size of the chamber! Fits a 2QT chamber, and a Mini Extractor Base

This Digital Heat Pad will adhere to the bottom of a chamber vessel with a peel and stick backing.

This unit will hold a temperature within a degree to the set temperature (dependent on the environment and air movement).

The temperature offset must be found to set the controller accurately. (See ‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂‚Äö√¢ßOperation' instructions in the operation manual)

Included with this Digital Heat Pad:

• Instructions on how to operate and set parameters.
• Simple standoff bumpers (provide thermal separation between the vessel and the work surface)
• Thermal tape (best method to check and verify temperature)

Specs:

• UL Listed Fahrenheit Digital Controller.
• Min Temp: Ambient + 5
• Max Set Temp: 160°F
• Ultimate Max Temp: 248°F
• Voltage: 110VAC Only
• Power Consumption: 220-watt
• Digital Control: Increments of 1 Degree.
• Accuracy: +/- 0.2 Degrees
• Units: Degrees Fahrenheit
• Instructions: Fully included
• Relay Lifespan: Approx. 10 million cycles
• User can reprogram: Yes
