BVV

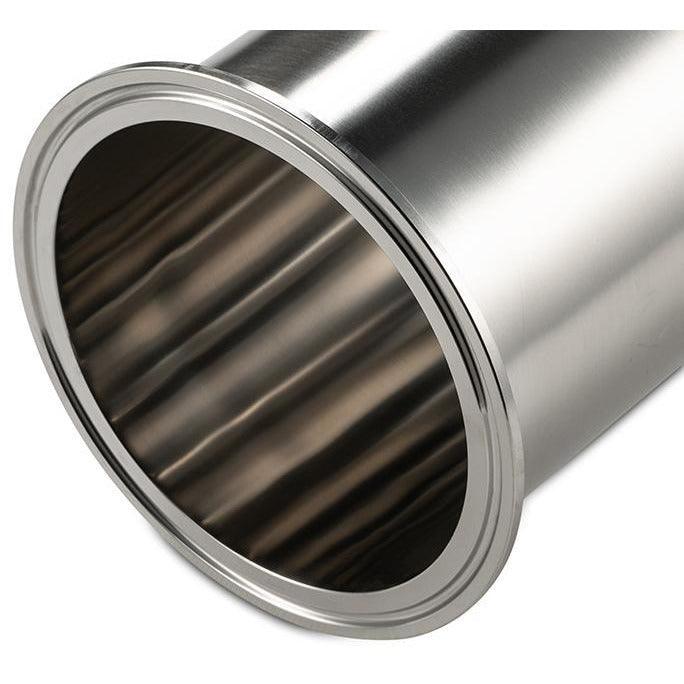

4" Tri-Clamp Spools

$35.00 USD
$35.00 USD
Sale Sold out
Shipping calculated at checkout.

4" Tri-Clamp/ Tri Clover Spools


Sizes Available:

  • 4" x 2" Tri-Clamp Spool
  • 4" x 4" Tri-Clamp Spool
  • 4" x 8" Tri-Clamp Spool
  • 4" x 12" Tri-Clamp Spool
  • 4" x 18" Tri-Clamp Spool
  • 4" x 24" Tri-Clamp Spool
  • 4" x 36" Tri-Clamp Spool
  • 4" x 48" Tri-Clamp Spool

Specifications
Tri-Clamp Size 4"
Material 304 Stainless Steel
Standard 3A High Polish
Spool OD 4"
Spool ID 3.834"
Flange OD 4.682"
Bead Center 4.344"


OD = Outer Dimension


ID = Inner Dimension



Disclaimer to Customer:


User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.

Cylinder Volume



Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =


Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material

Cans of Butane by Size


mL fl oz lbs # of Cans
420 14.2
300 10.1
200 6.7
150 5.07
