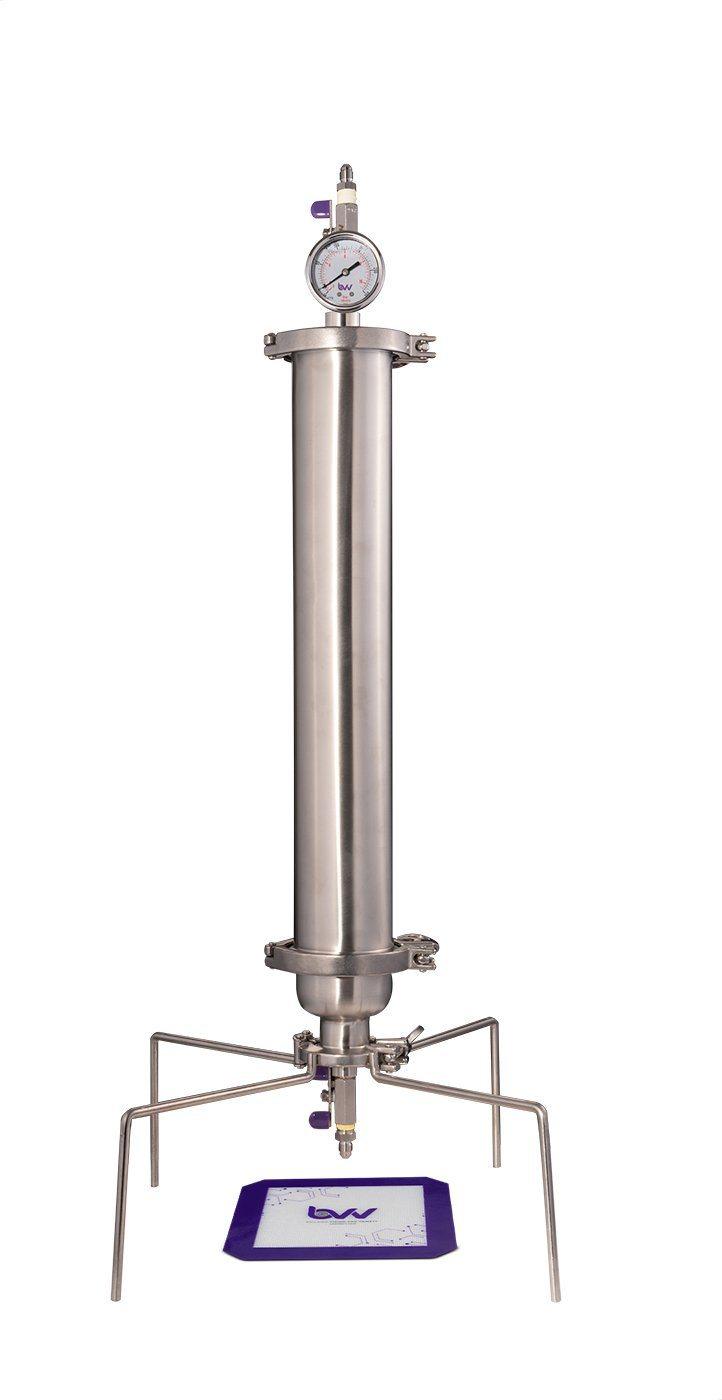

3" Standard Closed Column Extractor 180G-2LB

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. DO NOT USE INDOORS

3" Standard Closed Column Extractor 180G-2LB

Key Features and Description:

• Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)
• Compound Gauge with (-30)-160 PSI readout.
• This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum and filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the pressure of the can propellant.
• The solvent can will fit into either port with a tip adapter supplied with some butane cans, tip adapter required, not included
• Solvent Soak is expected to be between 30-90 min, but this all depends on material, starting with frozen cans of solvent is recommended
• This system allows the user to soak the material before opening the bottom valve to release the solvent and oil.

Professional Kit Adds the following:

• Compound Gauge
• Sight Glass
• Shower Head

Explorer Kit Includes the Following:

• 8" x 8" Platinum Cured Silicone Non-Stick Pad

• 3" Tri-Clamp 304 Stainless Steel Material Tube

Spool Sizes Specifications:

• 3" x 6" = 180G
• 3" x 12" = 350G
• 3" x 24" = 1LB
• 3" x 36" = 2LB

• 304 Stainless Steel Flare End Caps with Heavy Duty Stainless Steel Miniature Ball Valves

• Hemispherical Reducer

• (2) 3" Standard Pressure Tri-Clamp Clamps

• 1.5" Tri-Clamp Quadpod

• (2) Buna-N Tri-Clamp Gaskets

• Buna-N 100 Mesh (150 Micron) Gasket

*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.

***Note: Parts and components can be subject to substitutions. Any substituted parts will have the same function and will be of equal or greater value.****
