Summit Research Tech

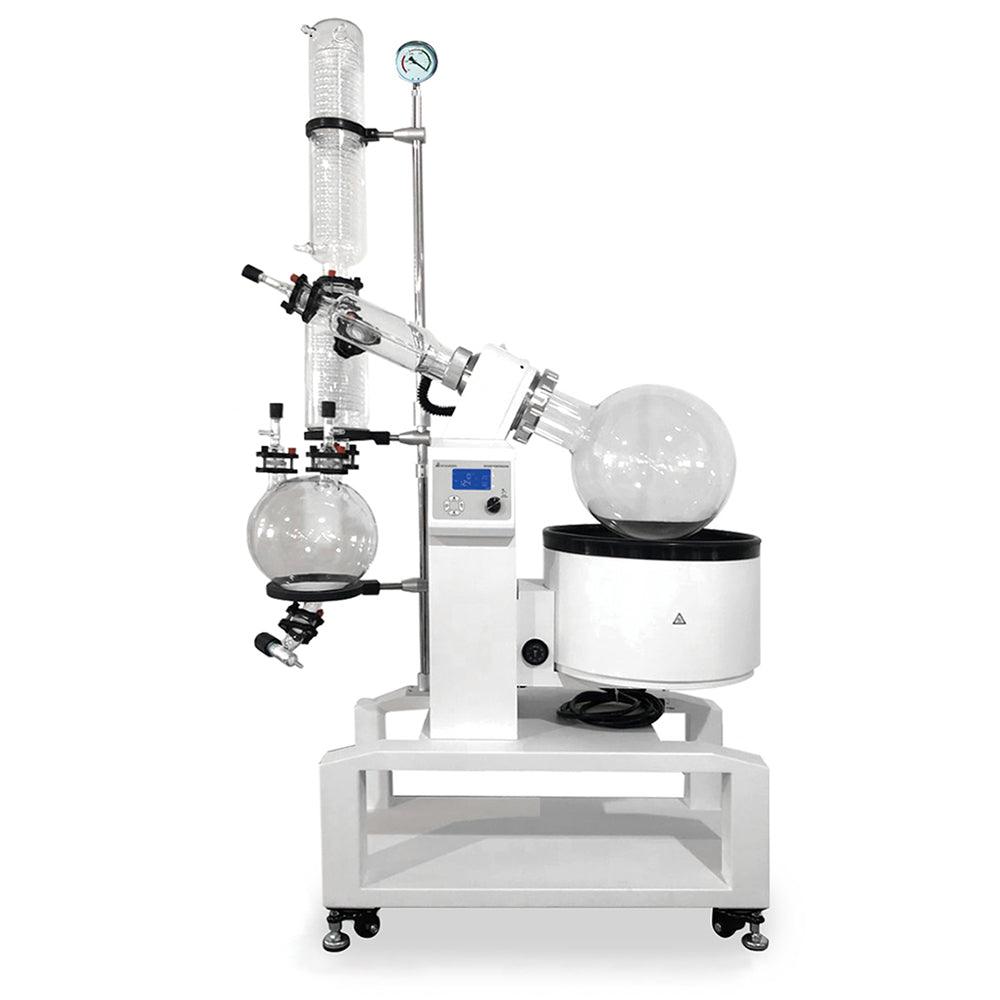

20L SH Roto ETL

Regular price $6,490.00 USD
Regular price $9,000.00 USD Sale price $6,490.00 USD
Sale Sold out
Shipping calculated at checkout.

$9,000.00 $6,490.00

Model SH 20L Roto
Speed-regulation of main machine LCD Display, variable frequency, stepless speed regulation
Rotary speed Maximum 120rpm
Rotating motor 60W
Evaporating capability Water‚â•3.8 : Alcohol‚â•7.6 (L/H)
Achievable vacuum Below 399.9Pa
Water bath temperature range Ambient - 180°C
Constant-temperature resolution ±1°C
Power supply Single phase 220V 60Hz
Heater wattage 5kW
Condensing tube type Standing, main+ auxiliary cooling and highly efficient 3 circulating cold trap
Condensing area main : 0.8m2‚Äö√†√∂‚àöß auxiliary : 0.39m2‚Äö√†√∂‚àöß
Rotary bottle 20L
Collecting bottle 10L
Vacuum sealing Double sealing rings (Teflon) + Viton materials
Water bath size _450x260mm / _18x10"
Water bath material Stainless water bath
Water bath volume 41L
Environment temperature 5-35°C

PDF Diagram

To purchase, please contact High Desert Scientific at 541-728-3725 or by eMail. Items ship 1-3 days after orders have been processed unless otherwise specified. Price does not include shipping and will be included in your final estimate before processing.
