150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp Port and Locking Casters

$3,450.00 USD
$3,450.00 USD
Sale Sold out
Shipping calculated at checkout.

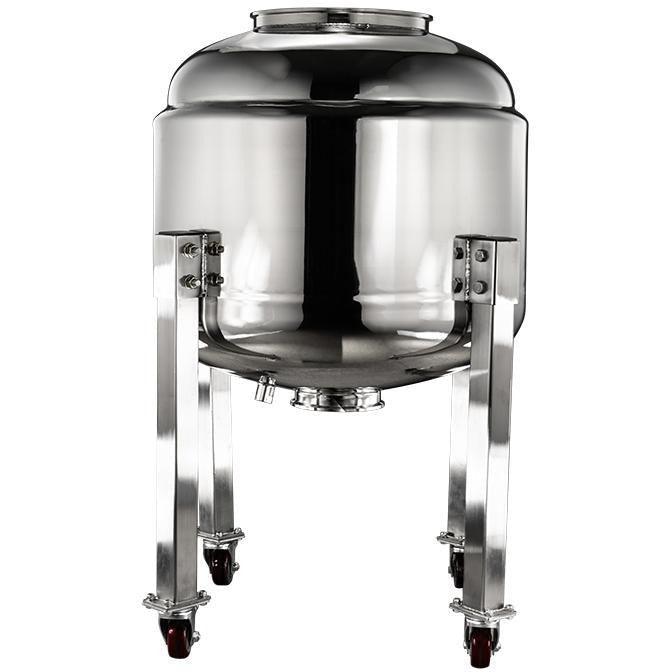

150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp/ Tri Clover Port and Locking Casters

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a 12" Tri-Clamp port on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.

Specifications
Material 304 Stainless Steel
Pressure Rating 150 PSI MAX
Connection Type(s): 12" Tri-Clamp Top Port
6" Tri-Clamp Bottom Port
(2) 1/2" FNPT Ports on the Jacket

***Note: This item will ship via freight ONLY.
