BVV

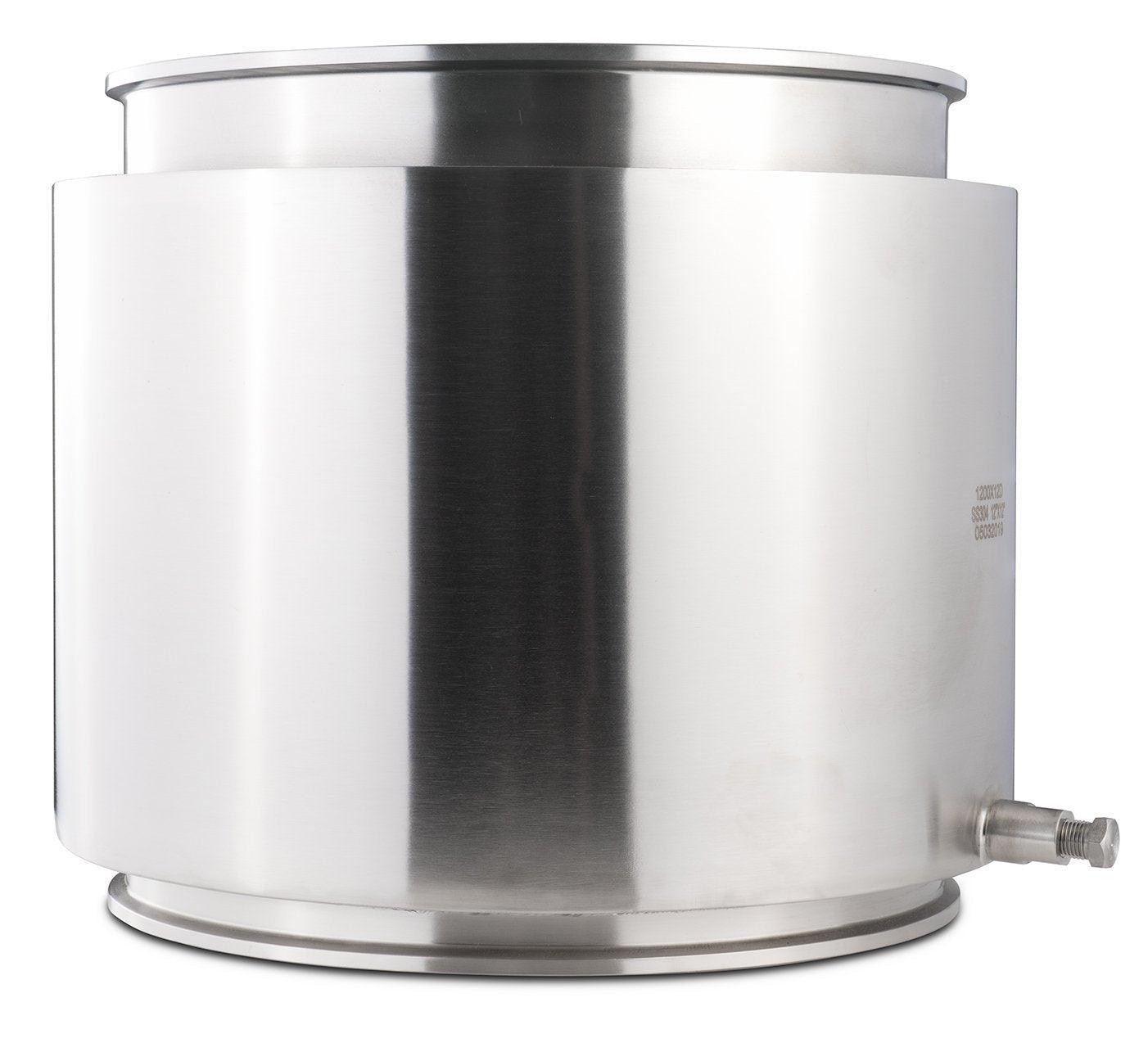

12" Tri-Clamp Dewaxer Columns

Regular price $570.00 USD
Regular price Sale price $570.00 USD
Sale Sold out
Shipping calculated at checkout.

12" Tri-Clamp/ Tri Clover Dewaxing Columns



This is a 12" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.


**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD



Sizes Available:



    • 12" x 12" Tri-Clamp Dewaxer Column

Specifications:









































Tri-Clamp Size 3"
Material 304 Stainless Steel
Standard 3A High Polish
Sleeve OD 14.000"
Spool ID 11.732"
Spool OD 12"
Flange OD 12.57"
Bead Center 12.17"
Drain Port 1/4"-18 FNPT (Drain Plug Included)



    • OD = Outer Dimension

    • ID = Inner Dimension


Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
