BVV

Buy 10 Gallon Resin Trap Vacuum Chamber for Sale

Regular price $290.00 USD
Regular price Sale price $290.00 USD
Sale Sold out
Shipping calculated at checkout.

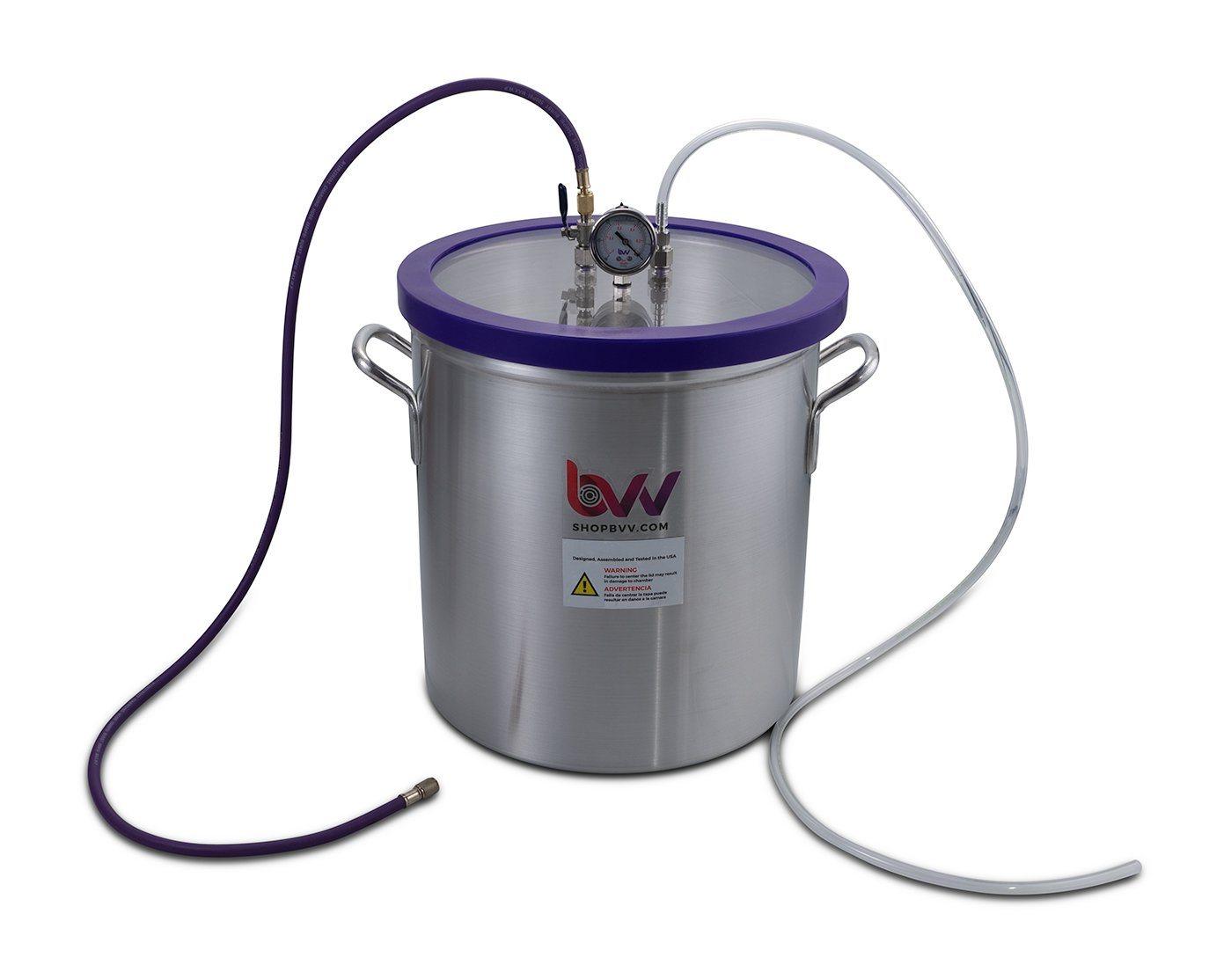

10 Gallon Resin Trap Vacuum Chamber



(Comes with 2 Year Limited warranty)


Resin Trap Vacuum Chamber

It's frustrating. You buy a resin trap, but it's not strong enough to retain a vacuum. Or worse, the machine breaks apart.

Now you probably have several new devices lying around (what a loss!). But this doesn't have to be the case; you deserve a quality machine. And here's how:

The resin trap vacuum chamber is a premium appliance from the top brand, BVV. But you might wonder, what makes this vendor different from the others?

This apparatus has a reversible gasket design, allowing tens of thousands of uses. And for that utility, you can easily take that seal off and flip it over. Also, the lid enables more versatility because it can handle high temperatures without glitches (max temp. of 390°F).

So, you'll be making premium concentrates and distillates at a cost-effective price. Also, you'll smooth line extractions and cut production costs because the machine holds the vacuum for an extended period. This benefit is because of the proper fitting gaskets, which prevent leaks.

Sure, those benefits are all good, but what about the efficiency and durability?

The device's technology helps you maintain optimal vacuum pressure. And this effect is no surprise coming from a reputable manufacturing company with decades of experience. This distributor also makes the machine parts with aluminum, fostering long-term use.

A resin trap helps you maximize profits by reducing losses. To illustrate, you'll preserve your expensive resin's quantity, quality, and value with this machine.

And you'll cut maintenance costs and reduce repair downtime when processing. Think about isn’t that a wise investment?

The vacuum chamber resin helps you handle more material through the 10-gallon capacity. Moreover, this appliance is easy to use and clean. Experts recommend washing wax on metal parts with isopropyl alcohol and the non-metal components with D-limonene.

Undoubtedly, this machine is impressive. Enhance your production quality with the resin trap vacuum chamber now!

Designed, built, and 100% tested in Chicago, Illinois, the Resin Trap Vacuum Chamber is the perfect application for a successful, high-quality end product. With its unique, patent pending gasket design (Utility Patent #14/533,548), this shatter chamber can easily withstand 10,000 uses with proper care and maintenance.

The gasket itself is reversible, doubling the system's life by allowing customers to instantly take it off and flip it over. No adhesives necessary.

The maximum allowed temperature of this chamber is 160f. The individual components of this chamber are rated at higher temperatures, however, as a vacuum vessel, we limit maximum operational temperature to 160f. Every chamber is tested prior to shipping to lose no more than 2.5inHg/24hrs.



Specifications
Key Features:
  • Comes with 2 year limited warranty
  • Resin traps come complete with glycerin-filled vacuum gauge, fittings for use with 1/4" vacuum tubing, nickel plated brass ball valve and instruction manual.
  • Capture excess resin and protect your pump!
  • Unique Catch Port Design: An additional hose can be installed at the port inside the tank to facilitate accurate collection of resin.
  • 5 Feet Reinforced Vacuum Hosing to Connect Directly to the Vacuum Pump 1/4" SAE port.
  • Measuring range of vacuum gauge‚Äö√†√∂‚àö√Ü‚Äö√†¥‚Äö√†√∂‚Äö√†√á0-29.25inHg
  • Silicone gasket to be used over 10,000 times without deterioration.
This Kit Includes:
  • (1) 10 Gallon Aluminum Chamber
  • (1) Industrial grade silicone gasket
  • Gasket can withstand 390°F max temp.
  • 60A durometer density
  • (1) Glycerin filled vacuum gauge (must be regulated upon arrival)
  • Max vacuum -29Hg (+/-.5Hg) at sea level
  • (1) Leak free nickel plated 1/4" Hvac Flare Valve
  • (1) Æ‚Äö√†¥" Barbed Connection
  • (1) 5' Purple BVV™ Hvac Hose
  • (1) 5' Clear Vacuum Tubing
Internal Dimensions: 15" Tall x 14" Diameter



Compatibility Explanation:

  • BestValueVac™ Chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), alcohol, ethanol, acetone and acrylic based monomers or polymers.The lid may only be cleaned with soapy water.
  • ShatterVac™ chambers are not compatible with stabilization resin (i.e. Cactus Juice™, Gator Venom™, Minwax™ etc.), acetone, acrylic based monomers or polymers. The lid may be cleaned with soapy water and low strength cleaning agents.‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´¢
  • GlassVac™ chambers are compatible with all solvents and stabilization resins. We only recommend and warranty GlassVac™ chambers for resin infusion and wood stabilization. The lid may be cleaned with any solvent or cleaning agent



Pump Facts:

  • We recommend the oil is changed every 50-75 of operating hours.
  • CFM is a measure of cubic feet per minute.
  • Single stage pumps reach a max vacuum of 50-75 microns (0=complete vacuum).
  • Dual/Two stage pumps reach a max vacuum of 10-15 microns (0=complete vacuum).





See FAQ at the top for product safety warnings.

For shipping info including Import/Export details visit our Shipping link at the bottom of the page.
