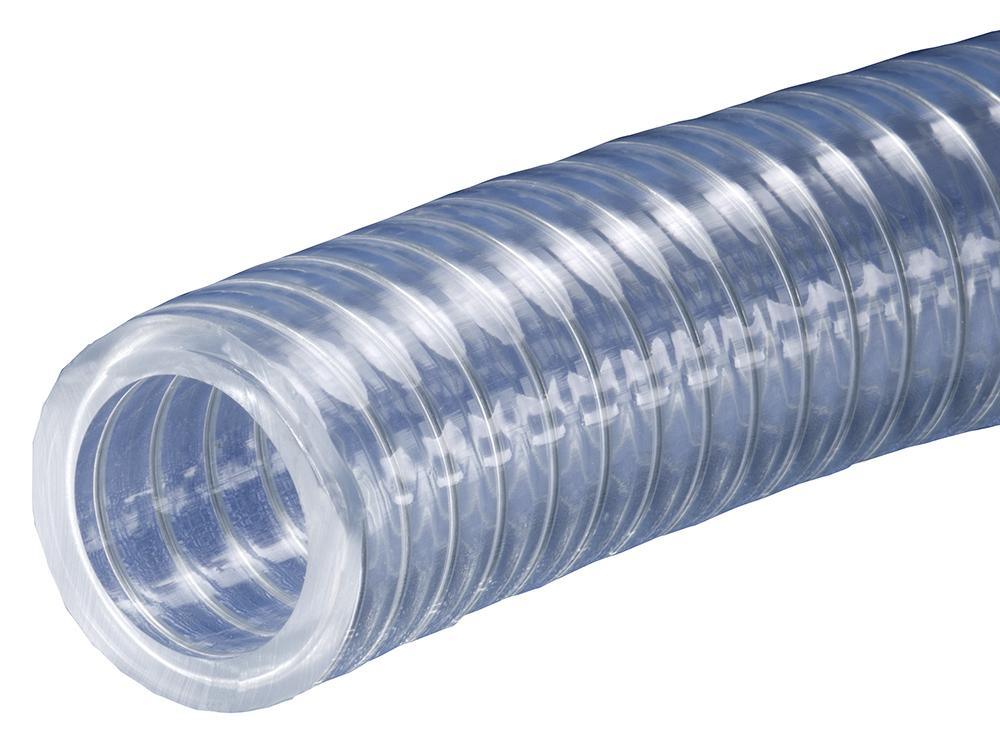

1" ID Heavy Wall Reinforced Clear PVC Vacuum Hose

1" ID Heavy Wall Reinforced Clear PVC Vacuum Hose

Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13), UL(17), USP(19) and RoHS(16) criteria. Reinforced with helically-wound spring steel wire.

Key Features:

• Vacuum Rated to 29.9" HG @ 70°F

• Spiral wire reinforcement prevents kinking or collapsing and prevent expansion under higher pressure applications

• Crystal clear tubing allows visual confirmation of product flow

• Glass smooth interior prevents build-up of material inside the tubing

• Electrogalvanized helical steel wire can be used for static dissipation. (This product is designed to dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means

• Resistant to wide range of chemicals

• Self extinguishing

• Non-marking

• Silicone Free

• Phthalate Free!

Common Applications:

• Full Vacuum Lines

• Industrial Vacuum Pumps

• Food and beverage dispensing

• Air and water supply lines

• Pneumatic parts transfer

• Car wash applications

• Coolant lines

• Air breathing lines

• Deionized water systems
• Pneumatic parts transfer
• Deionized water systems

Specifications
Series	K7130
Sized Code	16
Service Temperature Range	25 to 150°F (-4 to 65°C)
Nominal ID	1" (25.4mm)
Nominal OD	1.375" (34.9mm)
Max Working Pressure @ 70°F (20°C)	100 Psi
Max Working Pressure @ 122°F (50°C)	50 Psi
Standard Length Coils	100ft
Approx. Wt. per Pkg.	44lb
Brand	Kuri Tec™
Packaging	Coils
Material	PVC
Min. Bend Radius @ 70°F	1"
Type	Reinforced Water Supply and Food Grade Hose
Reinforcement Material	Helically-wound spring steel wire
Color	Crystal Clear
Weight per Foot	0.44lbs/ft
Performance	Heavy Wall Clear PVC wire reinforced for vacuum
