1.5" Tri-Clamp Dewaxer Columns

$100.00 USD
$100.00 USD
Sale Sold out
Shipping calculated at checkout.

1.5" Tri-Clamp/ Tri Clover Dewaxing Columns

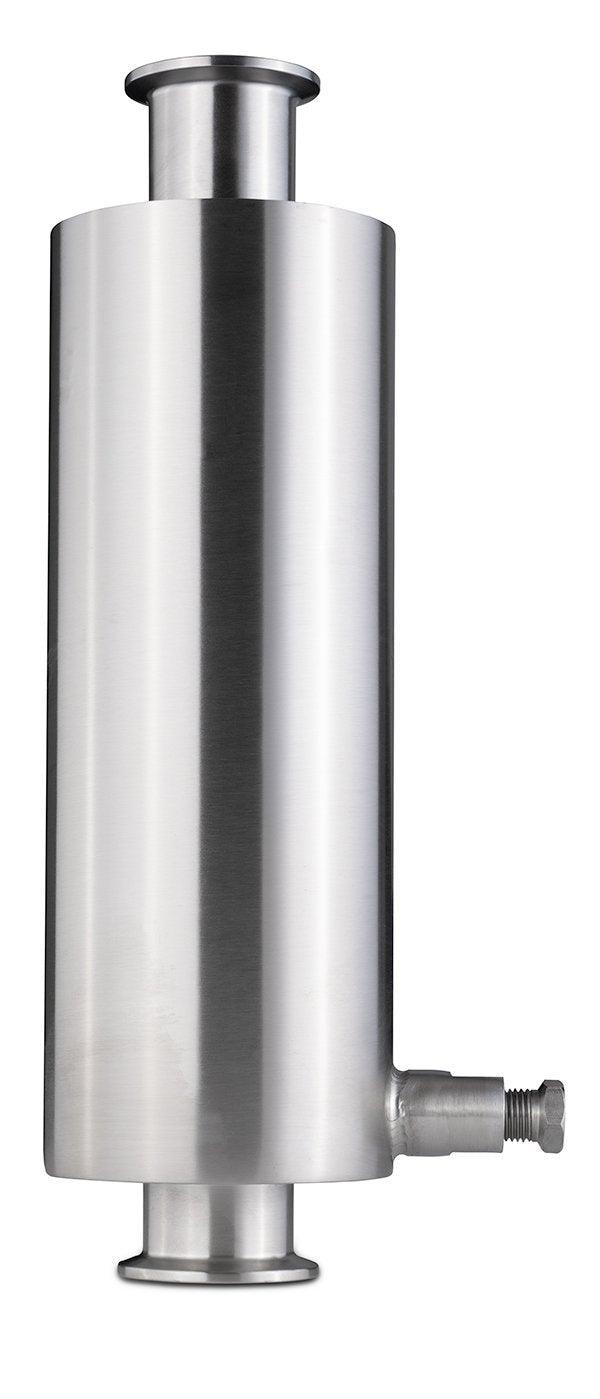

This is a 1.5" Tri-Clamp/ Tri Clover BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.


**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD



Sizes Available:



    • 1.5" x 12" Tri-clamp Dewaxer Column

    • 1.5" x 18" Tri-clamp Dewaxer Column

    • 1.5" x 24" Tri-clamp Dewaxer Column

    • 1.5" x 36" Tri-clamp Dewaxer Column


Specifications:









































Tri-Clamp Size 1.5"
Material 304 Stainless Steel
Standard 3A High Polish
Sleeve OD 3.500"
Spool ID 1.370"
Spool OD 1.500"
Flange OD 1.984"
Bead Center 1.718"
Drain Port 1/4"-18 FNPT (Drain Plug Included)



    • OD = Outer Dimension

    • ID = Inner Dimension


Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
