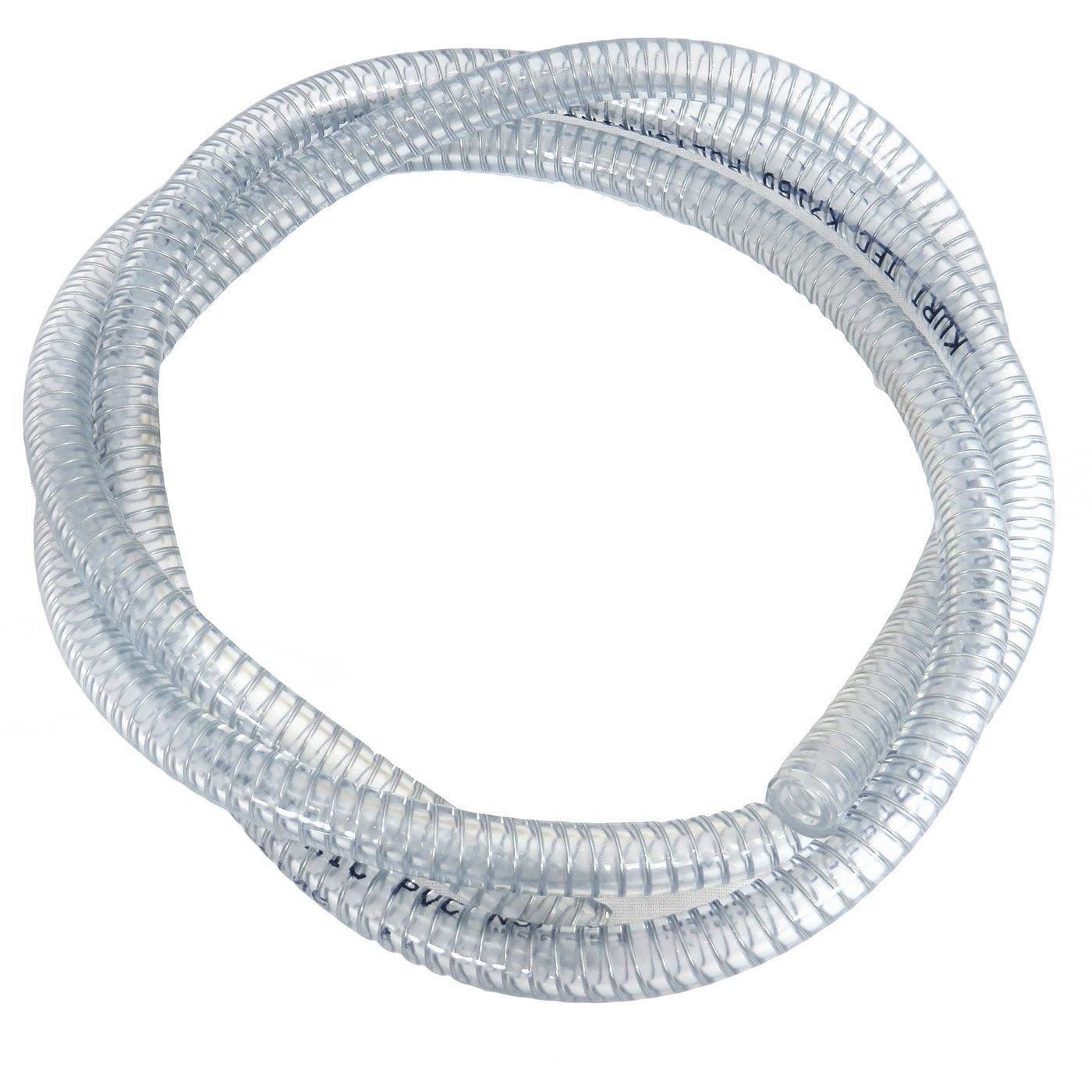

1/4" Reinforced Clear PVC Vacuum Hose

1/4" Reinforced Clear PVC Vacuum Hose

Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13) and RoHS(16) criteria. This hose is reinforced with helically-wound spring steel wire to prevent it from collapsing under a vacuum and prevent kinking or deformation of the tubing.

Key Features:

• Vacuum Rated to 29.9" HG @ 70°F

• Spiral wire reinforcement prevents kinking or collapsing and prevent expansion under higher pressure applications

• Crystal clear tubing allows visual confirmation of product flow

• Glass smooth interior prevents build-up of material inside the tubing

• Electrogalvanized helical steel wire can be used for static dissipation. (This product is designed to dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means

• Resistant to wide range of chemicals

• Self extinguishing

• Non-marking

• Silicone Free

• One-piece lengths

• Phthalate Free!

Common Applications:

• Full Vacuum Lines

• Industrial Vacuum Pumps

• Food and beverage dispensing

• Air and water supply lines

• Pneumatic parts transfer

• Car wash applications

• Coolant lines

• Air breathing lines

• Deionized water systems

Specifications
Series	K1760
Sized Code	04
Service Temperature Range	25 to 150°F (-4 to 65°C)
Nominal ID	1/4" (6.4mm)
Nominal OD	0.460" (11.7mm)
Max Working Pressure @ 70°F (20°C)	150 Psi
Max Working Pressure @ 122°F (50°C)	70 Psi
Standard Length Coils	100ft
Approx. Wt. per Pkg.	7.0lb
Brand	Kuri Tec™
Packaging	Coils
Material	NSF-51
Applications / Materials Conveyed	Air and Water supply lines Air breathing lines Car Wash Applications Coolant Lines Deionized Water Systems Food & Beverage dispensing Full Vacuum Lines Industrial Vacuum Lines Pneumatic Parts Transfer
Min. Bend Radius @ 70°F	1"
Type	Reinforced Water Supply and Food Grade Hose
Style	Standard Wall PVC Food and Beverage Vacuum/Transfer Hose
Inside Tube Material	Crystal Clear Phthalate Free PVC Compound
Cover Material	Crystal Clear Phthalate Free PVC Compound
Reinforcement Material	Helically-wound spring steel wire
Color	Crystal Clear
Medium Temperature(Min)	25°F (-4°C)
Medium Temperature(Max)	150°F (65°C)
Weight per Foot	0.07lbs/ft
Performance	Clear PVC wire reinforced for vacuum; Kink Resistant
