Parker

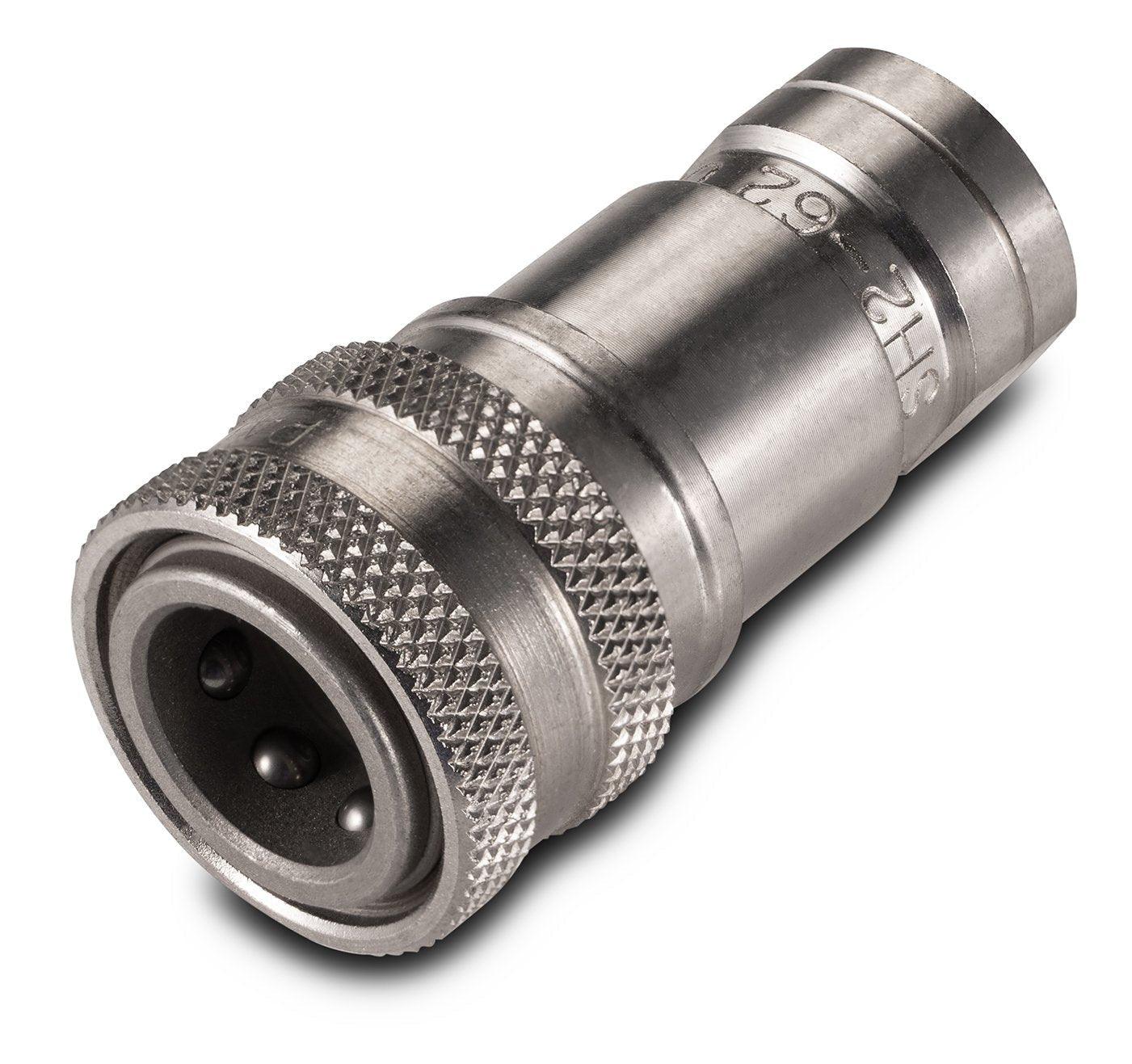

1/4" Female NPT Parker Quick Disconnect - BODY

$95.00 USD
$95.00 USD
Sale Sold out
Shipping calculated at checkout.

1/4" Female NPT Parker Quick Disconnect - BODY


60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 seriesB, 60 Series Nipples.


Parker's 60 Series bave double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO Series B.


These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a vareity of applications and pressures up to 5000 PSI.


Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and 3/8"" size has a grip-ring sleeve for easy operation when wearing gloves

Technical Specifications:
Maximum Working Pressure (PSI) 5000
Maximum Working Pressure (BAR) 340
Flow Rate (GPM) 3
Flow Rate (LPM) 11
Media Hydraulic
Industry Standards ISO 7241-1, Series B
Coupling Half Coupler
Minimum Working Temperature (F) -40
Minimum Working Temperature (C) -40
Maximum Working Temperature (F) 250
Maximum Working Temperature (C) 121
Valve Style Poppet
Sleeve Type Manual Sleeve
Locking Mechanism Locking Balls
Vacuum Rating (INCH of HG) 27.4
Vacuum Rating (BAR) -0.9
Thread Style Female

Technical Characteristics
Sizes: 1/8" - 2-1/2"
Materials: Steel, Brass, 303 Stainless Steel, 316 Stainless Steel
Port Ends: Female NPTF, Female ORB
Seal Options: Coupler Options include:
Markets
  • Industrial
  • Construction
  • Chemical Processing
  • Commercial Cleaning
  • Agriculture
Features/Benefits:
  • Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
  • Multi-purpose coupling, widely used in varied applicationsSteel couplers have a hardened sleeve for strength and durability
  • Metal valve stop prevents flow checking to provide steady performance
  • Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8"" has a grip-ring sleeve for easy operation when wearing gloves.
  • Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance
  • 316 Stainless Steel couplers have Flourocarbon seals for checmical compatibility
  • Optional coupler sleeve lock helps to prevent accidental disconnection
Applications
  • Industrial hydraulic lines
  • Food and chemical processing
  • Water and coolant lines
  • High pressure fluid transfer
  • High temperature fluid transfer
  • Mobile equipment
  • Cleaning equipment
  • Dry cleaning
  • Steam Systems
