1" 37 Degree x 48" Length JIC Braided Stainless Steel Hose

$78.00 USD
$78.00 USD
Sale Sold out
Shipping calculated at checkout.

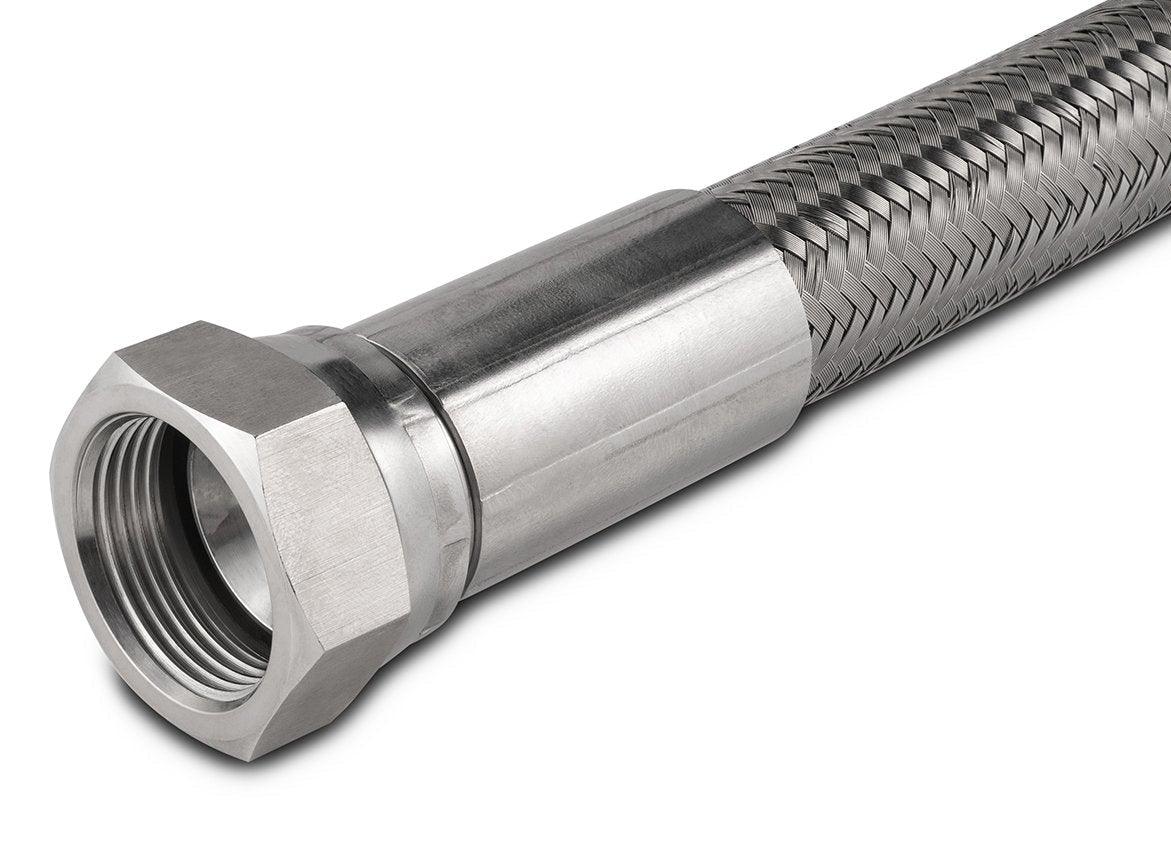

1" 37 Degree JIC Braided Stainless Steel Hose


These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches.


***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.


Specifications:





































Connection Type(s): 1" 37° Female JIC Swivel (1 5/16"-12)
Liner Material PTFE (Teflon)
Braid Material 304 Stainless Steel
Swivel Material 304 Stainless Steel
Temperature Rating -65° to 450°F
Pressure Rating 1000 PSI
Chemical Resistance Excellent
Max Bend Radius 9"
