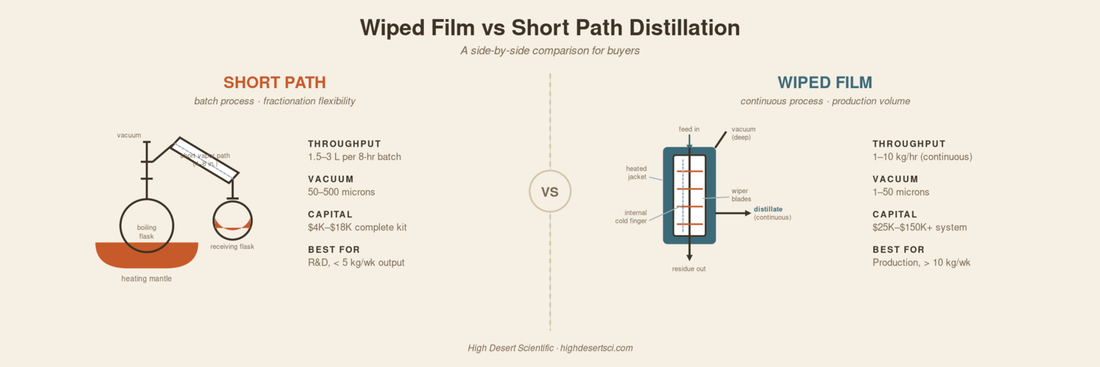

If you're scaling beyond a rotary evaporator and trying to decide between wiped film distillation and short path distillation, you're not alone. These two technologies look similar on a spec sheet — both run under deep vacuum, both separate compounds based on boiling point, and both are common in cannabinoid, botanical, and specialty chemical refinement. They're not interchangeable, though, and choosing the wrong one is an expensive mistake.
This guide breaks down how each system works, where each one wins, the throughput and purity you can realistically expect, and how to match the technology to what you're actually trying to produce.
What Is Short Path Distillation?
Short path distillation is a batch process that uses a heated boiling flask, a short vapor path (usually 4–8 inches), and a water- or oil-cooled condenser positioned close to the evaporating surface. The "short path" reduces the distance vapor travels before condensing, which lowers the effective boiling point of heat-sensitive compounds and reduces residence time on hot glass.
A typical 5L short path setup includes a heating mantle, a boiling flask, a distillation head with thermometer ports, a vacuum-jacketed condenser, multiple receiving flasks for fraction collection, a cold trap, a vacuum pump, and a recirculating chiller. Operators heat the feed material to between 130°C and 200°C under a vacuum of roughly 50 to 500 microns, watch the head temperature, and switch receiving flasks as the heads, mains, and tails come over.
Short path is fundamentally a craft process. A skilled operator can pull very clean fractions because they're making real-time decisions about temperature ramps and fraction cuts. It's also forgiving on capital — a complete 5L short path kit lands in the $4,000–$10,000 range, and a 12L setup typically runs $8,000–$18,000 depending on the manufacturer and accessories.
What Is Wiped Film Distillation?
Wiped film distillation (also called short path wiped film, agitated thin film, or molecular distillation in some configurations) is a continuous process. Feed material is metered onto the heated wall of a vertical evaporator, where rotating wiper blades spread it into a thin, constantly renewed film — usually a fraction of a millimeter thick. Volatile compounds evaporate from this film, travel a very short distance (often less than two inches) to an internal cold-finger condenser, and run off as distillate. Residue exits the bottom continuously.
Because the film is so thin and the residence time so short — typically seconds, not hours — heat-sensitive compounds spend dramatically less time at elevated temperature than they would in a batch flask. Combined with deep vacuum (commonly 1–50 microns for the molecular distillation regime), this lets you distill thermally fragile compounds like THC, CBD, and certain natural product isolates with minimal degradation.
A complete wiped film system includes the evaporator body with heated jacket and motor-driven wipers, an internal condenser, a feed pump, residue and distillate pumps, multiple cold traps, a high-vacuum pump (often a diffusion pump or two-stage rotary vane plus booster), a heating circulator for the jacket, and a chiller for the condenser. Entry-level 2-inch and 4-inch wiped film systems typically start around $25,000–$45,000, and a complete 6-inch production system with all peripherals can run $80,000–$150,000+.
Throughput: Where the Real Difference Shows Up
Throughput is the most concrete way these two systems separate. A 5L short path running cannabis crude typically produces 1.5–3 liters of distillate per 8-hour batch, depending on operator skill and material quality. Even an experienced team rarely pushes a 5L past three batches per day because of cooldown and reload cycles.
A 4-inch wiped film, by contrast, runs continuously and processes 1–3 kg of feed per hour for cannabinoid distillation, depending on the feed quality and the number of passes required. Over a 16-hour shift, that's 16–48 kg of feed processed, with the system pausing only for cleaning and feed changes. A 6-inch wiped film moves 5–10 kg/hr.
If your weekly throughput target is below about 5 kg of finished distillate, short path is almost always the right call — the equipment is cheaper, the operating procedure is simpler, and you're not paying for capacity you won't use. Above 10 kg/week, wiped film starts to dominate on labor cost alone, since one operator can babysit a continuous run while a short path operation requires hands-on attention every batch.
Purity and Fractionation
This is where the conventional wisdom gets the comparison wrong. Short path is often described as the "higher purity" option because operators can pull tight fractions, but a wiped film with a properly designed cold trap and a second pass typically produces equally pure distillate at much higher consistency.
The real difference is in fractionation flexibility. Short path lets an operator collect heads, mains, and tails by physically swapping receiving flasks at chosen temperature points. That's powerful for making test batches, R&D work, or any process where the fraction profile matters more than throughput.
Wiped film handles fractionation through multiple passes at progressively higher jacket temperatures and lower vacuum levels — first pass strips terpenes and residual solvents, second pass distills the cannabinoid or target compound, and the residue carries forward heavier waxes and pigments. It's less flexible per run but more reproducible across runs once you've dialed in the parameters.
Vacuum Requirements
Both systems need deep vacuum, but the requirements differ. Short path generally operates at 50–500 microns, which a good two-stage rotary vane vacuum pump can hold reliably with a properly sized cold trap upstream.
Wiped film systems running true molecular distillation operate below 10 microns, which usually requires either a diffusion pump stack on top of a backing pump, or a two-stage rotary vane paired with a Roots-style booster. The cold trap configuration is also more demanding — multiple liquid-nitrogen or low-temperature traps in series are common, both to protect the vacuum pump and to capture light-end volatiles that would otherwise contaminate the distillate.
If you're sourcing equipment, the vacuum train often costs as much as the still itself, especially on production-scale wiped film systems. Don't undersize it.
Operator Skill and Training
A new operator can be trained to run a short path competently in a few weeks, and the failure modes — bumping, channeling, overheating — are visible and recoverable. Short path is forgiving in the sense that a bad batch is still recoverable feedstock.
Wiped film is more technical to commission and tune. Wiper speed, feed rate, jacket temperature, condenser temperature, and vacuum level all interact, and the right settings depend heavily on feed viscosity and target compound. Most wiped film failures show up as off-spec distillate or fouled wipers rather than dramatic events, which makes them harder for an inexperienced operator to diagnose. Plan on 2–4 weeks of dedicated commissioning with the manufacturer, plus several months before an operator is fully autonomous.
Maintenance and Consumables
Short path maintenance is mostly cleaning. Glass needs to be soaked and scrubbed between runs, joints regreased, vacuum hoses inspected, and the pump oil changed regularly. Replacement glass is a real line item — boiling flasks crack, condensers chip, and joints seize.
Wiped film has fewer cleaning cycles per kg of throughput, but the maintenance is more involved. Wiper blades wear and need replacement (typical interval: 500–2,000 hours depending on material). Mechanical seals on the agitator shaft fail and require pulling the rotor. Diffusion pump oil degrades and needs to be replaced or recharged. Cold traps need to be drained and cleaned on every cycle.
Budget annual maintenance at roughly 3–5% of system cost for short path and 8–12% for wiped film, including consumables and any planned downtime.
Which One Should You Buy?
Choose short path distillation if:
- You're processing under 5 kg/week of finished distillate
- You need fractionation flexibility for R&D or small-batch product development
- Your capital budget is under $25,000 for the still and peripherals
- You don't have a dedicated, technically experienced operator yet
- You're making test batches or proving out a process before scaling
Choose wiped film distillation if:
- Your throughput requirement is 10 kg/week or higher
- You need consistent, reproducible output across many runs
- Labor cost is a major component of your processing economics
- You can commit to a 2–4 week commissioning period and ongoing operator training
- You have the capital for a complete system, including the vacuum train and chiller
Many production labs end up running both — short path for product development and small SKUs, wiped film for high-volume distillate runs. They're complementary tools, not direct competitors, once your operation gets big enough.
Don't Forget the Supporting Equipment
Whichever still you choose, the peripherals make or break the system. A weak vacuum pump turns a good wiped film into a slow short path. An undersized chiller bottlenecks throughput. Cheap glassware fails at the worst possible moment.
If you're spec'ing out a system, plan on roughly equal capital for the still itself and for the supporting equipment — pumps, chillers, cold traps, and the right lab glassware and chillers and heaters to support the process. Cutting corners here is the most common reason a new system underperforms its spec sheet.
