What a Short Path Distillation Kit Actually Includes
A short path distillation kit is the fastest route to refining crude oil into a clear, high-purity distillate, and it is also one of the easiest setups to buy wrong. The "short path" name refers to the tiny distance vapor travels between the boiling flask and the condenser — usually just a few centimeters across a fractionating head — which lets you distill heat-sensitive compounds at lower temperatures and higher vacuum than a traditional column. Get the glassware, heating, vacuum, and chilling matched correctly and a 5L kit will produce beautiful passes all day. Get one component undersized and the whole train stalls.

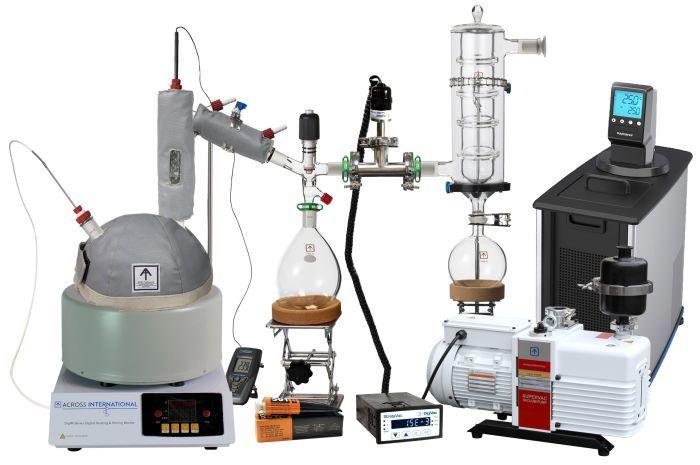

Before you compare prices, it helps to know what a complete kit contains. A standard short path distillation kit is built around a boiling flask, a heating mantle, a fractionating head (often with a vertical column and thermometer well), a water- or oil-cooled condenser, a cow or "pig" receiving adapter with two to four collection flasks, and the vacuum and chilling support equipment that make it run. Miss any of those support pieces and you have expensive glass sitting on a bench.
Sizing the Boiling Flask to Your Batch
Flask size is the first real decision, and it is measured by the volume of crude you plan to load, not the finished distillate. As a rule, fill a boiling flask to no more than two-thirds of its rated volume so you have headroom for foaming and bumping. That means a 2L flask handles roughly 1 to 1.3L of crude per run, a 5L flask handles 3 to 3.5L, and a 12L flask handles 7 to 8L.
Common Kit Sizes and Who They Fit
A 2L kit is the standard R&D and small-batch size. It is forgiving, heats quickly, and is ideal for sampling, formulation work, and operations processing under a pound or two of crude at a time. A 5L kit is the most popular production size for small commercial labs — it balances throughput against the reality that a single operator can still manage the pace of collection. A 12L kit steps into serious daily production, but it demands a larger heating mantle, a more powerful vacuum pump, and enough chilling capacity to keep up with the vapor load. If you are consistently running multiple 12L batches a day, that is usually the signal to price out wiped film distillation instead, which runs continuously rather than batch by batch.
The Vacuum System Makes or Breaks the Run
Short path distillation lives and dies on deep vacuum. The goal is to pull down to the 50 to 100 micron range (roughly 0.05 to 0.1 Torr), because the lower the pressure, the lower the temperature at which your target compounds boil — and lower temperature means less thermal degradation and lighter color in the final product.
Reaching that depth requires a two-stage rotary vane vacuum pump rated to an ultimate pressure well below your target, typically 15 microns or better, so it has margin against the system's real-world leaks and outgassing. A single-stage pump that tops out around 25 microns on the spec sheet will struggle to hold usable vacuum once glassware, grease, and residual solvent are in the mix. Size the pump's CFM to the kit: a 2L setup runs comfortably on a 6 CFM pump, while a 5L or 12L train benefits from 9 CFM or more to pull down quickly between passes.
Don't Skip the Cold Trap
Any residual solvent left in your crude will flash off under vacuum and head straight for the pump, where it dilutes the oil and destroys ultimate pressure. A cold trap installed between the receiving flasks and the pump condenses those volatiles before they can reach the pump. It is inexpensive insurance that protects a pump costing many times more, and on any short path setup it should be considered mandatory rather than optional.
Matching Heating and Chilling
The heating mantle needs to match both the flask volume and the flask geometry. A mantle that is too small will never reach the mantle temperatures — often 180 to 220°C on the setpoint — needed to drive the main-body fraction over, and a loose fit creates hot spots that scorch product against the glass. Buy the mantle sized specifically for your boiling flask, and look for one with a built-in controller or pair it with a PID controller so you can hold temperature steadily rather than chasing it.
On the cold side, the condenser and receiving cow are usually chilled with a recirculating fluid. Here is the counterintuitive part: for short path, you generally want your condenser running warm, around 40 to 60°C, so the distillate stays fluid enough to flow into the collection flasks instead of solidifying in the condenser and clogging it. Your cold trap, by contrast, wants to be as cold as possible, often -40°C or colder. Many labs run a single heater/chiller for the condenser and a dry-ice or dedicated low-temp chiller on the trap. Undersizing chilling capacity is one of the most common reasons a kit underperforms — if the condenser can't keep up with the vapor load, you lose vapor to the pump and yield drops.
Glassware Quality and Spare Parts
Short path glassware takes thermal and mechanical abuse, and the difference between borosilicate 3.3 glass and cheaper glass shows up the first time you thermal-cycle a joint. Insist on borosilicate 3.3 throughout, and pay attention to the joint standard — most quality kits use standard taper or spherical (ball-and-socket) joints held with clamps, which tolerate the slight movement of a heated, evacuated system better than rigid connections.
Because glass breaks, factor spare parts into the purchase. The pieces most likely to need replacement are the boiling flask, the receiving flasks, and the thermometer or vacuum sensor adapters. Keeping a spare boiling flask on the shelf means a cracked flask costs you an hour, not a week of downtime waiting on a shipment. Browse individual replacement pieces in the lab glassware collection so you are not forced to rebuy a whole kit over one component.
A Complete Setup Checklist
When you are pricing a system, a genuinely complete short path setup includes the glassware kit, a correctly sized heating mantle and controller, a two-stage vacuum pump with vacuum gauge, a cold trap, a warm condenser chiller, a cold trap chiller or dry-ice supply, vacuum tubing and grease, and support stands with clamps. It is common for buyers to budget only for the glass and then discover the vacuum and chilling equipment costs as much again. Planning the full train up front avoids that surprise and prevents the mismatched-component problem that stalls so many first runs.
Short Path vs. the Alternatives
Short path is the right tool when you need high-purity, single- or double-pass refinement in a batch workflow, and when your budget and throughput are in the small-to-mid commercial range. If you are only stripping solvent from a solution rather than refining a target compound, a rotary evaporator is the correct, faster tool for that job. And if you have outgrown batch processing and need continuous, hands-off throughput, wiped film distillation is the next step up. Choosing among them comes down to what you are separating and how much of it you run per day.
Get the Right Kit the First Time
The single biggest mistake in short path buying is treating it as a glassware purchase instead of a system purchase. Match the flask to your batch, over-spec the vacuum pump and chilling rather than under-spec them, and never run without a cold trap. Do that, and a well-chosen kit will pay for itself in consistent, high-quality passes.
