If you've ever cracked a receiving flask mid-run or watched a fraction stall out because a joint wasn't rated for the vacuum you were pulling, you already know that short path distillation glassware is not an afterthought — it's half the system. The still head and heating source get most of the attention, but the glass train determines how clean your cuts are, how much product you lose to holdup, and how often you're ordering replacement parts. This guide walks through every piece you need, the joint sizes that matter, and where people typically overspend or underspend.
Why Glassware Choice Matters as Much as the Still Itself
A short path still is really a chain of glass components working under vacuum and heat at the same time: boiling flask, distillation head, condenser, vacuum adapter, and receiver. Every joint in that chain is a potential leak point, and every bend or constriction adds surface area where vapor can condense before it reaches the receiver — what's usually called holdup. On a 2-liter run, a poorly designed head or an undersized condenser can cost you 5-10% of recoverable product just to holdup and incomplete condensation. Getting the glassware right isn't about buying more pieces; it's about matching the right pieces to your flask size, your vacuum level, and the temperature range of the material you're distilling.
The Core Glass Train: Piece by Piece
Boiling Flask
Round-bottom boiling flasks are sized from 500mL bench-scale runs up to 20L and 50L for production batches. Match the flask to roughly 50-60% fill volume — overfilling is the single most common cause of bumping and carryover into the receiver. Borosilicate 3.3 glass is the standard; it handles rapid thermal cycling and the thermal shock of oil baths running 100-220°C without the stress cracking you'd see in cheaper soda-lime glass.
Short Path Distillation Head
The head combines the vapor takeoff, a thermometer or temperature probe port, and the condenser mount in one three-neck piece. A well-designed head keeps the path from boiling flask to condenser as short as possible — hence "short path" — which reduces holdup and lets you distill compounds that would degrade under the longer vapor paths of a traditional fractional column. Look for a head with an integrated thermometer adapter rather than a separate add-on; one fewer joint is one fewer leak point.
Condenser
Most short path heads use an integrated or closely coupled condenser, typically 300-400mm in jacketed length, cooled with water or a recirculating chiller rather than tap water once you're running production volumes. The condenser's job is to knock vapor back to liquid before it ever reaches the vacuum line — undersized cooling here is one of the most common reasons people lose yield to the cold trap instead of the receiver. If you're scaling past bench-top volumes, pair your glass with a unit from our chillers and heaters collection rather than relying on building water, which fluctuates with the season and will show up as inconsistent cut points.
Vacuum Takeoff Adapter and Receiving Flask
The vacuum adapter sits between the condenser and the receiving flask, with a sidearm to the vacuum source. Receiving flasks range from single 250mL round-bottoms for small cuts up to multi-liter flasks for bulk fraction collection. This is also where most first-time buyers under-plan: a single receiver means stopping the run, breaking vacuum, and swapping glassware every time you want to separate a new fraction.
Joint Sizes: 24/40 vs. 29/32 vs. 34/45
Ground glass joints are specified by two numbers — the outer diameter in millimeters and the depth of the taper. 24/40 is the standard for most bench and small-production setups, generally pairing with 1L-5L flasks. 29/32 shows up on mid-size European-style glassware and some 3L-12L systems. 34/45 is the heavier joint used on larger short path and wiped film distillation systems handling 12L-50L batches, where the wider taper is needed to maintain a reliable seal at higher vacuum and larger vapor volumes. Mixing joint sizes across your train is the fastest way to end up with a drawer of adapters you didn't plan to buy — standardize on one size for a given system and stick to it.
Multi-Receiver "Cow" and "Spider" Adapters
If your process produces more than one distinct fraction per run — common in cannabinoid and terpene isolation, as well as most solvent recovery work — a multi-receiver adapter (often called a "cow" for 3-neck versions or "spider" for 4- to 5-neck versions) lets you rotate between receiving flasks without breaking vacuum. This single piece of glassware is usually the highest-value upgrade someone running a basic single-receiver setup can make: it cuts downtime between fractions from minutes to seconds and keeps your vacuum level stable through the whole run instead of cycling it every time you swap a flask.
Supporting Glassware You'll Also Need
Beyond the main train, budget for: a spare thermometer adapter and digital or mercury-free temperature probe; PTFE sleeves or a light vacuum grease for every ground joint (PTFE lasts longer and won't contaminate sensitive compounds); boiling chips or a magnetic stir bar to prevent bumping; and at least one spare flask in each size you use. Glass breaks — usually from thermal shock, not from pressure — and running a production schedule without a spare boiling flask on the shelf means a cracked flask turns into a lost day, not a five-minute swap.
Protecting the Glass Train: Cold Traps and Vacuum Pumps
Your glassware is only as reliable as what's protecting it downstream. A dedicated cold trap installed between the receiver and the vacuum pump catches any vapor that makes it past condensation, which both protects your pump oil from contamination and keeps solvent vapors from being pulled through the pump and into the air in your shop. Pair that with a pump sized correctly for your flask volume and target vacuum — our vacuum pump collection breaks down the difference between the 0.1-1 torr ranges most short path work needs versus the deeper vacuum some wiped film and molecular distillation processes require.
What a Complete Setup Actually Costs

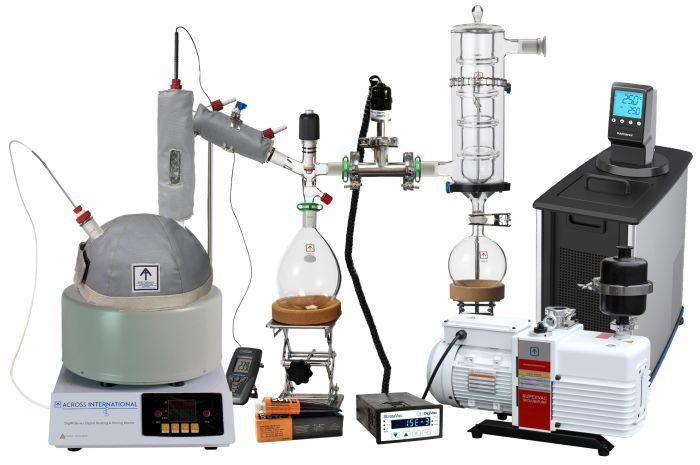

A basic 2L-5L short path glass train — boiling flask, head, condenser, vacuum adapter, and a single receiver — typically runs $300-$800 depending on joint size and glass thickness. Add a multi-receiver cow adapter, spare flasks, and a proper cold trap, and a well-equipped bench-to-small-production setup lands in the $800-$2,000 range. Larger 12L-50L systems with heavier 34/45 joints and multi-liter receivers can run $2,500-$6,000 for the glass alone, before the heating and vacuum equipment that runs it. Buying a mismatched mix of joint sizes and brands piecemeal almost always costs more in adapters and replacement parts than buying a matched kit from our short path distillation collection up front.
Common Glassware Mistakes That Cost Yield or Money
A few patterns show up again and again with new buyers. Overfilling the boiling flask past 60% capacity causes bumping that carries material straight into the condenser and receiver, contaminating your cut. Skipping the cold trap "to save money" routinely costs more in pump maintenance and oil changes than the trap itself would have cost. Using vacuum grease instead of PTFE sleeves on joints that see solvent vapor can introduce contamination into sensitive extracts. And buying a single-receiver setup for a multi-fraction process means paying in lost production time what you saved on the adapter.
Getting the Right Glassware for Your Process
The right glass train depends on your flask volume, your target vacuum, the solvents and compounds you're working with, and how many fractions you need to collect per run. Browse our short path distillation collection for complete kits and individual components, or check our lab glassware collection for spare flasks, adapters, and replacement parts in standard joint sizes. If you're specifying a larger or custom system, our lab consulting service can help you size the right glass train the first time, and you can request a quote for a complete setup matched to your process.
