If your lab has outgrown a 20L or 50L rotary evaporator and you're staring at week-long solvent recovery runs, you've probably started researching falling film evaporators. The jump is significant — in cost, footprint, and throughput — and the spec sheets don't always tell you when the upgrade actually pays off.
This guide compares the two technologies head to head: how they work, what they cost to run, and the production volume where a falling film evaporator stops being a luxury and starts being the only sensible option. By the end you'll know which one fits your workflow, and what to look for if you're buying.
How Each Technology Works

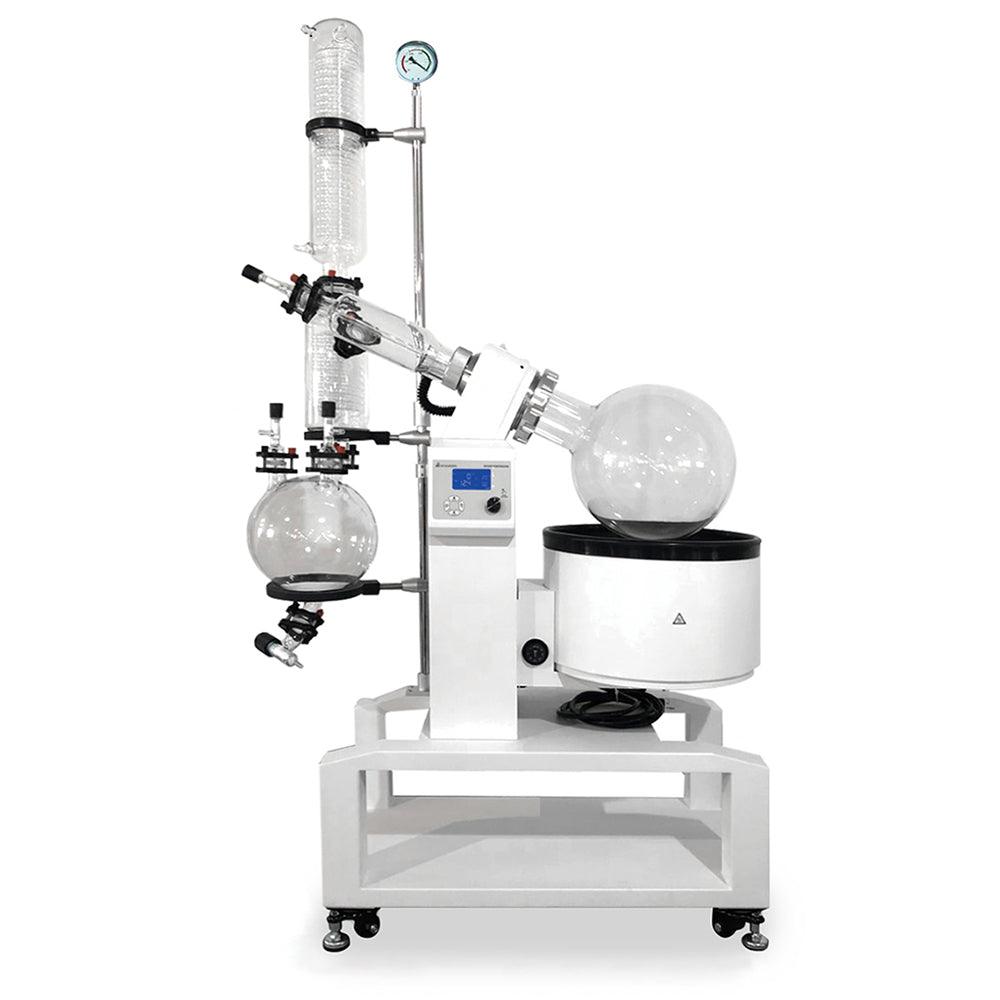

A rotary evaporator (rotovap) removes solvent by rotating a round-bottom flask in a heated water or oil bath under vacuum. The rotation creates a thin film on the flask wall, increasing surface area for evaporation. Vapor travels up the vapor duct, condenses on a coiled condenser, and drips into a collection flask.
A falling film evaporator (FFE) takes the same thin-film principle and runs it continuously. Solvent-laden feed is pumped to the top of a vertical heated tube bundle. Gravity pulls the liquid down the inside of the heated tubes as a thin film, where it flash-evaporates almost instantly. Vapor and concentrated product separate at the bottom, vapor heads to a condenser, and the concentrate can be drawn off without ever stopping the run.
The mechanical difference matters: a rotovap is a batch tool. You fill the flask, run it, drain it, refill. An FFE is continuous. As long as you keep feeding it, it keeps producing.
Throughput: Where the Math Gets Interesting
This is the spec that drives most upgrade decisions. Here are realistic real-world numbers for ethanol recovery (the most common application):
- 20L rotovap: 10–15 L/hr of ethanol recovery under good conditions
- 50L rotovap: 25–35 L/hr
- Small FFE (compact bench/skid units): 30–60 L/hr
- Mid-size FFE: 80–150 L/hr
- Production FFE: 200+ L/hr
A 50L rotovap and a small FFE look comparable on paper. The difference is duty cycle. The rotovap requires a charge-discharge cycle every 30–60 minutes — draining the bump trap, dumping the receiving flask, and refilling. Realistically, you lose 15–25% of your day to handling. An FFE just runs. Over an eight-hour shift, a falling film unit that's nominally similar in instantaneous throughput will produce 30–50% more recovered solvent.
The other lever is the feed itself. Rotovaps slow down dramatically as the boiling mixture becomes more concentrated and viscous. FFEs handle viscous feeds far better because the film is constantly renewed by gravity rather than relying on rotation.
Cost: Capital, Operating, and Labor
Sticker shock is the first hurdle. A capable 20L rotovap setup with chiller and vacuum pump runs roughly $8,000–$15,000. A 50L rotovap setup pushes $20,000–$35,000. A small falling film evaporator with the required ancillary equipment (chiller, vacuum pump, feed tank, and condenser system) typically starts around $25,000–$45,000, and full production units can land between $60,000 and $150,000+.
That gap looks worse than it is. The honest comparison is cost per liter of recovered solvent over a year:
- Operator time: A rotovap usually needs an operator nearby to swap flasks and watch for foaming. An FFE runs unattended for hours once dialed in. At even $25/hour fully loaded, this is thousands of dollars annually for a busy lab.
- Energy: Per liter of solvent recovered, FFEs are typically more efficient because the evaporation surface is permanently hot rather than reheating with each new charge. A rotovap's bath loses heat every time you lift the flask.
- Chiller load: Both technologies need a recirculating chiller, but FFE condensers run a steadier thermal load, which extends chiller compressor life.
- Solvent loss: Repeated batch transfers in a rotovap workflow generate small losses at every swap. At ethanol prices around $3–5/gallon for lab-grade, this adds up across a year of production.
For a lab recovering more than about 80 gallons (300 L) of ethanol per day, the labor savings alone usually pay back an FFE within 12–18 months.
When the Rotovap Still Wins
Don't assume bigger is always better. A rotovap remains the right tool for several common situations:
- Variable batch sizes. If you're running 5L one day and 30L the next, with frequent solvent changes, the flexibility of a rotovap beats the dial-in time of an FFE.
- R&D and small-scale work. Method development, fraction collection, sensitive samples — anything where you need to watch the run, adjust on the fly, or stop mid-batch. Rotovaps give you that control.
- Multiple solvents in one day. Switching solvents on an FFE requires a full cleaning cycle. On a rotovap, you swap flasks and move on.
- Heat-sensitive products. A well-tuned rotovap with a deep vacuum and a cold bath gives you fine control over thermal exposure. FFEs do too, but the learning curve is steeper.
- Sub-200 L/day throughput. Below this rough threshold, the operator-time math doesn't yet favor an FFE.
Most production labs end up running both: an FFE for bulk solvent recovery, and one or two rotovaps for finishing, polishing, or specialty work.
What to Look For When Buying a Falling Film Evaporator
If you've decided an FFE makes sense, here are the specs that actually matter:
Heated Surface Area and Tube Geometry
This is the real throughput driver, not nominal "L/hr" claims. Look for stated heated surface area in square meters or square feet. More surface area means faster evaporation at the same temperature. Tube diameter and length also matter — longer tubes give the film more time to develop and evaporate, but require more headroom.
Heating and Cooling Capacity
You need a heater (often a heated water or oil circulator) and a chiller, both sized correctly for the FFE. Undersized utilities are the single most common reason a brand-new FFE underperforms. As a rule of thumb, your recirculating chiller should be sized for at least 1.2× the published thermal load of the evaporator at your target solvent and temperature.
Vacuum System
FFEs typically run at moderate vacuum (50–200 mbar for ethanol). A properly sized rotary vane or hybrid vacuum pump is usually sufficient. Check the FFE manufacturer's recommended pump CFM and ultimate pressure before ordering.
Feed Pump and Control
The feed rate has to match the evaporative capacity. Variable-speed peristaltic or gear pumps with a clear flow indicator are standard. Bonus points for integrated PID control that ties feed rate to temperature and vacuum readings.
Materials and Cleaning
All wetted parts should be 316L stainless or borosilicate glass. CIP (clean-in-place) ports save hours per cleanup. If you'll be switching solvents or processing pigmented feeds, easy disassembly is worth paying for.
Footprint and Ceiling Height
FFEs are tall. A small unit may need 8–9 feet of ceiling clearance; production units often want 10–14 feet. Measure before you buy.
A Realistic Upgrade Path
If you're not sure you're ready, here's a sensible sequence:
- Start with a 20L rotovap. It handles up to about 100 L/day of solvent recovery and teaches you your process. See our rotary evaporator collection for sized options.
- Move to a 50L rotovap when you consistently hit your 20L's ceiling. Don't run two 20Ls in parallel — the labor cost is brutal.
- Add an FFE when your 50L is running 10+ hours a day, or when you need to free your operators for higher-value work.
- Keep at least one rotovap as you scale. The flexibility is worth the bench space.
One more thing: whichever direction you go, pay attention to the supporting equipment. A great evaporator paired with an undersized chiller or a tired vacuum pump will run at a fraction of its potential. Most "this FFE is slower than advertised" complaints trace back to utilities, not the evaporator itself.
Bottom Line
A rotary evaporator is the right tool for flexibility, R&D, and throughput up to roughly 200 L/day of solvent recovery. Above that, the labor and time math starts to favor a falling film evaporator, and beyond 400–500 L/day an FFE is almost always the better choice. The transition isn't just about volume — it's about whether your operators' time is worth more than the capital cost of an upgrade.
If you're trying to size the right setup for your lab, browse our rotary evaporators and falling film evaporators, or contact us for a quote — we'll talk through your process and recommend a system that matches your real throughput needs, not just a number on a brochure.
