Why Your Vacuum Pump Matters More Than You Think
A vacuum pump is the workhorse behind nearly every piece of lab equipment you own. Your vacuum oven, rotary evaporator, and short path distillation setup all depend on consistent, reliable vacuum to perform correctly. Choose the wrong vacuum pump, and you'll deal with slow processing times, incomplete solvent removal, or worse — contaminated product and a pump that fails within months.
This guide covers the main pump types used in laboratory applications, what specs actually matter, and how to match a pump to your specific equipment and workflow.
The Three Pump Types You'll Actually Use in a Lab
Diaphragm Pumps (Oil-Free)
Diaphragm pumps use a flexible membrane to create vacuum without any oil in the pumping chamber. They're the cleanest option available and require almost zero maintenance beyond occasional diaphragm replacement (typically every 10,000–15,000 hours of operation).
Ultimate vacuum depth usually falls between 1 and 75 Torr depending on the number of stages. A two-stage diaphragm pump can reach around 1–2 Torr, which is enough for rotary evaporation and basic filtration work, but not deep enough for short path distillation.
Best for: Rotary evaporators, vacuum filtration, vacuum drying at moderate depths. Labs that cannot tolerate oil contamination risk.
Drawbacks: Limited ultimate vacuum depth. Higher upfront cost compared to rotary vane pumps of similar capacity. Lower pumping speed at deep vacuum levels.

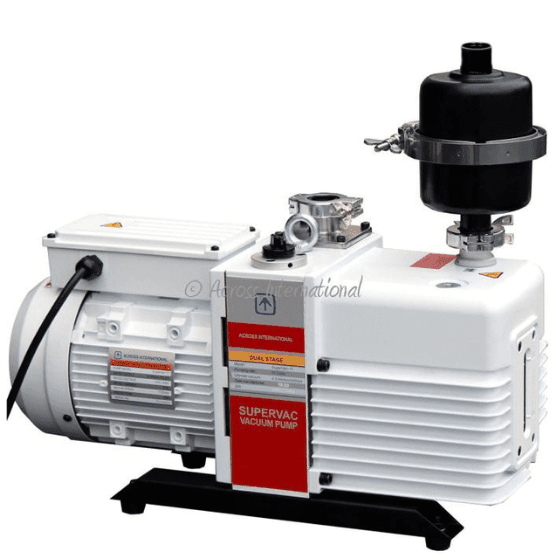

Rotary Vane Pumps (Oil-Sealed)
Rotary vane pumps are the most common vacuum pumps in extraction and distillation labs. They use oil as both a sealant and lubricant, which allows them to reach much deeper vacuum levels — typically 10 to 50 microns (0.01–0.05 Torr) with a single stage, and below 1 micron with two stages.
This deep vacuum capability makes rotary vane pumps the standard choice for short path distillation and vacuum oven purging at low pressures. A quality two-stage rotary vane pump in the 5–9 CFM range will handle most benchtop distillation setups without issue.
Best for: Short path distillation, wiped film distillation, deep vacuum oven work, falling film evaporation.
Drawbacks: Oil changes are required regularly — every 50–100 hours of active use, or sooner if processing solvents. Oil mist can be an issue without a proper exhaust filter. Solvents passing through the pump degrade the oil quickly, so a cold trap between your equipment and pump is essential.
Scroll Pumps (Oil-Free, Deep Vacuum)
Scroll pumps use two interleaving spiral elements to compress gas and create vacuum. They're oil-free like diaphragm pumps but can reach much deeper vacuum — often down to 10–50 microns. This makes them an attractive alternative to rotary vane pumps for labs that need deep vacuum without the oil maintenance burden.
Best for: Labs willing to invest more upfront to eliminate oil changes and contamination risk while still reaching deep vacuum levels.
Drawbacks: Significantly more expensive (often 3–5x the cost of a comparable rotary vane pump). Tip seal replacement is required periodically. Not as widely available in lab equipment supply chains.
Key Specs: What the Numbers Actually Mean
Ultimate Vacuum (Depth)
This is the deepest vacuum the pump can achieve with no gas load — essentially an empty, sealed system. It's measured in Torr, milliTorr (mTorr), microns, or Pascals. For reference: 1 Torr = 1,000 microns = 133.3 Pascals.
Here's what different applications typically require:
- Vacuum filtration: 100–400 Torr
- Rotary evaporation: 1–50 Torr (varies by solvent boiling point)
- Vacuum oven purging: 1–25 Torr for standard work; below 1 Torr for aggressive purging
- Short path distillation: 50–500 microns (0.05–0.5 Torr)
- Wiped film distillation: 50–1,000 microns depending on the compound
Always buy a pump rated deeper than your target operating pressure. Pumps lose vacuum depth as they age, and real-world conditions (small leaks, outgassing) mean you'll never operate at the pump's rated ultimate vacuum.
Pumping Speed (Flow Rate)
Measured in CFM (cubic feet per minute) or liters per minute (L/min), pumping speed tells you how quickly the pump can evacuate a given volume. A higher CFM pump will pull down your system faster and recover vacuum more quickly when gas is introduced (such as during solvent evaporation).
General sizing guidelines:
- 2L–5L rotary evaporator: 2–4 CFM
- 2" short path distillation: 3–5 CFM
- 4"–6" short path distillation: 5–9 CFM
- Small vacuum oven (0.9–1.9 cu ft): 3–5 CFM
- Large vacuum oven (3.2+ cu ft): 7–12 CFM
Undersizing your pump is one of the most common mistakes. If your pump can barely reach target depth under no load, it won't hold that depth when your system is actively outgassing or when solvents are boiling off.
Motor Power and Electrical Requirements
Most benchtop lab pumps run on standard 110V/120V single-phase power. Larger pumps (above 9–12 CFM) may require 220V. Check your facility's electrical capacity before purchasing — a 220V pump won't run on a standard outlet without an electrician's visit.
Matching a Pump to Your Equipment
For Vacuum Ovens
If you're running a vacuum oven for drying or purging, you need a pump that can hold steady vacuum over long periods — sometimes 24–72 hours. A two-stage rotary vane pump in the 5–7 CFM range handles most standard-sized ovens well. Make sure to install an inline cold trap or solvent trap to protect the pump oil from vapor contamination.
For Rotary Evaporators
A rotary evaporator works best with a vacuum controller or regulated vacuum source so you can dial in the exact pressure for your solvent's boiling point. A diaphragm pump with a built-in controller is the most popular choice for rotovap work because it eliminates oil maintenance and provides precise vacuum regulation. A two-stage diaphragm pump rated to 1–2 Torr covers nearly all common solvents.
For Short Path and Wiped Film Distillation
Distillation demands the deepest vacuum — you need a two-stage rotary vane pump capable of reaching below 100 microns. For benchtop short path distillation kits, a 5–9 CFM two-stage pump is standard. Always pair it with a dry ice or liquid nitrogen cold trap positioned between the distillation apparatus and the pump inlet. Without a cold trap, volatile compounds will dissolve into the pump oil, destroying vacuum performance within hours.
Accessories You Shouldn't Skip
Cold traps: Essential for any setup where solvents or volatile compounds are present. A cold trap condenses vapors before they reach the pump, protecting oil quality and extending pump life dramatically.
Vacuum gauges: A digital vacuum gauge at your system (not at the pump inlet) gives you accurate real-time readings of your actual operating pressure. Thermocouple gauges work well for the 1–1,000 micron range used in distillation.
KF/NW fittings and hose: Use proper vacuum-rated hose and fittings. Standard rubber tubing develops micro-leaks over time and limits your achievable vacuum depth. KF-25 (NW-25) flanges with centering rings are the standard in lab vacuum plumbing.
Exhaust filters: Oil mist filters on rotary vane pump exhausts keep your lab air clean and recover pump oil that would otherwise be lost as mist.
Vacuum pump oil: Keep extra oil on hand. For labs processing solvents, you may need to change oil multiple times per week. Use the oil grade specified by the pump manufacturer — substituting random oils will void your warranty and may damage the pump.
Common Mistakes to Avoid
Running without a cold trap: This is the number one pump killer in extraction and distillation labs. Solvents in the oil cause the pump to lose vacuum depth rapidly and can cause internal corrosion.
Ignoring oil condition: If your pump oil looks milky, discolored, or smells like solvent, change it immediately. Running on contaminated oil accelerates wear on the vanes and seals.
Buying based on price alone: A $150 pump from a generic marketplace listing might reach spec on day one, but the internal tolerances and materials won't hold up under continuous lab use. Invest in a pump from a reputable lab equipment supplier — the cost difference is small compared to lost product from a pump failure mid-run.
Oversizing without a controller: A pump that's too powerful for your application can cause bumping in rotary evaporators or pull compounds through your short path condenser before they separate properly. If you're using a large pump, pair it with a vacuum regulator or bleed valve.
Ready to Find the Right Pump?
Choosing the right vacuum pump comes down to three questions: What equipment are you running? What vacuum depth do you need? And how much maintenance are you willing to handle? Match those answers to the pump types and specs above, and you'll avoid the most expensive mistakes.
