A rotary evaporator is one of those purchases where the sticker price is only half the decision. Buy the wrong flask size or pair a good rotovap with an undersized chiller, and you'll spend the next year fighting slow runs and lost solvent. This guide walks through the specs that actually change how a rotary evaporator performs in your lab — capacity, bath temperature, condenser style, and the vacuum and cooling setup around it — so you can match a system to your process the first time.
A rotary evaporator (or "rotovap") removes solvent from a sample gently, by spinning a heated flask under vacuum. The vacuum drops the solvent's boiling point well below its atmospheric value, so you evaporate at low temperature without cooking heat-sensitive material. The vapor travels to a condenser, cools back to liquid, and collects in a receiving flask for recovery. It's the standard tool for solvent recovery, concentration, and purification across chemistry, extraction, and essential-oil work.
Start With Flask Size and Throughput
Capacity is the first fork in the road. Rotary evaporators are sold by their evaporating flask volume, and High Desert Scientific stocks complete kits from 2L to 50L. The right size depends on your batch volume and how often you run.
The rule most people learn the hard way: never fill the evaporating flask more than about half full. The extra headroom prevents bumping and foaming from pushing material into your condenser. That means a 20L rotovap comfortably processes roughly 10L per batch, and a 5L unit handles about 2.5L. If you're evaporating 8–10 liters of ethanol at a time, a 20L system is the honest choice — not a 10L you'll overload every run.
Benchtop vs. Floor-Standing

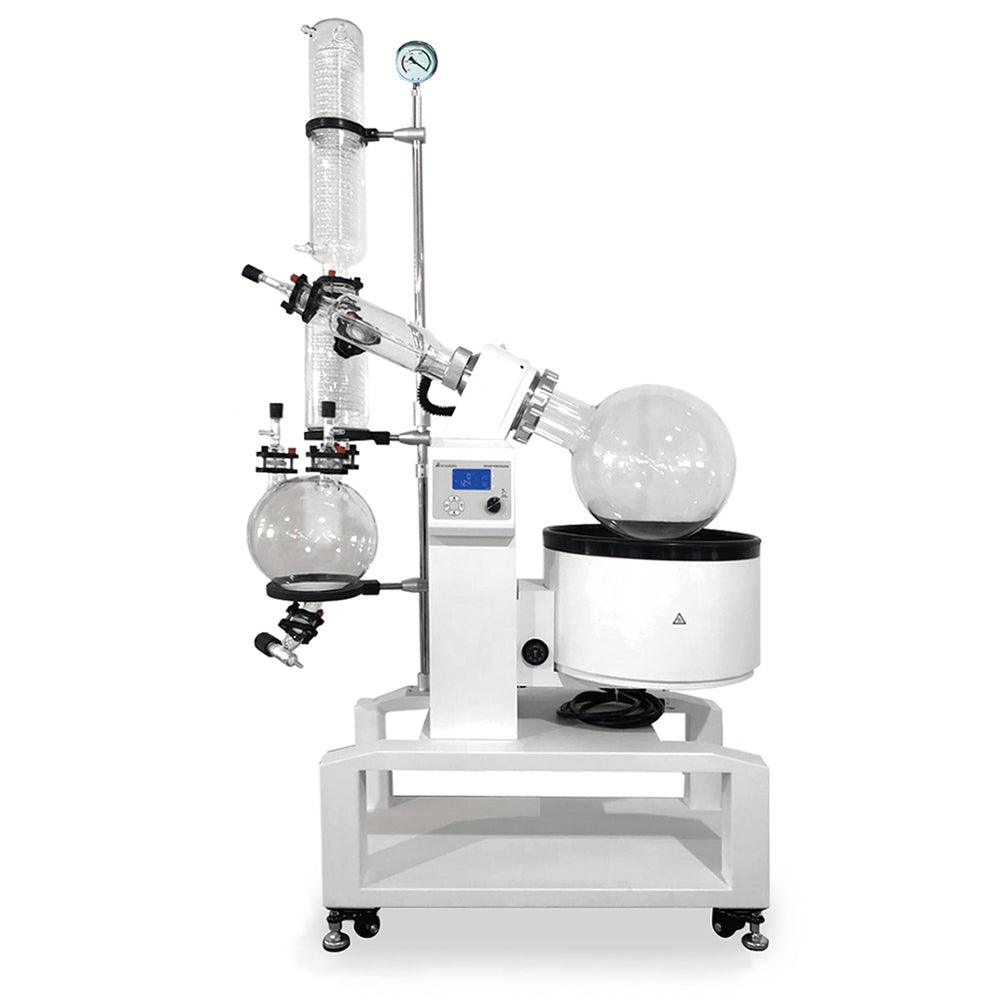

The 2L and 5L units are benchtop rotovaps — compact, easy to move, and ideal for R&D, sample prep, and low-volume solvent recovery. Once you reach 10L, and especially at 20L and 50L, you're looking at floor-standing systems on rolling frames with motorized lifts. These are built for production-scale recovery and run for hours at a time. Browse the full range of rotary evaporators from 2L to 50L to see the footprint of each size before you commit bench or floor space.
Water Bath vs. Oil Bath and Temperature Range
The heating bath sets your ceiling on evaporation speed. Most rotovap baths are digital and cover roughly room temperature up to 180–200°C, but what you fill them with matters.
A water bath is clean, cheap, and tops out near 95°C in practice (you don't want it boiling). That's plenty for low-boiling solvents like ethanol, ethyl acetate, dichloromethane, or pentane under vacuum. An oil or silicone bath extends your range to 180°C and beyond, which you'll need for higher-boiling solvents such as water, DMF, or DMSO. Oil is messier and slower to clean, so choose it only if your solvents demand it. For most extraction and ethanol-recovery workflows, a water bath is the practical pick.
Vertical vs. Diagonal Condensers
Condenser geometry is an underrated decision. A diagonal (angled) condenser is the classic look — compact, lower overall height, and well suited to benchtop 2L and 5L units. A vertical condenser stands straight up, offers more surface area, and makes it easy to stack a secondary cold trap or a dry-ice trap on top. Vertical designs are common on larger 20L and 50L systems where condensing capacity and vapor recapture matter most.
Whatever the shape, condenser surface area is what determines how much vapor you can knock down per hour. If you're recovering solvent at volume, don't skimp here — an undersized condenser will cap your throughput no matter how hot the bath runs or how deep the vacuum pulls.
Don't Underestimate the Vacuum and Chiller
This is where most first-time buyers go wrong: they budget for the rotovap and treat the pump and chiller as afterthoughts. In reality, those two pieces determine whether the system actually performs.
The Vacuum Pump
Vacuum lowers the solvent's boiling point so you can evaporate gently. For rotary evaporation, a chemical-resistant diaphragm pump is usually ideal — it tolerates solvent vapor and pulls the moderate vacuum (roughly 10–100 torr for common solvents) that most rotovap work needs. A rotary vane pump reaches deeper vacuum but requires a cold trap to protect the oil from solvent contamination. A vacuum controller is worth adding: it holds a stable setpoint, prevents bumping, and stops you from chasing pressure by hand. See the options in vacuum pumps.
The Recirculating Chiller and the "Delta 20" Rule
Your condenser needs cold coolant, and sizing it is guided by the Delta 20 rule: keep about 20°C between each stage. If your bath is at 40°C, your vapor comes off around 20°C, so your coolant should sit near 0°C. Hold that 40 / 20 / 0 spread and condensing stays efficient. Undersize the chiller and vapor slips past the condenser into your pump — you lose solvent and risk damaging the pump.
Match the chiller's cooling capacity (in watts or BTU) to your evaporation rate, not just to temperature. A 20L rotovap running hard can demand several thousand watts of cooling. Explore recirculating chillers and heaters and consider a cold trap for extra vapor recapture and pump protection.
Lift, Seals, and Safety Features
A motorized lift raises the flask out of the bath at the end of a run — or automatically on a power failure — which is far safer than a manual hand crank once flasks get large and heavy. On 20L and 50L systems, motorized lift is essentially standard, and for good reason.
Check the seal material too. A quality PTFE vacuum seal holds vacuum reliably and resists aggressive solvents; a worn or cheap seal is the most common cause of a rotovap that "won't pull vacuum." The Across International SolventVap line ships with PTFE seals and vacuum-rated borosilicate glassware for this reason.
If you're recovering flammable solvents like ethanol, pay attention to electrical safety ratings. UL-listed equipment is the baseline, and labs operating in a classified area may need Class 1, Division 1 (C1D1)-compatible setups. On large flasks, safety-coated glassware adds a layer of protection by containing fragments in the rare event of an implosion.
Common Rotary Evaporator Applications
Different jobs push different specs to the front:
- Ethanol / solvent recovery: High-volume winterization and extraction workflows lean toward 20L and 50L systems with strong condensing and a well-matched chiller.
- Essential oils and botanicals: Gentle, low-temperature concentration where a water bath and stable vacuum protect delicate aromatics.
- Reaction workup and concentration: Classic 2L–5L benchtop use in synthesis labs, removing solvent after a reaction.
- Crystallization prep: Slowly concentrating a solution to the point of crystal formation using precise vacuum and temperature control.
Quick Sizing Checklist
- Batch volume: Double your typical batch to size the flask (half-full rule). 10L batches → 20L rotovap.
- Solvent boiling point: Low-boiling → water bath is fine. High-boiling → plan for an oil bath.
- Vacuum: Diaphragm pump plus a controller for most work; add a cold trap for deep-vacuum or volatile solvents.
- Cooling: Apply the Delta 20 rule and size chiller wattage to your evaporation rate.
- Safety: Motorized lift, PTFE seals, UL listing, and C1D1 compatibility if you're running flammables.
As a rough budgeting guide, a 2L benchtop rotovap typically lands in the low four figures, a 5L in the mid four figures, and a fully outfitted 20L or 50L system — with chiller and pump — can run from the high four figures into the mid five figures. Freight varies by size and destination, so exact pricing is quoted per order.
Get the Right Rotovap for Your Lab
The best rotary evaporator is the one sized correctly for your batch volume, matched to a pump and chiller that can keep up, and rated for the solvents you actually run. If you're weighing sizes or building a complete solvent-recovery station, browse our rotary evaporator kits and the Across International SolventVap series, or request a quote and we'll spec a system — rotovap, chiller, and pump — around your process. Setting up a new lab from scratch? Our consulting team can build the whole package for you.
