A cold trap is the cheapest insurance policy in your lab. It sits between your process and your vacuum pump, condensing solvent vapor before it can reach the pump and destroy the oil, corrode the internals, or bleed away your vacuum. Skip it, and a $1,500 pump can be pulling weak vacuum within a week. Run the right cold trap and that same pump holds spec for years. This guide covers how a cold trap works, how to size one, and how to match it to short path distillation, rotary evaporation, and vacuum oven work.
What a Cold Trap Actually Does
During any process that moves solvent under vacuum, vapor travels downstream toward the pump. A cold trap is a chilled vessel in that vapor path. As vapor hits the cold surface, it condenses (or freezes) and collects in the trap instead of continuing into the pump. Two things happen as a result: your pump oil stays clean, and your working vacuum improves because condensable vapor is being pulled out of the gas stream rather than loading the pump.
The physics is simple. Colder trap, more vapor captured. A trap chilled to -40°C captures far more than one at 0°C, and a dry-ice trap at -78°C or a liquid-nitrogen trap at -196°C captures nearly everything with a boiling point above its temperature. The trade-off is cost and convenience, which is what the rest of this guide is about.
The Main Cold Trap Types
Dry-ice / manual-fill cold traps
The classic setup is a glass or stainless dewar you fill with dry ice and a solvent like acetone or isopropanol, giving roughly -60 to -78°C. These are inexpensive, need no electricity, and drop in quickly. The catch is the labor: someone has to keep buying and loading dry ice, and on a long distillation run the trap can run dry overnight. For an occasional run they are perfect; for daily production they become a chore.
Cryogenic (liquid nitrogen) traps
A liquid-nitrogen trap reaches -196°C and will freeze out essentially any solvent vapor. This is the deepest, most complete protection available and is common on high-vacuum and analytical systems. The downsides are the ongoing LN2 supply and a real safety consideration: never trap oxygen-condensing conditions or seal a warming LN2 trap, since trapped liquid oxygen and rapidly expanding gas are hazards. For most extraction and distillation labs, LN2 is more than the process needs.

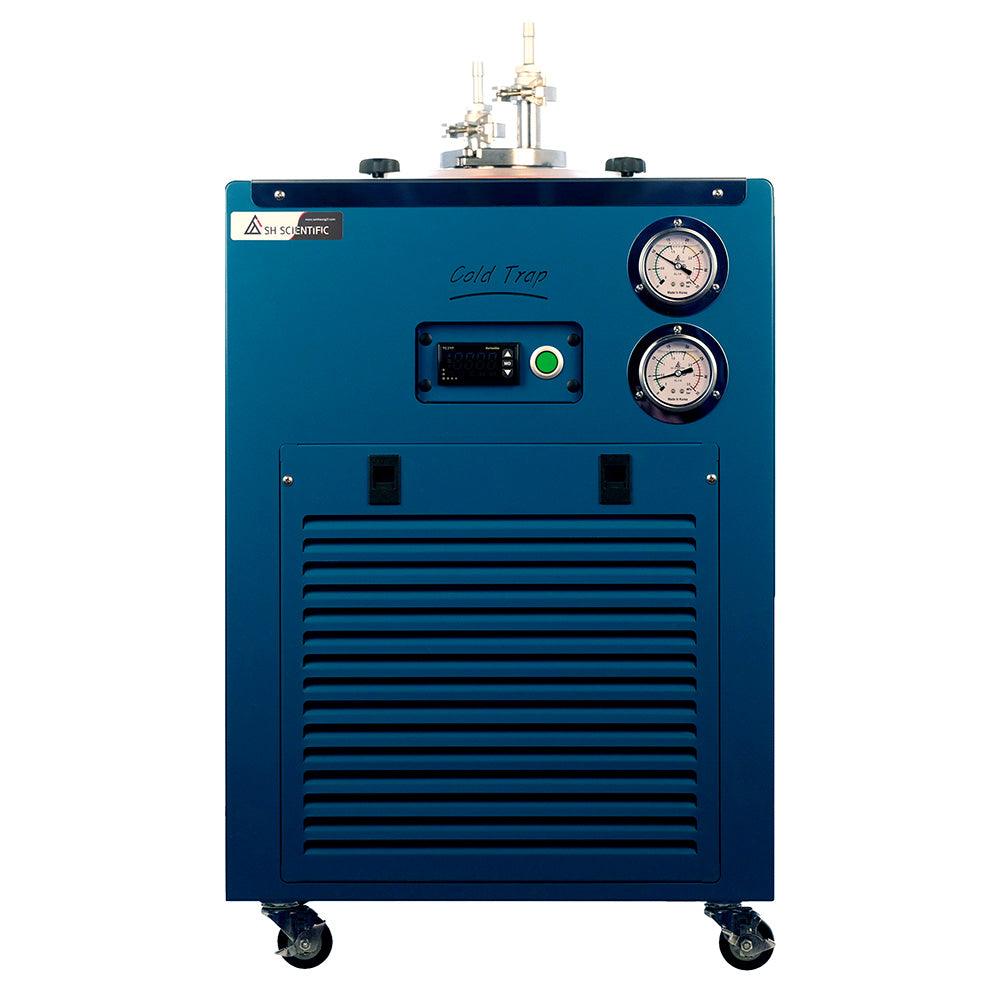

Mechanically refrigerated (electric) cold traps
An electric refrigerated trap uses a compressor to hold a set temperature — commonly -40°C to -85°C depending on the model — with no consumable to refill. You plug it in and walk away, which is why they dominate in labs running long or continuous processes. They cost more upfront than a dewar, but over a year of daily runs they usually pay for themselves in dry-ice savings and labor alone. If your lab runs short path distillation or long vacuum-oven purges regularly, this is the category to look at first.
Cold Trap vs Condenser: Not the Same Job
People sometimes assume a good condenser makes a cold trap redundant. It doesn't. A condenser on a rotovap or distillation head is there to recover product or solvent as part of the process, operating at the working temperature that separation needs. A cold trap sits further downstream and exists only to protect the pump, running as cold as practical to catch whatever the condenser let through. The two work in series: the condenser handles the bulk, and the trap catches the light ends and stray vapor that would otherwise reach the oil. On any deep-vacuum system, you want both.
How to Size a Cold Trap
Three numbers drive the decision: temperature, trapping volume, and connection size.
Temperature vs your solvent
Match the trap temperature to what you are removing. For high-vapor-pressure solvents like ethanol, pentane, or butane, you want a trap comfortably below the solvent's condensation point — a -40°C trap handles ethanol well, while very volatile hydrocarbons benefit from -60°C or colder. As a rule, the trap should be at least 20°C colder than the coldest point you need to condense at, to give real margin.
Trapping volume
The trap has to hold everything it condenses over a run without filling up and pushing liquid toward the pump. A small rotary evaporator stripping a few hundred milliliters needs far less capacity than a distillation run boiling off liters of solvent. Undersize the trap and you will be emptying it mid-run — or worse, flooding the pump. Size the trap volume to the largest single batch you realistically process, with headroom.
Connection and conductance
Trap fittings should match your vacuum plumbing — most lab systems use KF (NW) flanges, typically KF-25 for benchtop work. Just as important, the trap and its ports need enough bore that they don't choke the gas flow (conductance). A trap with a narrow inlet throttles your pumping speed and slows every pump-down. Keep the trap close to the pump inlet and use full-bore fittings.
Matching a Cold Trap to Your Process
Short path and wiped film distillation
These run the deepest vacuum — often 50 to 500 microns — and pull the most volatile fractions, so vapor protection is non-negotiable. Pair your two-stage rotary vane pump with a trap positioned between the receiving flasks and the pump inlet. A dry-ice or refrigerated trap in the -50 to -80°C range keeps light ends out of the oil. Labs scaling into wiped film distillation should plan the trap into the system from the start, not bolt it on later.
Rotary evaporation
A rotary evaporator already has a condenser, but a downstream cold trap still protects the pump from whatever vapor slips past. It is especially worthwhile when you run an oil-sealed pump behind the rotovap rather than a diaphragm pump. A modest refrigerated trap is usually plenty here.
Vacuum oven purging
Vacuum ovens purging residual solvent can outgas for hours or days, and every bit of that vapor heads for the pump. A cold trap inline protects the pump oil across long unattended runs — exactly the scenario where a refrigerated trap that never needs refilling earns its keep.
Maintenance and Common Mistakes
A cold trap only helps if you actually service it. Empty it between runs — a trap left full of condensed solvent will let vapor carry over on the next run and can push liquid into the pump. Keep the seals and O-rings in good shape, because a leaking trap both loses vacuum and lets air in.
Three mistakes account for most trap failures. First, letting the trap run dry or warm mid-process, which lets everything you captured re-evaporate straight into the pump. Second, undersizing the trap so it fills and floods. Third, placing the trap too far from the pump or on undersized tubing, which kills conductance and leaves the pump exposed during the pull-down. Get the placement, temperature, and volume right and the trap disappears into the background — which is the point.
Choosing the Right Cold Trap
The short version: pick a temperature at least 20°C below your condensation target, size the trapping volume to your largest batch, match your KF fittings with full-bore conductance, and place the trap right at the pump inlet. Choose a dry-ice dewar for occasional runs and a mechanically refrigerated trap for daily or continuous production where refilling would be a burden.
